2.8 Daisy Chain Connection
Use one end of daisy chain cable to connect to the Daisy Chain port of Master
KVM switch and connect the other end of daisy chain cable to the Local
Console port of the next Slave KVM switch. Please repeat the connection
procedures for next Slave KVM switch. You can daisy chain up to eight banks in
maximum.

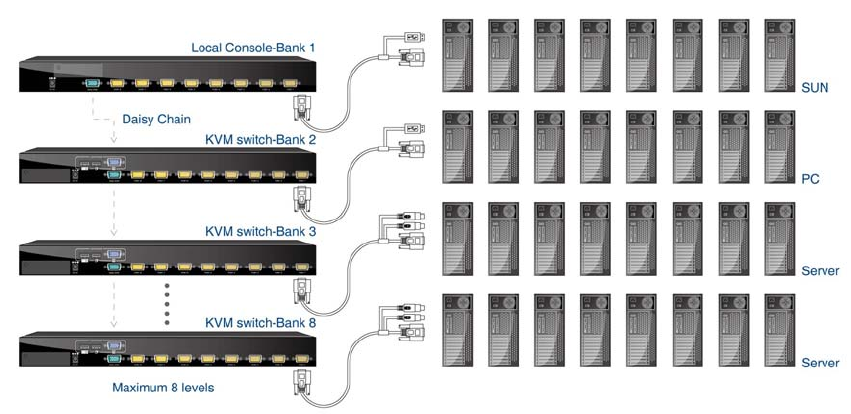

Figure 2-6. Daisy Chain Connection
The console OSD menu will show only the port information of the master KVM
switch. When the master unit starts up, it will query all daisy chained Slave units,
and automatically set up the Bank ID for each Slave unit.
