Specifications

Rotation 360
o
Panning 360
o
NO IR
IR
NO IR
IR
Tilting 90
o
NO IR
Tilting 75
o
IR
Lens Specifications
Lenses are pre-focused at the factory. In the unlikely event that
the optical effect of the dome cover cause a slight defoucsing
of the lens, hold the dome cover over the lens to make a final
adjustment.

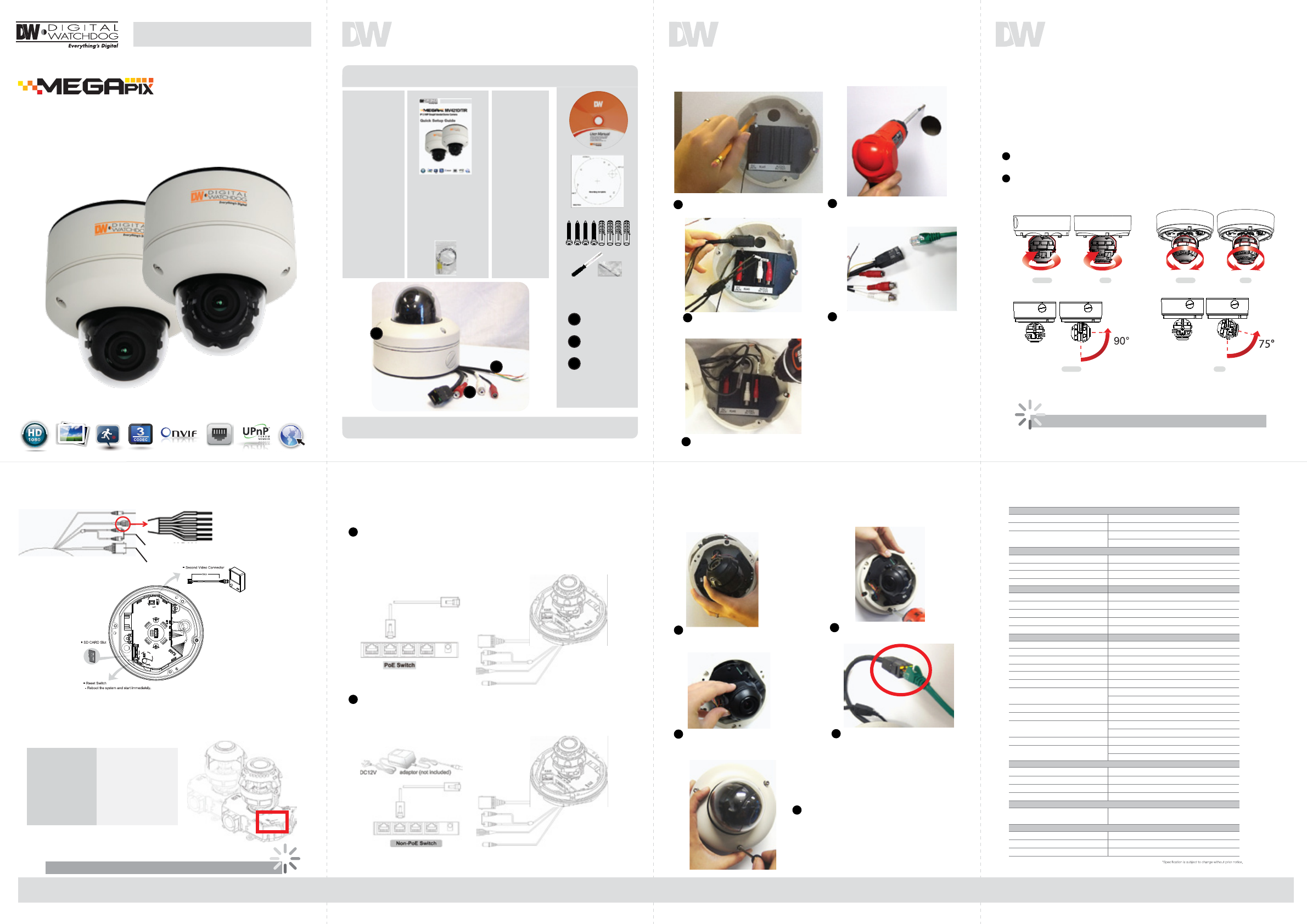

MV421D/TIR
IP 2.1MP Snapit Vandal Dome Camera
Quick Setup Guide
Prepare the Camera and Mounting Surface
SPECIFICATIONS
Network Connection
There are two options.*
Using a Non-PoE Switch
Y-Axis: 90
o
Tilt for MV421D
82
o
Tilt for MV421TIR
X-Axis: 360
o
Pan
1
2
!
Over-rotating the lens will damage the camera lens module
!
Frequent use may cause a System Error
Using a PoE-Enabled Switch
The MEGAPIX Camera is PoE-compliant, allowing transmission of power and data via a single
ethernet cable. Follow the illustrations below to connect the camera to a PoE-enabled switch using
an ethernet cable.
If a PoE-enabled switch is not used, use a power adaptor to connect the MEGAPIX Camera to a
Non-PoE switch.
Use the camera’s mounting template or
your camera to make holes as required.
Pull wires through and make connections.
Use the Cable Base to easily place all UNUSED
cables.
3
Drill holes into the drywall and insert the
drywall mounts.
4
Mount the Camera
The MEGAPIX Camera is designed to be surface mounted on a wall
or ceiling.
Mount the Camera Surface Base to the wall.
5
Snap the camera module into the base by
aligning the red and black markings on the base
and the camer module.
6
Secure the three (3) Assembly Screws.
7
SCheck the LED light. Green light flickers
for booting. Red light turns on when booting
is complete.
9
2
6 8
Adjust the camera’s position by using
the 3-Axis Gimbal.
8
Tighten the four locking screws in
with the L-wrench to secure the cover
dome over the camera.
10
Additional Cabling Connections
Resetting the Camera
Pressing the reset button on the camera’s control board for five (5) seconds will initialize all environmental
variables to factory default. Previous setup for IP default, time, etcetera will be deleted. If a system IP address is
lost, reset the camera back to factory default.The following are the default network settings:
IP Mode DHCP
IP Address 192.168.1.123
Subnet Mask 255.255.255.0
Gateway 192.168.1.123
Command Port 7000
HTTP Port 80
Live Port 7001
SENSOR+ (Green)
SENSOR-
(Yellow)
RELAY-
(Orange)
RELAY+ (Red)
UART+ (Brown)
UART-
(Black)
Power
Audio In/ Out
RJ45 Connector
Thank you for purchasing Digital Watchdog’s Snapit MEAPIX lndoor Dome Camera.
Before installing the camera, please verify your model and read this guide carefully.
12132012
The following items are included with the MV421D/TIR camera
1
2
TROX-T20
L-Wrench
Camea Module
Audio In/ Out
Alarm In/Out
Sensor+ (Green)
Sensor - (Yellow)
Relay - (Orange)
Relay + (Red)
UART + (Brown)
UART - (Black)
1
3
2
3
PREPARATION
TEL: [phone]
www.Digital-Watchdog.com / [e-mail]
Technical Support Hours: Monday-Friday 8:30AM to 8:00PM EST
INSTALLATION
Quick Start
Guide
CD
(Manual &
Software)
Mounting
Template
4 Screws
4 Dry Wall
Anchors
1
2
1
Connect the RJ45 to a CAT5 cable or a
power adaptero.
2
3 5 7
4
Camera Specifications
Second Video
Jack
NETWORK
OPERATIONAL
ENVIRONMENTAL
LENS
Storage Temperature -20
o
C ~ 70
o
C (-4
o
F ~ 158
o
F)
Image Sensor 1/2.8” CMOS Sensor (7% Larger Than 1/3” CMOS Sensor)
Total Pixels 2016 (H) X 1108 (V)
Minimum Scene Illumination F1.6 (30IRE): 0.5 Lux [Color]
F1.6 (30IRE): 0.0 Lux [B&W]
Lens Type Auto Focus
Focal Length 3.5-16mm
Frame Rate Up to 30fps at All Resolutions
Video Compression Type H.264, MPEG4, MJPEG (Super Fine~Low)
IP IPv4, IPv6
Protocol TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP,
RTSP, NTP, UDP, Multicast
LAN 802.3 Compliance 10/100 LAN
Web Viewer OS: Windows XP / Vista / 7, MAC OS
Browser: Internet Explorer, Chrome, Firefox, Safari
Video Management Software NxMS, Pivot
ONVIF Conformance Yes
Streaming Capability Dual-Stream at Different Rates and Resolutions
Power Requirement DC 12V, PoE (IEEE802.3af Class 3)
Power Consumption 7.2W, 600mA / LED ON 8.64W, 720mA
Operating Humidity Less than 90% (Non-Condensing)
Operating Temperature/ Humidity -10
o
C ~ 55
o
C (14
o
F ~ 131
o
F)
Other Certifications CE, FCC, RoHS
Memory Slot Up to 24 Hour to Micro SDHC Card (4GB-32GB)
Card Not Included*
Dimensions 108 X 96.8 mm (4.25 X 3.8 in)
Material Plastic
Weight 0.529 lbs
Mirror & Flip Off, On
Maximum User Access 20 Users
Motion Detection: Sensitivity Low, Middle, High
Privacy Zone Off, On (30 Programmable Zones)
MECHANICAL
ELECTRICAL
3D-Digital Noise Reduction Off, Low, Middle, High
Resolution 1920X1080 (16:9) ~ 320X240 (4:3)
Digital Zoom / Optical Zoom 8X / 4.5X
IR Distance 70ft Range
Alarm Notifications Notifications Via E-mail
