LCD Keypad Installation Guide 1
DMP Keypads
The DMP Thinline™, Aqualite™, and Security Command™ LCD Keypads offer
exible features and functionality in stylish design choices.

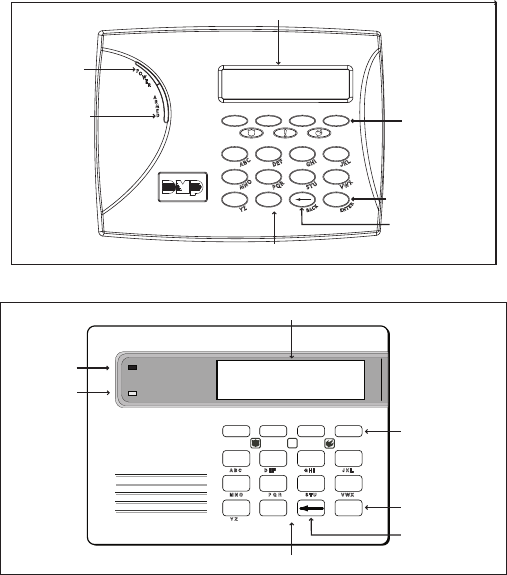

32-Character Display
Armed LED
Po
wer LED
Data Entry Digit keys
COMMAND Key
Back Arrow Key
Select Keys
1 2 3 4
9 0
CMD
5 6 7 8
ABC PRINTING
F R I 2 : 51 AM
Thinline™/Aqualite™ Keypad
�
Security Command™ Keypad
Each keypad provides four 2-button Panic keys, AC power LED, Armed LED,
32-character display, backlit keyboard with easy-to-read lettering and an
internal speaker. The logo on Thinline and Aqualite keypads is also backlit.
The Models 7070/7070A, 7073/7073A, 790/790F, and 793 keypads provide four
fully programmable Class B, Style A protection zones you can program for a
variety of burglary and access control applications.
The Model 7063/7063A, 7073/7073A, and 693/793 keypads provide a built-in
proximity card reader designed to read HID proximity credentials. The Model
7073/7073A and 793 keypads provide a door strike relay and allow Wiegand
input from HID, DMP, or other external card readers.
