Transmitter
A transmitter generates a magnetic field detected by the Falcon F2 receiver. The transmitter
and receiver must have matching regional designation numbers to communicate with each
other and comply with local operating requirements. The transmitter’s regional designation
number is located inside the globe icon ( ) near the serial number. The transmitter must be
paired to the receiver prior to use.
The Falcon F2 wideband transmitter provides pitch readings in as low as 0.1% or 0.1°
increments at level and displays roll in 12 clock positions (CP). The transmitter has a depth
range of up to 30.5 m, data range of up to 38.1 m, and broadcasts in nine bands
encompassing frequencies from 4.5 to 45.0 kHz.

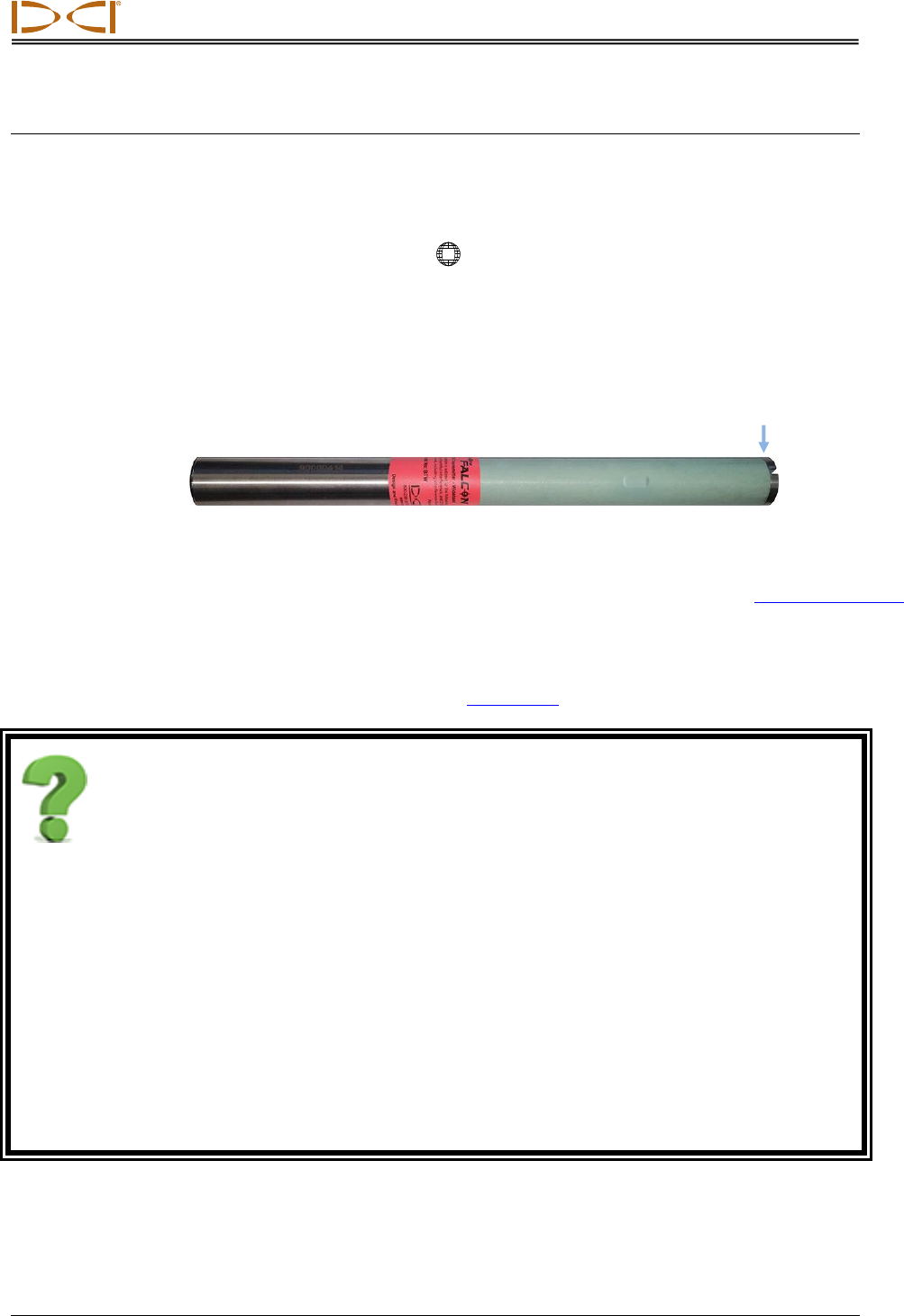

Falcon F2 Dual Wideband Transmitter
Calibration is required prior to first-time use and before using a different
transmitter, receiver, drill head, or transmitter band. Calibration is not
necessary, however, when switching between bands on a transmitter that
are already paired and calibrated.
Calibration and AGR
Page 20
A detailed pitch resolution table is located in Appendix A.
Can I use other DigiTrak transmitters with my Falcon?
No. The technology behind Falcon's use of multiple optimized frequencies requires a DigiTrak
Falcon F2 dual wideband transmitter.
Can I use DigiTrak transmitters rebuilt by other companies?
Falcon F2 transmitter technology is highly unique and cannot be replicated by any third party
vendor. If you think you're getting a great online deal on a substitute Falcon transmitter, you are
being scammed for a device that does not exist. Just saying.
If you purchase a "remanufactured" transmitter, do so with the following considerations: (1) You
must be willing to bet an entire day's work on thermally abused transmitter components that would
likely fail a bench test. (2) You must have a good reason ready for the boss for why DCI customer
service will not provide assistance when your transmitter that is registered to someone else fails on
your job mid-bore. And, (3) you must be willing to risk bodily harm, property damage, and the
potential financial devastation of your company just to save a few bucks on an inferior, potentially
dangerous, recycled device that is a lawsuit waiting to happen. If that works for you, we wish you the
best of luck, and leave you with this advice from DigiMan: "The inconvenience of poor quality long
outlasts the thrill of a good deal."
Battery compartment
Front end cap with temp dot and index slot
