2. The first digit is underlined. Click to select the next digit, or hold briefly to change the
value.
3. Upon selection, the value becomes boxed. Click to scroll through numeric values, then
hold briefly to select. Click to select subsequent values and hold briefly to change.
4. When the target depth is set correctly, select the checkmark to confirm. A checkmark
appears briefly next to the receiver icon and the receiver beeps and returns to the
Locate screen with Target Steering enabled.
If you click past your desired meter value, either click through the maximum value of 30 m or
wait about five seconds to exit without saving and try again.
If you click past 99 cm in the centimeter field, the number in the m field will automatically
increase.
To maintain the most accurate readings on the remote display, never set the target steering
depth more than 1 m from the current depth.
Positioning the Receiver as the Target
Setting a target depth on the receiver activates target steering, and the Locate screen on the
receiver now displays horizontal distance from transmitter to receiver. The remote display on
the drill automatically changes to Target Steering or Remote Steering mode.

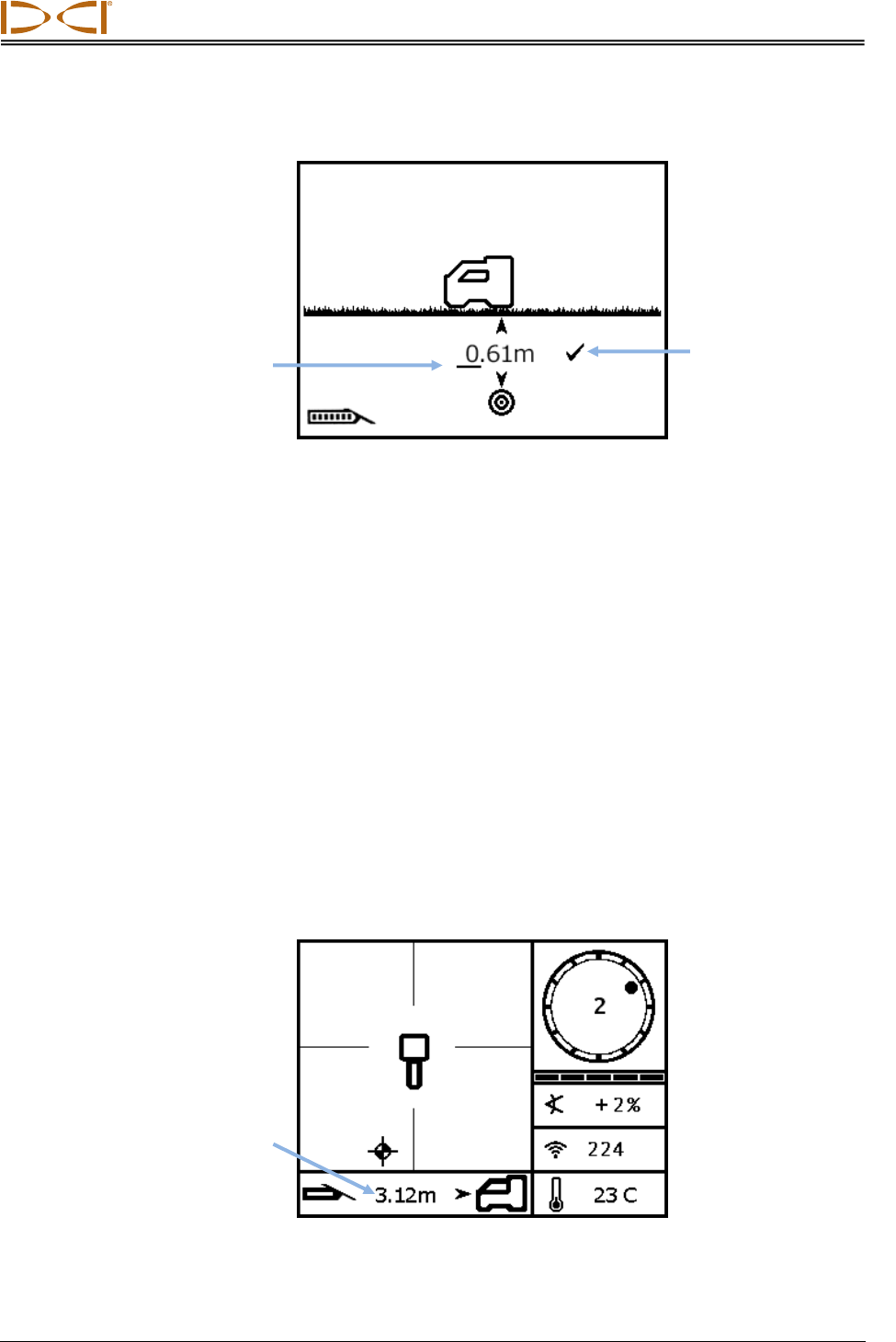

Target Steering Data on the Receiver
Current selection
Select to confirm setting
Horizontal distance from
transmitter to receiver
