Operator’s Manual 45

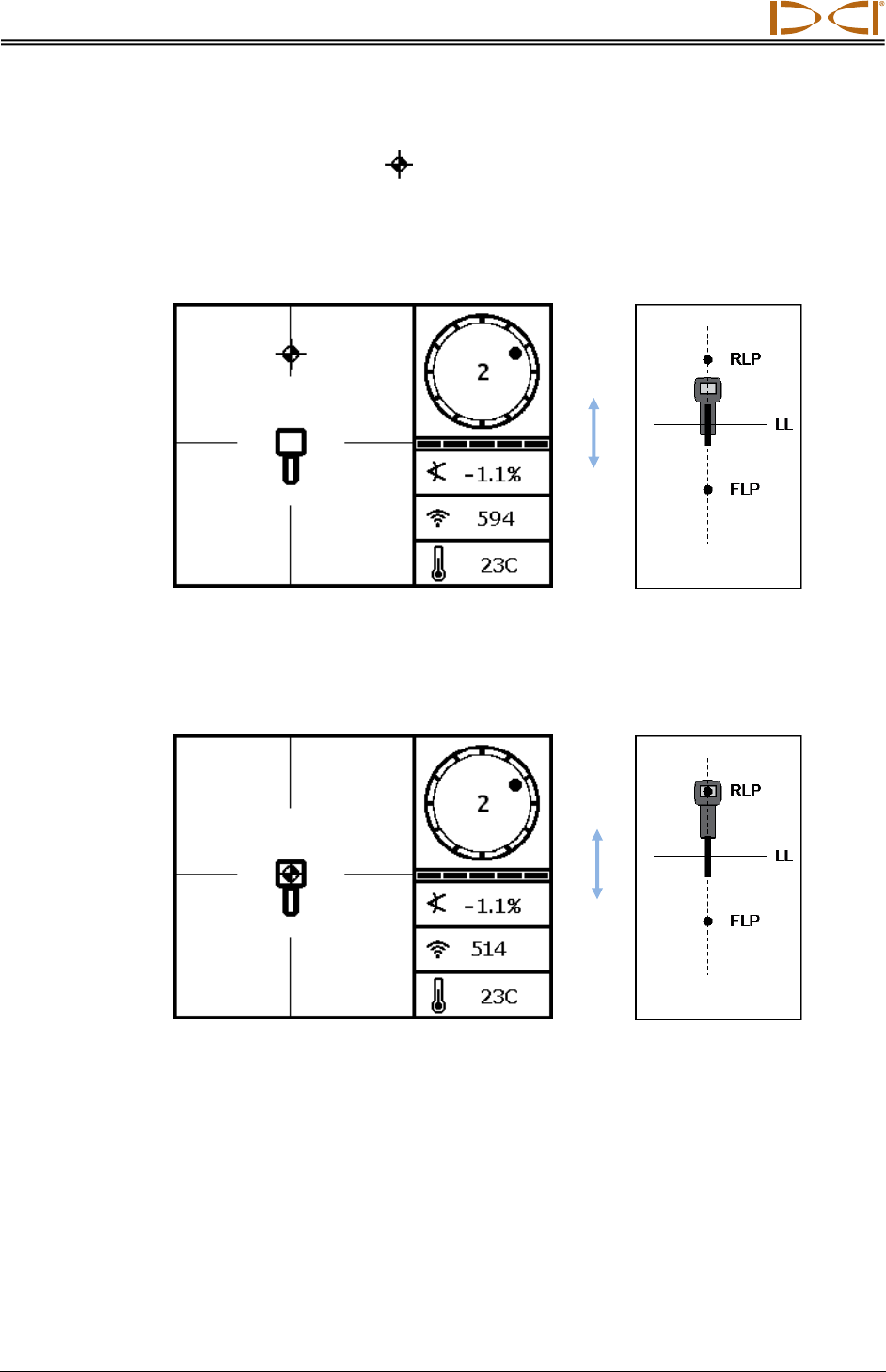

Finding the RLP to Confirm Transmitter Heading and Position
Finding the RLP will allow you to confirm the transmitter’s heading and position. Like the FLP,
the RLP is represented as a ball ( ) on the receiver display.
Continue locating:
11. From the LL, facing toward the drill or last transmitter location, walk forward while
keeping the ball aligned on the vertical crosshairs.
Receiver Locate Screen,
Approaching RLP from LL
Actual Position of Receiver
and Transmitter
12. Position the receiver so the ball is centered in the box (Ball-in-the-Box™).
Receiver Locate Screen at RLP
Actual Position of Receiver
and Transmitter
13. Mark the ground directly below the receiver’s display screen as the RLP. A line between
the RLP and FLP represents the transmitter’s heading.
Drill
rig
Bore
path
Drill
rig
Bore
path
