User's Manual

DIGITAL CONTROL INCORPORATED
DigiTrak Falcon

F2

Operator’s Manual 43
Finding the Locate Line (LL)
7. Continue walking toward the drill rig or the last known transmitter location. Keep the
locating ball on the vertical crosshair and observe that the signal strength is increasing.

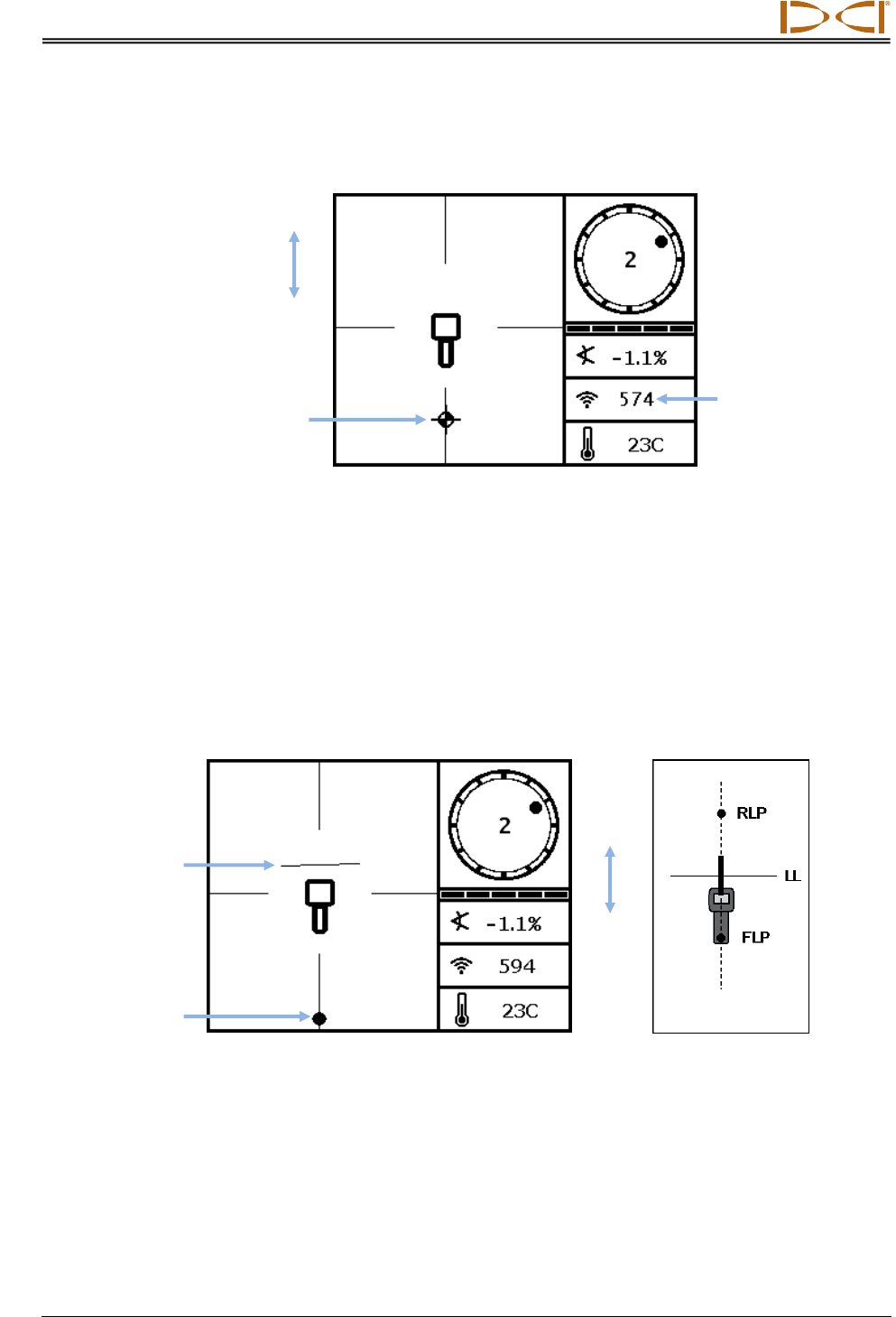

Receiver Locate Screen, Moving Toward LL, FLP Behind
If the signal strength decreases, you may actually have just located the RLP. Position
yourself farther away from and facing the drill to locate the FLP.
8. When the locating ball reaches the bottom of the screen, the locate line appears and the
ball turns solid black to indicate your focus should now be on the LL.
If the locate line does not appear and the ball flips to the top of the screen, hold the
trigger while moving the receiver in a forward/backward direction over where the ball
flips. This action should re-reference the receiver to the transmitter’s signal and bring up
the locate line. If it does not, return to the FLP to re-reference (see step 1).
Receiver Locate Screen, Approaching LL
Actual Position of Receiver
and Transmitter
Do not rely on the alignment of the ball with the vertical crosshair to identify the left/right
position of the transmitter. Accurately locating the front and rear locate points is required
to determine the transmitter’s lateral position (heading) and take accurate depth
readings.
Signal strength
higher than at FLP
Locating ball
moving along
vertical crosshair
Drill
rig
Bore
path
Locate line
Locating ball
Drill
rig
Bore
path
