32 DigiTrak Falcon

F2

Operator’s Manual
When the roll/pitch update meter shows low signal level or data is erratic, hold the trigger for
longer than five seconds to enter Max mode, indicated by a magnifying glass around the pitch
icon: .

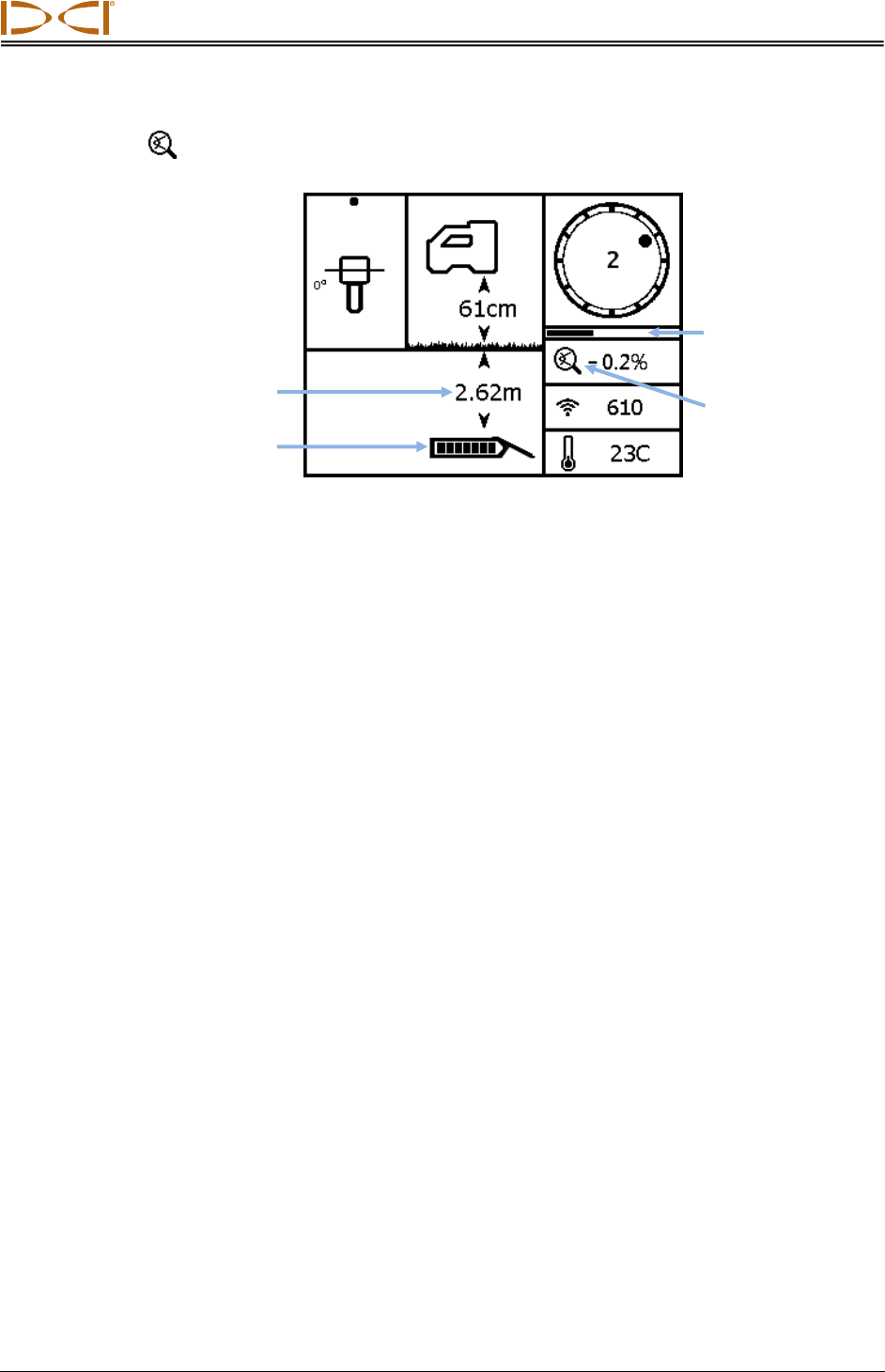

Depth Screen in Max Mode
Max mode replaces the roll/pitch update meter with the Max mode timer. As you hold the
trigger and Max mode gathers data readings, the timer slowly fills up. Greater interference or
deeper bores will require a higher number of readings before roll/pitch data displays, or may
prevent data from displaying altogether. If the timer is full and data is not yet stable, release
the trigger, move to a different location near the drill head, and hold more than five seconds
to restart.
Max mode can only provide accurate data when the drill head is not moving. Always take
three Max readings; all three readings must be identical and stabilize before the Max mode
timer is full.
Max mode icon
Max mode timer
Depth
Tx battery strength
