Depth Screen
Hold the trigger with the receiver at the locate line (LL) to display the
Depth screen.
Locate Points (FLP & RLP)
and Locate Line (LL)
Page 37

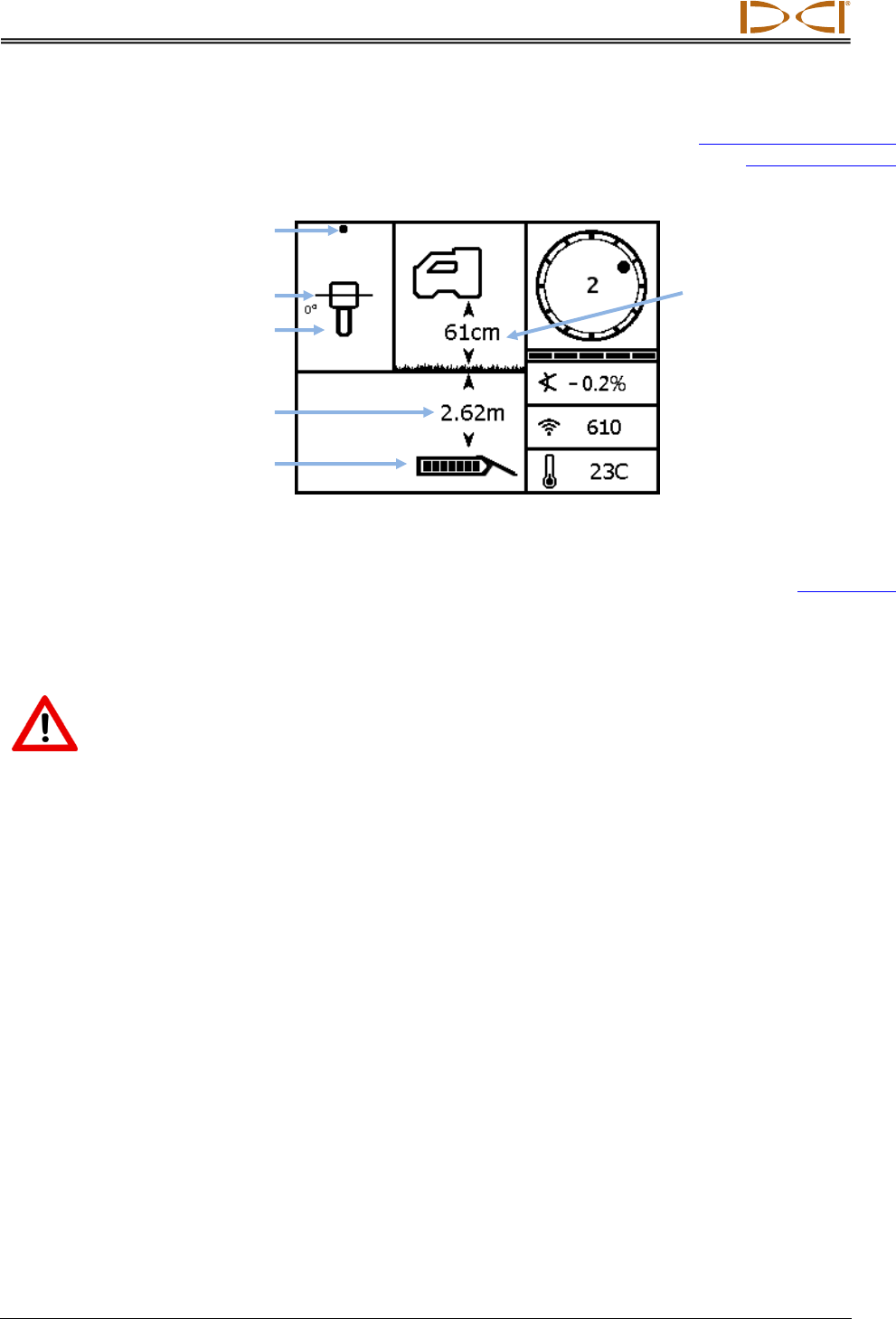

Depth Screen at LL with HAG On
When the HAG setting is disabled, the receiver will be shown on the ground and
must be placed on the ground during depth readings.
HAG function
Page 17
Max Mode Noise Filtering
Warning The drill head must be stationary when taking readings using Max
mode. If the drill head is moving, data readings will not be accurate.
Due to the nature of the extreme depth and/or high-interference
environment where use of Max mode will typically occur, the risk of
obtaining unreliable data is increased. Never rely on data that does not
display quickly and remain stable. Max mode is never a substitute for
prudent operator judgment.
The purpose of Max mode noise filtering is to stabilize erratic roll/pitch data, depths, and
locates when drilling at the very limit of the ability of the transmitter due to extreme depth or
interference, which will vary by jobsite.
Height-Above-Ground
(HAG) setting on
Locate line (LL)
Transmitter depth
Bird's-eye view
Tx battery strength
Locate point
(front or rear)
