Operator’s Manual 29
Locating Screens
The Locate, Depth, and Predicted Depth screens are the primary screens you will use for
locating. The type of depth screen that displays depends on the position of the receiver
relative to the transmitter at the time of the depth reading.
Do I have to know all this? Page 40
Get this down first, then you'll be ready to locate like a professional. If you skip to Locating the
Transmitter and feel like you're missing a little background information, come back here for a
refresher.
For a description of the icons on the Locate screens, see Appendix B.
Locate Screen Shortcuts
The following shortcuts are available from the Locate screen.
Task
Operation
Page
Depth Screen
Hold trigger at locate line (LL)
31
Main Menu
Click trigger
13
Max Mode
Hold trigger at least five seconds
31
Predicted Depth Screen
Hold trigger at forward locate point (FLP)
33
Screen Contrast
Hold trigger with receiver vertical
11
Locate Screen
When the receiver is detecting a signal from a transmitter, the Locate screen provides real-
time data about the transmitter’s location, temperature, pitch, roll, and signal strength.

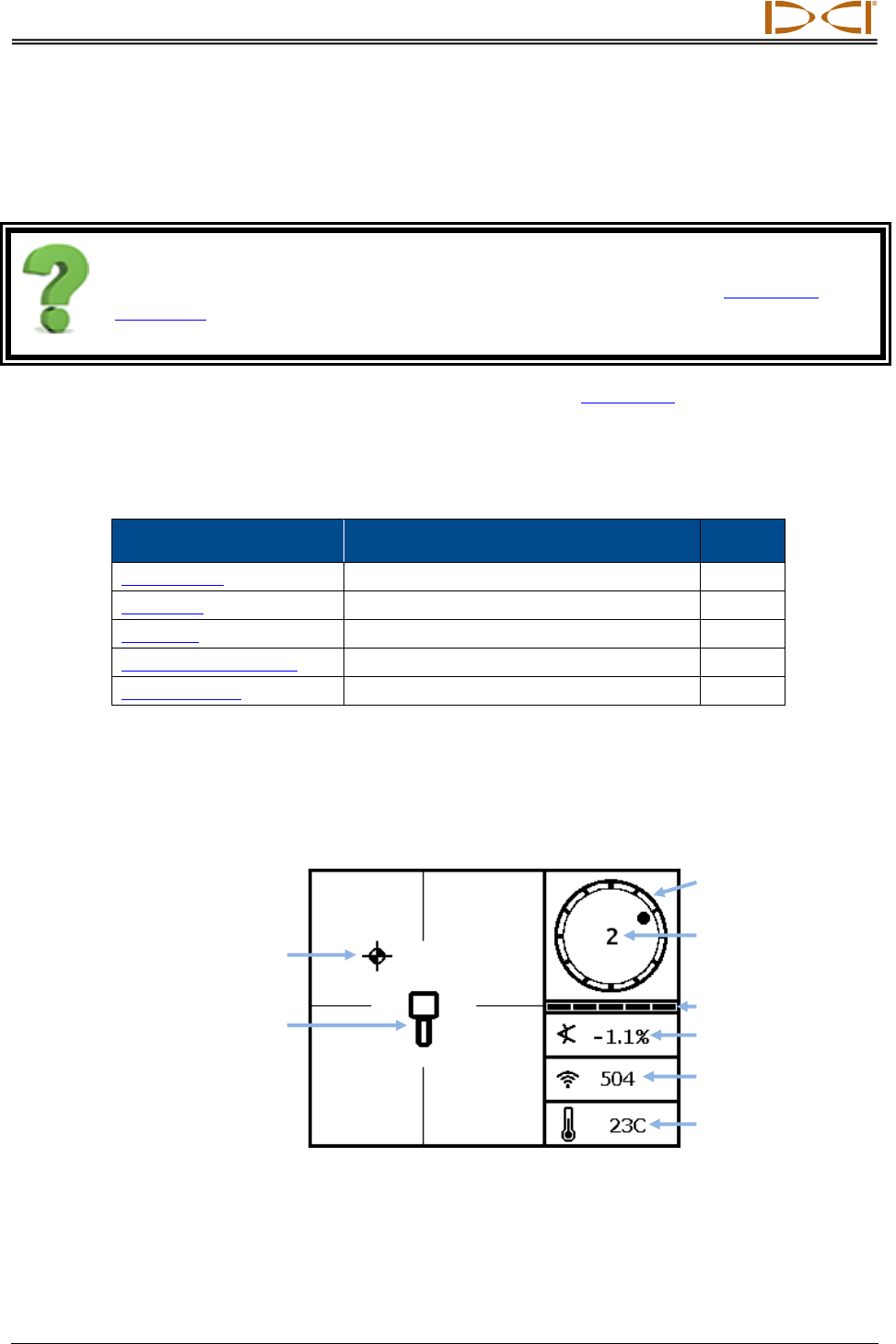

Typical Locate Screen with Transmitter in Range
If the transmitter is on and there is no roll or pitch data, hold the trigger for 10 seconds to
engage Max mode and the data should appear. If not, the transmitter and receiver may not
be paired to the same frequency band.
Locating ball
(FLP or RLP)
Transmitter signal
strength
Roll/pitch update
meter
Roll indicator
Transmitter
temperature
Transmitter pitch
Receiver
Roll value
