To disable roll offset, select Disable Roll Offset from the Roll Offset menu. The receiver
beeps four times as the screen returns to the Locate screen. The roll value on the Locate
screen will now be that of the transmitter, not necessarily the drill head.
Transmitter Options Menu
The Transmitter Options menu lets you select between optimized Up and Down
frequency bands. It also lets you select a DucTrak transmitter, view a frequency
analyzer that shows the current interference on the band, and view information about
a paired transmitter.

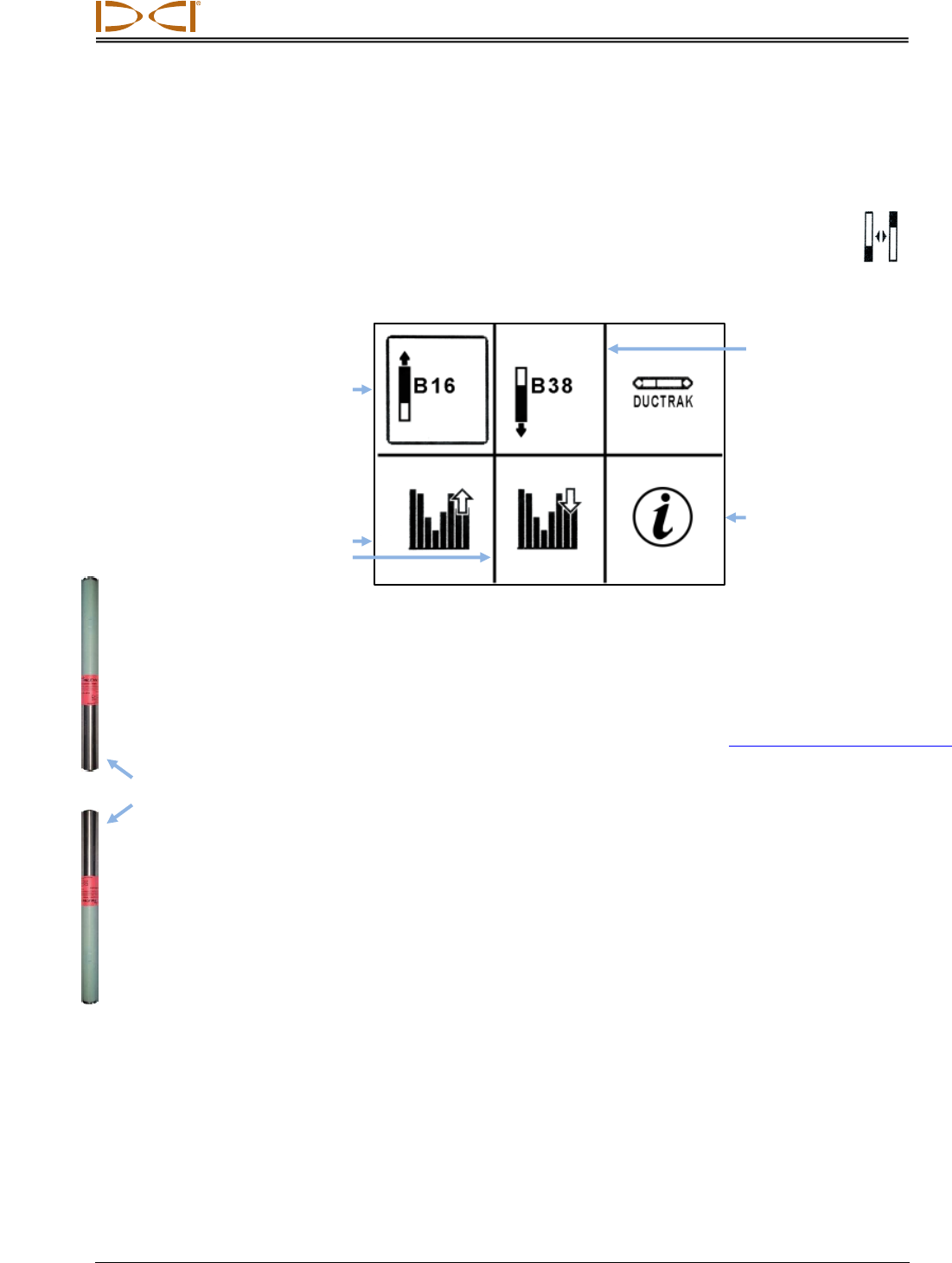

Transmitter Options Menu
Select the Up Frequency Band
Sets the receiver to receive transmitter data on the Up optimized band.
To power on the transmitter in the Up band, insert batteries with
the transmitter pointing up (battery compartment on the bottom).
Installing Batteries / Power On
Page 57
Select the Down Frequency Band
Sets the receiver to receive transmitter data on the Down optimized band.
To power on the transmitter in the Down band, insert batteries with the transmitter pointing
down (battery compartment on top).
DucTrak
Sets the receiver to use a DucTrak transmitter. DucTrak is used for tracking existing ductwork
and piping only, not for drilling. A DucTrak transmitter does not require pairing.
View Transmitter Information
After facing the transmitter and receiver infrared ports toward each other at a distance of
5 cm or less, select this option to view transmitter serial number, region, bands, amperage,
voltage, temperature, maximum temperature, and software version. Viewing this data also
confirms that the IR pairing capability is functional.
Up band
Down band
Frequency analyzer
for Up band;
Down band
Tx information
Battery compartment
