User's Manual

DIGITAL CONTROL INCORPORATED
10 DigiTrak Falcon

F2

Operator’s Manual
Receiver

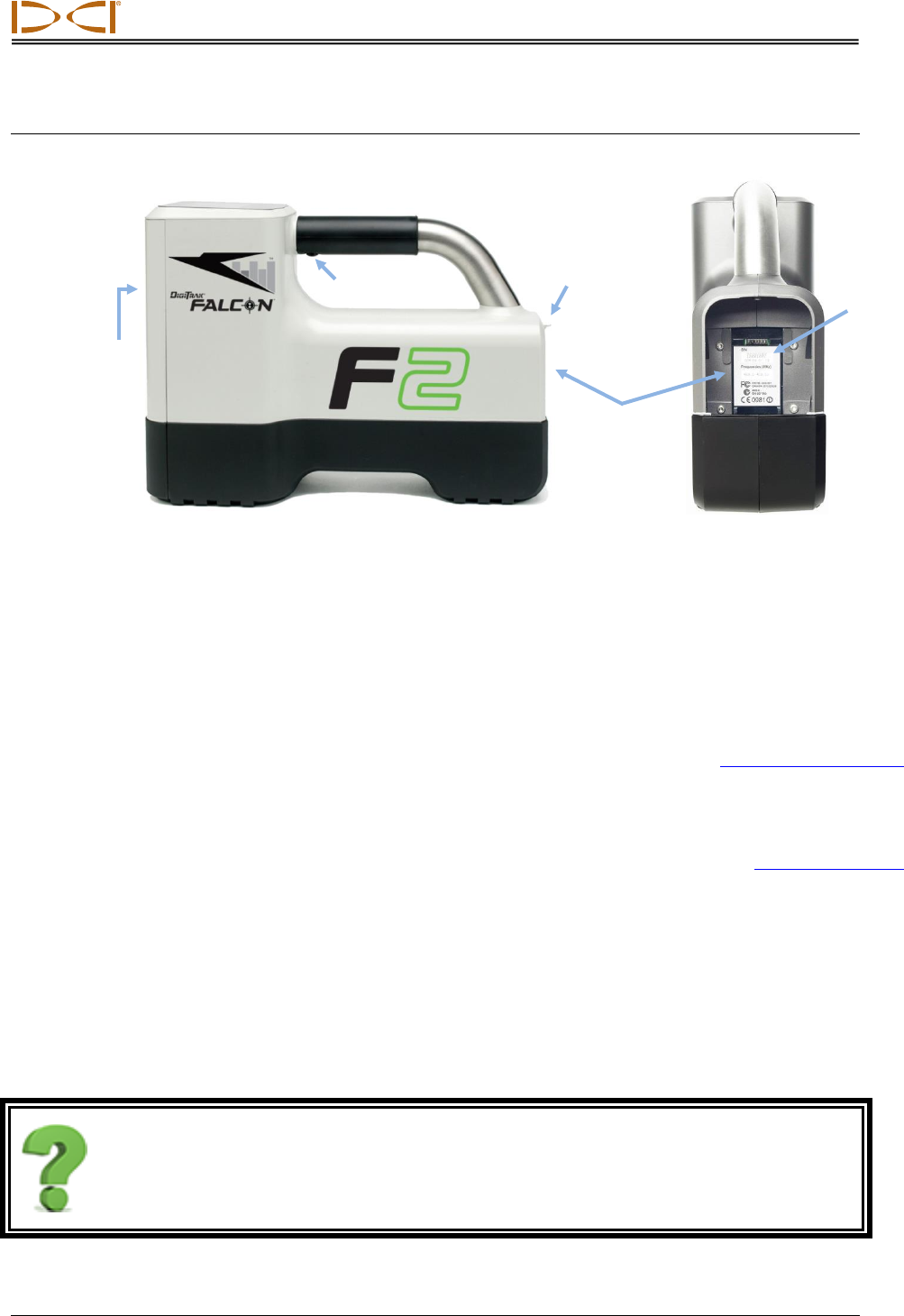

Falcon F2 Receiver – Side and Back Views
General Description
The DigiTrak Falcon
™
F2 receiver (locator) is a handheld unit used for locating and tracking a
DigiTrak Falcon F2 dual wideband transmitter. It converts signals from the transmitter to
display depth, pitch, roll, temperature, and battery level, plus sends this information to the
remote display on the drill rig.
The receiver and transmitter must meet specific operational require-
ments for different global regions. A regional designation number is
located on the receiver’s startup screen. This number must match the
one stamped on the transmitter for proper communication.
Receiver Startup Screen
Figure, Page 11
Prior to use, the receiver must be paired to and calibrated with the
transmitter.
Calibration and AGR
Page 20
Trigger Switch
The Falcon receiver has one trigger switch located under the handle for operating the
system. Use it to turn on the receiver, move through menu options, and change the screen
view for depth readings. Click to cycle through options or hold briefly and release to make a
selection.
I passed the menu option I want; do I have to keep clicking?
After several seconds of inactivity, the display returns to the Locate screen and you can try again.
Trigger switch
Front
Battery
tab
Screen
Battery
compartment
Serial
number
Infrared
window
