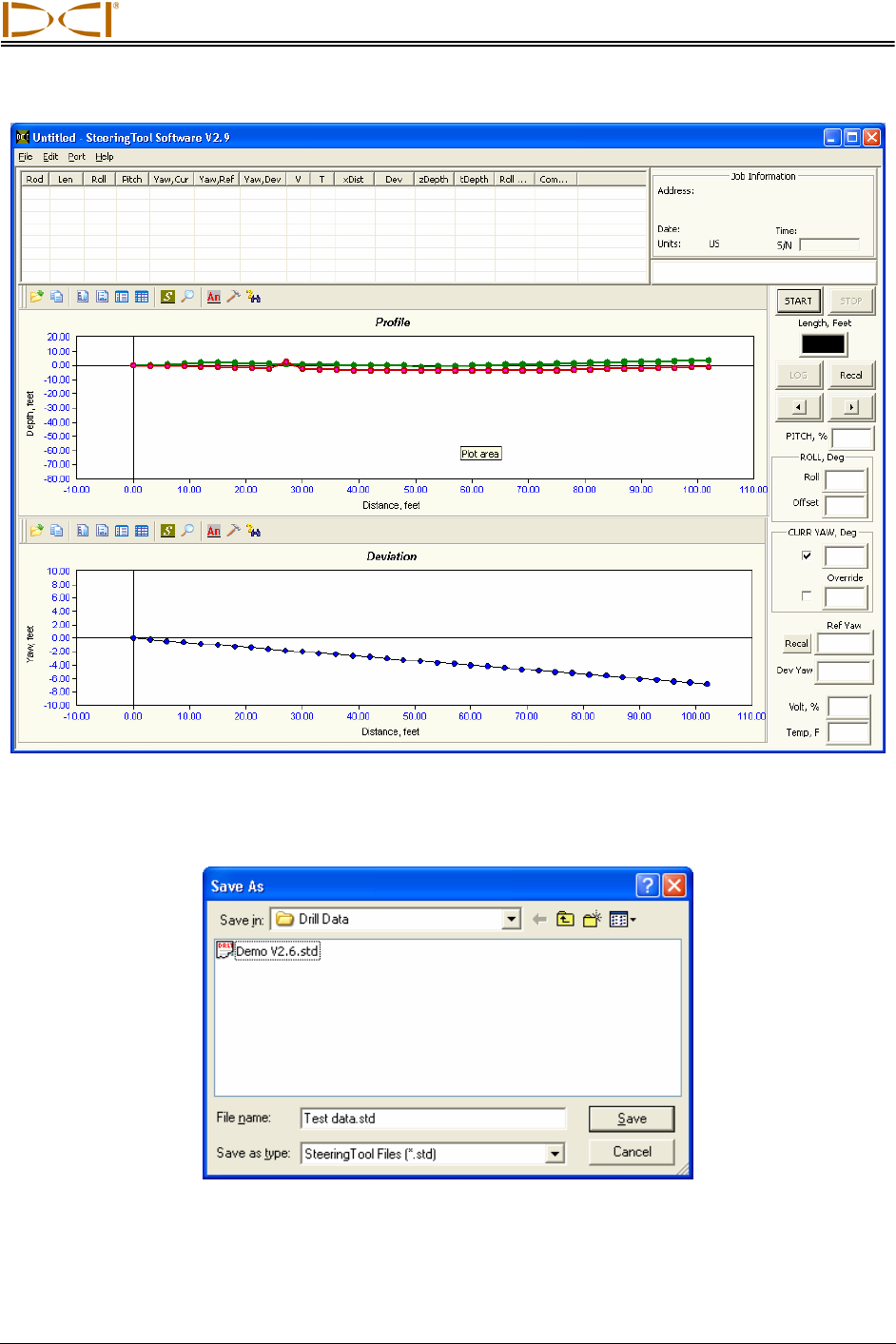

Appearance of Plots After Making Graphic Changes
6. You should save the data after it is in the desired format. To save, select the File | Save menu
command to open the Save As dialog box.
Save As Dialog Box in SST Application
You have now saved the data as a Steering Tool file.
