Changing Drill Data

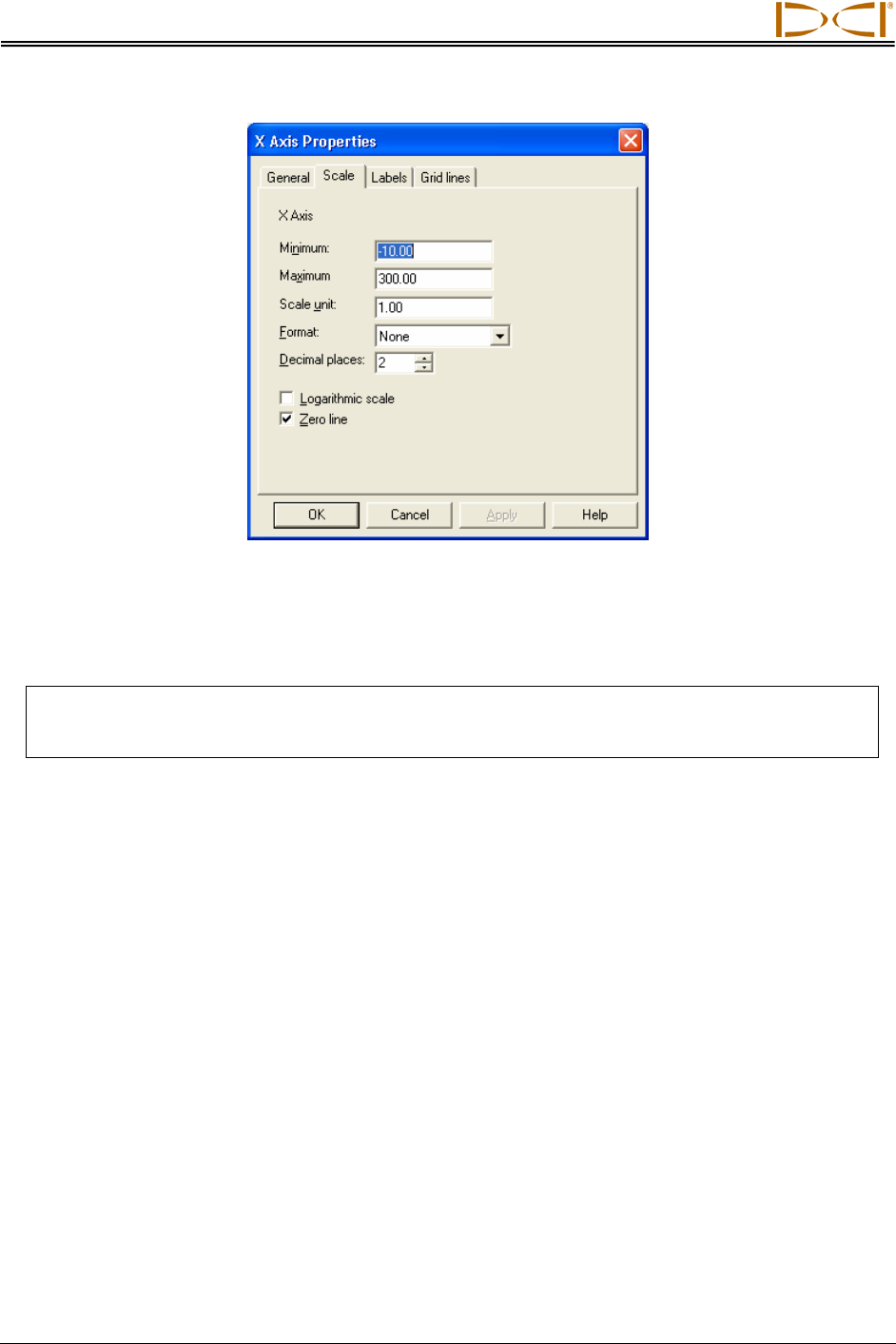

X Axis Properties Dialog Box – Scale Tab
The Scale tab is automatically selected. Make the desired changes in the Minimum and Maximum boxes,
and click Apply. You will see the plots adjust accordingly. Click on OK or on the “X” in the upper right
corner of the Chart FX Properties dialog box to close it.
NOTE: The X Axis properties affect both the Profile and Deviation plots. The Y Axis Properties
affect only one plot. If you open the Chart FX properties from the Profile plot, changes
made in the Y Axis Properties box will only affect the Profile plot.
You may want to change the appearance of the plots to eliminate excess white space. Simple instructions
are given below for common changes you may want to make.
Change Vertical Scale (Move X-Axis Up or Down in Profile Plot)
1. Right mouse click in Profile plot area.
2. Select Properties... from popup menu.
3. Click on Axes tab in Chart FX Properties dialog box.
4. Select Y Axis in upper left field.
5. Click on Details button to open Y Axis Properties dialog box.
6. Under Scale tab (which is automatically selected), in the Minimum box, type in a negative value;
this defines the placement of the x-axis and, therefore, the amount of white space displayed
above and below the x-axis.
7. Type in a value for the Maximum; this represents the amount of white space displayed above the
x-axis.
8. Click on Apply to see the plot shift according to the values you have input.
9. Click on OK to exit dialog box, then on OK again to exit Chart FX dialog box.
