DGP2648_EU08.fm Page -1 Friday, September 29, 2006 2:43 PM Table of Contents Introduction............................................................... 1 Basic Operation ........................................................ 2 Auditory Feedback (Beep Tones) ........................... 3 Keypad Indicator Lights .......................................... 3 Partitioned System ................................................... 5 Area Display............................................................
DGP2648_EU08.fm Page 0 Friday, September 29, 2006 2:43 PM Access Codes ........................................................ System Master Code............................................ User Access Codes.............................................. Area Assignment .................................................. Erasing Access Codes ......................................... Keypad Lock-Out ................................................ 17 17 18 21 22 22 Trouble Display .........................
DGP2648_EU08.fm Page 1 Friday, September 29, 2006 2:43 PM 1.0 Introduction Your security system uses advanced technology which will provide you with reliable security protection and powerful features that are easy to use. Since you will communicate your instructions to the system through your keypad, please read this manual carefully and have your installer explain basic system operation. 1.1 Legend = Indicates a warning. = Indicates a note or reminder.

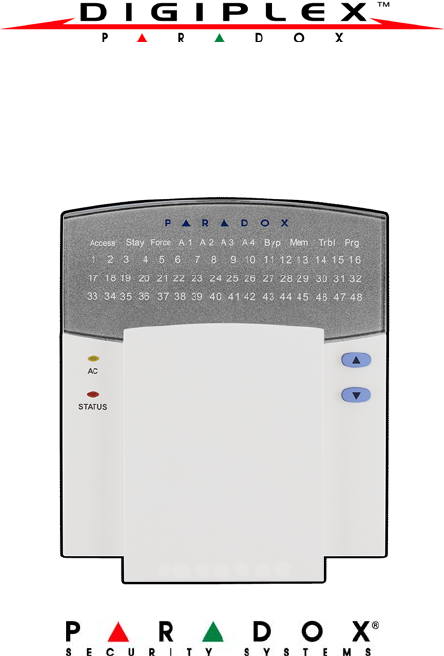

DGP2648_EU08.fm Page 2 Friday, September 29, 2006 2:43 PM 2.0 Basic Operation The system communicates by illuminating the “AC” light, the “Status” light and the various lights on the screen as shown in Figure 1. Figure 1: Keypad Overview Area Lights: (A1, A2, A3 and A4) ON = Area armed OFF = Area disarmed FLASH = Area in alarm Action Lights: (Access, Stay, Force, Mem, Trbl and Prg) Lights will illuminate according to the status of the system.
DGP2648_EU08.fm Page 3 Friday, September 29, 2006 2:43 PM 2.1 Auditory Feedback (Beep Tones) When you enter information on your keypad, it will guide you with beep tones to communicate acceptance or rejection of your entries. Confirmation Beep: When an operation (i.e. arming/disarming) is successfully entered or when the system switches to a new status/ menu, your keypad will emit intermittent beep tones (“BEEP-BEEP-BEEP-BEEP-BEEP”).
DGP2648_EU08.fm Page 4 Friday, September 29, 2006 2:43 PM 2.2.2 Confidential Mode The installer can program your keypad not to display the status of your system by changing the keypad from Normal Mode to Confidential Mode. This occurs when your keypad has been inactive for a period of time defined by your installer. In Confidential Mode all the indicator lights will turn off.
DGP2648_EU08.fm Page 5 Friday, September 29, 2006 2:43 PM 3.0 Partitioned System Your installer can set your keypad to recognize separate protected areas. A separated system is called a partitioned system, which can be useful in situations where shared security systems are more practical. For example, a company that has both an office and a warehouse area, can arm and disarm each area separately while controlling access to each area.
DGP2648_EU08.fm Page 6 Friday, September 29, 2006 2:43 PM In Area Status Display, the following will illuminate for the area selected: • The area lights (A1, A2, A3, and A4) if the associated area is armed. For example, if you have selected area 3 and it is currently armed, A3 will illuminate. • The numerical light(s) representing any open zone(s) in a corresponding area or areas. • The MEM action light if any alarms have occurred. • The TRBL action light if any troubles are occurring.
DGP2648_EU08.fm Page 7 Friday, September 29, 2006 2:43 PM 4.0 Zones Zones are protected spaces within an area, which are monitored by the alarm system. Zones can be protected by devices such as magnetic door contacts and motion detectors. 4.1 Zone Display The numerical lights display the status of the individual zones within a partitioned system. Your keypad can display up to 48 zones which are displayed on numerical lights 1 to 48.
DGP2648_EU08.fm Page 8 Friday, September 29, 2006 2:43 PM 5.0 Arming When the system is armed, it will respond to any breach in the zones according to the way each zone is programmed. For example, if someone opens a window that is armed, the system can trigger an alarm and alert your security company. 5.1 Exit Delay Timer Arming the system will start the Exit Delay Timer. This will provide enough time for you to exit the protected area before the system arms.
DGP2648_EU08.fm Page 9 Friday, September 29, 2006 2:43 PM 5.3 Stay Arming Stay Arming will partially arm your system to permit you to remain in the protected area. For example, you can arm your doors and windows at home without arming the motion detectors so you will be protected while you sleep. Only User Access Codes with the Stay and Instant Arm option enabled can Stay Arm the system. How do I Stay Arm? 1) Enter your [ACCESS CODE]. 2) Press the [STAY] key.
DGP2648_EU08.fm Page 10 Friday, September 29, 2006 2:43 PM How do I Instant Arm? 1) Enter your [ACCESS CODE]. Your keypad will emit a Confirmation Beep. The ACCESS action light will flash. 2) Press the [5] key. If you have access to more than one area, press the number key representing the area you want to Instant Arm or the [0] key for all assigned areas. After the Confirmation Beep, the Exit Delay Timer will begin the countdown to arming. 5.
DGP2648_EU08.fm Page 11 Friday, September 29, 2006 2:43 PM 5.6 One-Touch Keys Your installer can program your system to respond to certain features with the touch of a key. You will then access these features without using your User Access Code by pressing and holding the desired key. To do so, press and hold the following keys. • • • • • • • The [ARM] key to Regular Arm an area. The [DISARM] key to disarm a Stay/Instant armed area. The [STAY] key to Stay Arm an area. The [FORCE] key to Force Arm an area.
DGP2648_EU08.fm Page 12 Friday, September 29, 2006 2:43 PM 5.8 Auto-Arming You can program one or more areas to arm automatically. Ask your installer for details. 5.8.1 Timed Auto-Arming You can set the time that an area will arm itself automatically. How do I set the Auto-Arming timer? 1) Enter your [ACCESS CODE]. Your keypad will emit a Confirmation Beep and the ACCESS action light will flash. 2) Press the [0] key.
DGP2648_EU08.fm Page 13 Friday, September 29, 2006 2:43 PM 5.8.2 No Movement Auto-Arming Your system can send a report to the security company and/or arm the system if there is no activity in the area during a specified period of time. Speak to your installer about this feature. 5.9 Bypass Programming The installer can program certain zones with the bypass option. This will enable you to program the system to bypass certain zones when you arm the protected area.
DGP2648_EU08.fm Page 14 Friday, September 29, 2006 2:43 PM How do I bypass a zone? 1) Enter your [ACCESS CODE]. Your keypad will emit a Confirmation Beep and the ACCESS action light will flash. 2) Press the [BYP] key. The PRG action light will illuminate and the BYP action light will flash. 3) Enter the two-digit number(s) of the zone(s) you want to bypass and the corresponding number(s) will illuminate.
DGP2648_EU08.fm Page 15 Friday, September 29, 2006 2:43 PM 6.0 Disarming When the system is disarmed, the system deactivates the zones so the alarm will not be triggered if zones are breached. Any user can disarm the system unless their code has been assigned the Arm Only option. 24hr. zones/Fire Zones are always active (enabled), therefore will always generate an alarm if triggered. 6.
DGP2648_EU08.fm Page 16 Friday, September 29, 2006 2:43 PM In case of a burglar alarm, leave the premises and call your security company from a safe place. 6.3 Alarm Memory Display Your system will record all the alarms which occurred during the last armed period. If an alarm was triggered in any area assigned to your keypad, the MEM action light will illuminate. How do I view a list of alarms that occurred? When the MEM action light is illuminated: 1) Press the [MEM] key.
DGP2648_EU08.fm Page 17 Friday, September 29, 2006 2:43 PM 7.0 Access Codes Access Codes are codes that will allow you and others to access the system. These codes can be programmed to permit access to all or some features and areas. The installer will program User Access Codes to be four digits, six digits, or variable from one to six digits in length. Each digit can be any value between zero and nine.
DGP2648_EU08.fm Page 18 Friday, September 29, 2006 2:43 PM 5) Enter a [NEW CODE]. The numerical lights for the next numbers in the code will illuminate one at a time as you enter the new code. When you have entered the maximum number of digits, Your keypad will emit a Confirmation Beep. 6) Press the [ENTER] key to save and exit. 7.2 User Access Codes On a DGP-848 system, this keypad can support up to 96 User Access Codes using two-digit code values (02 to 96). Code 01 is a System Master Code.
DGP2648_EU08.fm Page 19 Friday, September 29, 2006 2:43 PM 4) Enter the 2-digit User Number (02 to 96) you wish to program. The ACCESS action light will flash for an unused code. If the code is used, PRG action light and the first number of the code will illuminate. The ACCESS action and area light will turn off. 5) Enter a User Code. If you do not want to change an existing one, press the [U] key until you reach User Options. Your keypad will emit a Half Beep when it switches to User Options.
DGP2648_EU08.fm Page 20 Friday, September 29, 2006 2:43 PM Options on the User Access Codes that activate access to features. Press option ON/OFF [1] [2] Option Description Master Feature OFF OFF (default) Master feature disabled. ON OFF Master feature enabled. Modifies User Code only. ON ON Full Master feature enabled. Create or modify other User Codes, User Options, and Area Assignment according to its own User Options and Area Assignment.
DGP2648_EU08.fm Page 21 Friday, September 29, 2006 2:43 PM Press option ON/OFF Option Description [6] Stay and Instant Arm OFF (default) Stay and Instant Arm feature disabled. ON Stay and Instant Arm feature enabled. Can Stay or Instant Arm the system. [7] Force Arm Feature OFF (default) Force Arm feature disabled. ON Force Arm feature enabled. [8] Area Access OFF (default) User Access Code obeys the keypad’s area assignment in a partitioned system.
DGP2648_EU08.fm Page 22 Friday, September 29, 2006 2:43 PM assigned. When entering User Programming, the Area LEDs will illuminate to show you which areas you have access to. When you begin programming, the numerical LEDs 1 to 4 will illuminate and correspond to areas assigned to LEDs A1 to A4 respectively.
DGP2648_EU08.fm Page 23 Friday, September 29, 2006 2:43 PM 8.0 Trouble Display When your system experiences problems or is tampered with, the TRBL action light will illuminate. Most of the trouble conditions will be programmed by your installer to be reported directly to your security company (if connected). Your keypad will only display troubles, which occur in the area(s) to which the keypad has been assigned. Potential troubles have been sorted into eight groups.
DGP2648_EU08.fm Page 24 Friday, September 29, 2006 2:43 PM 8.0.1 Group [1]: System Trouble [1]: AC Failure This means that your system is running on the backup battery. The AC light on your keypad will be turned off during a power failure. If this trouble occurs when your establishment is not experiencing a power failure, call your security company for repairs. Trouble [2]: Battery Trouble This means the backup battery is disconnected or needs to be recharged or replaced.
DGP2648_EU08.fm Page 25 Friday, September 29, 2006 2:43 PM 8.0.4 Group [6]: Zone Low Battery If a wireless device's battery needs to be replaced, the numerical symbols for the zone that it is assigned to will be illuminated. Also, the yellow light on the device will flash to indicate this trouble. 8.0.5 Group [7]: Zone Fault A smoke detector is experiencing a wiring problem, needs to be cleaned or a wireless device is no longer communicating with its receiver. 8.0.
DGP2648_EU08.fm Page 26 Friday, September 29, 2006 2:43 PM 9.0 Additional Features 9.1 Programmable Outputs (PGMs) Your system includes two or more programmable outputs (PGMs), which can be programmed by your installer. A PGM triggers when a predetermined event or series of events occurs in your system. The PGMs can be programmed to reset smoke alarms, turn on light switches, open or close garage doors and much more. Ask your installer about this useful feature. 9.
DGP2648_EU08.fm Page 27 Friday, September 29, 2006 2:43 PM be programmed to be either silent or audible according to your preference. 9.3 Programming Chime Zones You can program your keypad to emit a rapid, intermittent beep whenever designated zones are opened or only when opened between certain hours. These zones are referred to as Chime Zones. If you have several keypads, they must each be programmed separately. Your installer can program your chimed zones to also beep upon closure. 9.3.
DGP2648_EU08.fm Page 28 Friday, September 29, 2006 2:43 PM 9.3.2 Setting a Chime Zone Time Period How do I program all the keypad’s Chimed Zones to beep only when they open between specific hours? 1) Enter your [ACCESS CODE]. Your keypad will emit a Confirmation Beep. The ACCESS action light will flash. 2) Press the [9] key to enter the Chiming Menu. Your keypad will emit a Confirmation Beep. The PRG action light and area action light(s) will flash. 3) Press the [2] key.
DGP2648_EU08.fm Page 29 Friday, September 29, 2006 2:43 PM 9.4 Programming the Time How do I program the time? 1) Enter your [ACCESS CODE]. 2) Press the [TRBL] key. 3) Press the [8] key. 4) Enter the hour and minutes according to the 24-hour clock (i.e. 9AM is 09:00 and 9PM is 21:00). 5) Enter the correct date according to yyyy/mm/dd. 6) Press [CLEAR].
DGP2648_EU08.fm Page 30 Friday, September 29, 2006 2:43 PM 10.0 Quick Function Keys You will only need to use the Quick Function keys upon your installer or security company's request. Only the System Master Code or User Access Codes with the Master feature enabled will be able to access these functions. How do I Access the Quick Function keys? 1) Enter your [SYSTEM MASTER CODE] or [ACCESS CODE] with Master feature. 2) Press the [0] key.
DGP2648_EU08.fm Page 31 Friday, September 29, 2006 2:43 PM 11.0 Fire and Burglar Alarms 11.1 Standard Fire Zone During a fire alarm, the bell/siren will emit an intermittent sound (BEEP-BEEP-BEEP) until silenced or reset. If the zone is a standard Fire Zone, the system can immediately send an alert to your security company. How do I disarm the system if it was accidentally triggered? 1) Enter your [ACCESS CODE]. 2) Call your security company quickly to advise them of the false alarm.
DGP2648_EU08.
DGP2648_EU08.fm Page 33 Friday, September 29, 2006 2:43 PM What do I do if the fire alarm is set off accidentally? 1) Press the [CLEAR] key within 30 seconds of the alarm. 2) Clear the problem from the area. 3) If problem remains, the alarm will sound again. Press the [CLEAR] key again. These steps will instruct the system to delay reporting the alert to the security company. The Fire Zone may reset itself once the smoke has cleared.
DGP2648_EU08.fm Page 34 Friday, September 29, 2006 2:43 PM 11.4 Minimizing Home Fire Hazards How can you avoid the four most common causes of fires at home? 1) Never leave cooking food unattended. Cooking fires often result from unattended cooking and human error, rather than mechanical failure. 2) Stay alert when smoking. Careless smoking is the leading cause of fire deaths. Smoke detectors and smolder-resistant bedding and upholstered furniture are significant fire deterrents.
DGP2648_EU08.fm Page 35 Friday, September 29, 2006 2:43 PM 12.0 Testing and Maintenance 12.1 Burglar Alarm Testing This test requires two people. One person will watch the keypad while the other person walks around and opens the zones (i.e. open the doors and windows that are protected). The numerical lights for the opened zones will illuminate when opened (or breached). If a zone does not register, contact your installer.
DGP2648_EU08.fm Page 36 Friday, September 29, 2006 2:43 PM How do I conduct the system test? 1) Call the security company to advise them that you are testing the system. 2) Enter your [ACCESS CODE]. 3) Press the [8] key. The system will test all its connections and can send a report to your security company. If the system detects a problem, the TRBL action light will illuminate (see section 8.0 on page 23). Call your installer for repairs.
DGP2648_EU08.fm Page 37 Friday, September 29, 2006 2:43 PM Warranty Paradox Security Systems Ltd. (“Seller”) warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
