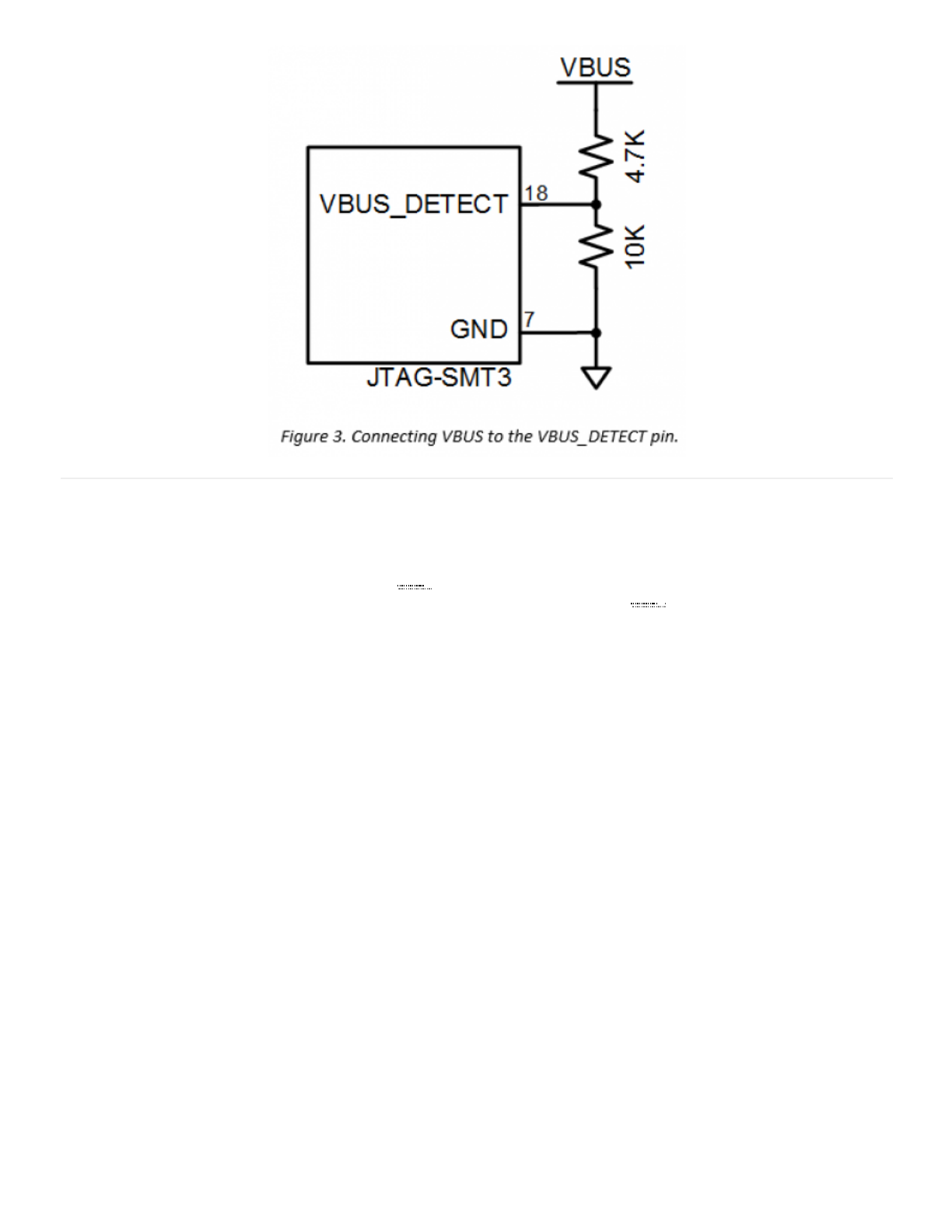

Figure 4 demonstrates how to connect the JTAG-SMT3-NC () to Xilinx’s Zynq-7000 silicon. Please note that VCCO_0 and VCCO_MIO1
may be powered by the same supply or by different supplies. The PS_SRST_B pin of the SMT3-NC () is driven by an open drain buffer and
therefore an external open drain buffer is not required to add an optional reset button.
Application Examples
Example 1: Interfacing a Zynq-7000
