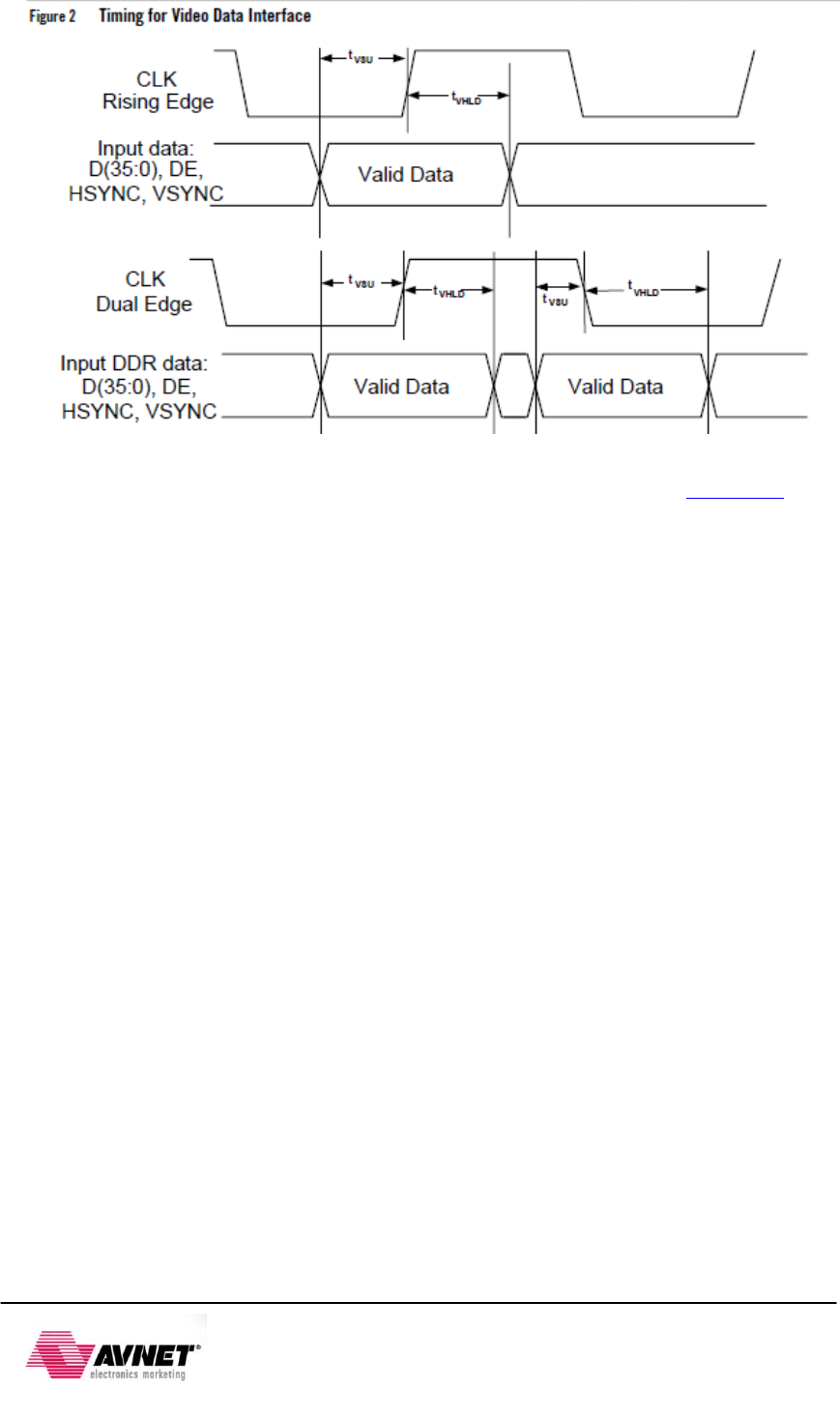

Figure 9 - HDMI Video Interface Timing
The HDMI transmitter connects externally via a HDMI Type A connector, J9, TE 1903015-1.
Circuit protection for the HDMI interface is provided by a Tyco Electronics SESD0802Q4UG.
