Reports
10-9
6700-A2-GY31-70
July 1999
Only the information valid for a particular device is displayed. See
Configuring
Network Elements
in Chapter 4,
Configuration
, for additional information.

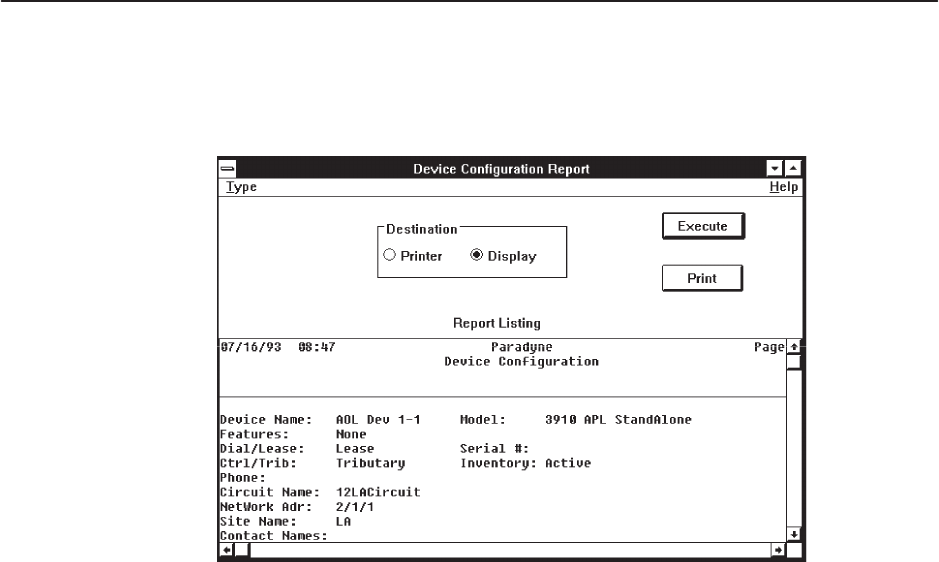

The fields for the device section of the Device Configuration Report include some
of the following, depending on the device type selected:
Device Name: The device’s name.
Model: The device’s model number.
Features: Any additional device features, for example, TDM.
Dial/Lease: The device’s configuration, either Dial or Leased-line mode.
Serial #: The device’s serial number.
Ctrl/Trib: Valid entries are the following:
— Control indicating the devices can issue tests and commands to other
devices on the same circuit in the network.
— Tributary indicating the device receives control data from a control
device and NMS.
— Extended Control indicating the device is a tributary that performs
control-type functions.
Inventory: The device’s current status. Valid entries are the following:
— Active indicating installed and in use.
— Inactive indicating installed and not in use.
— Inventory indicating not installed.
Phone: The device’s telephone number.
Circuit Name: The name of the circuit that the device is on.
