26 DC-100 Operation Manual

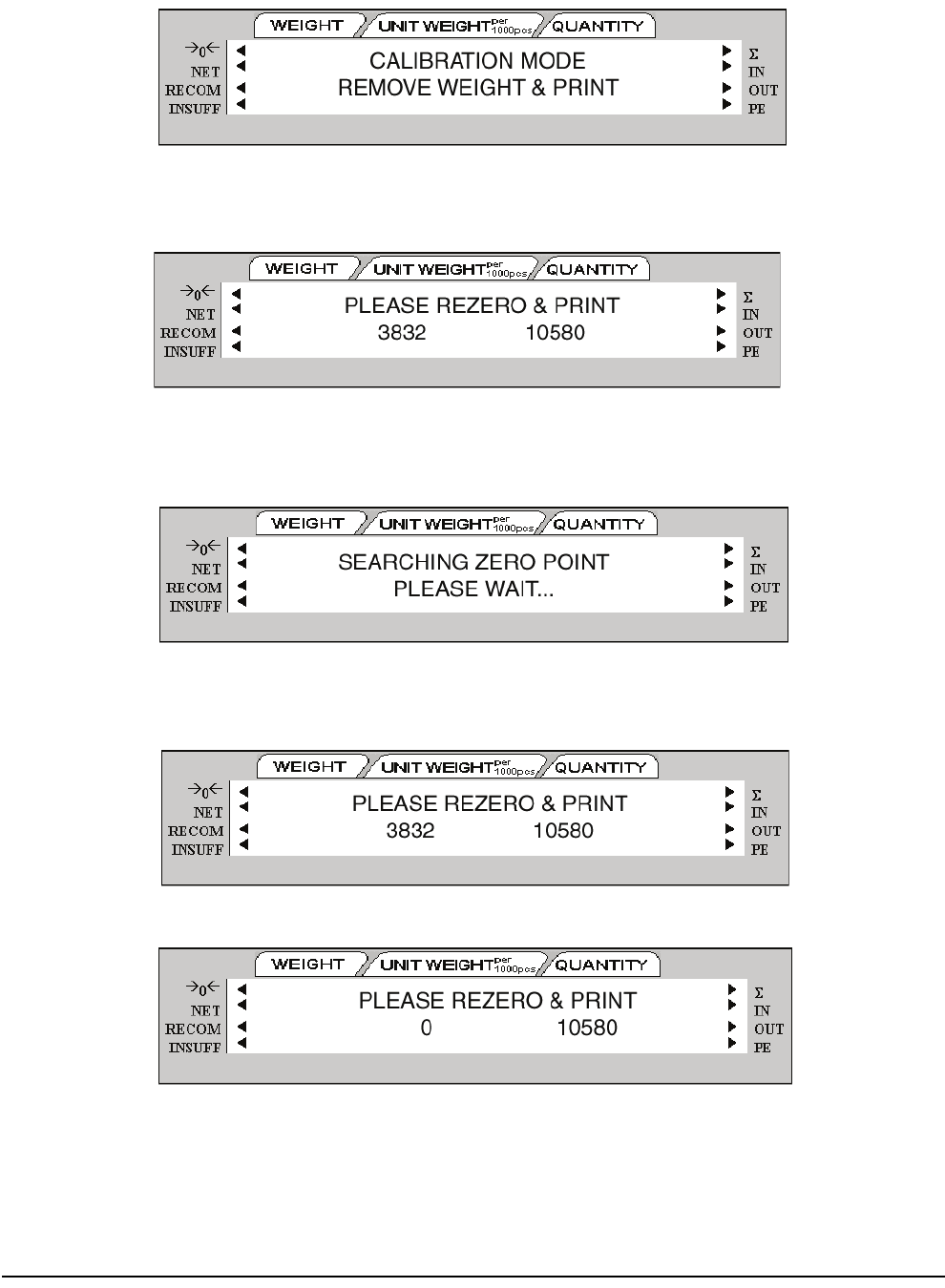

4. The scale display confirms that you are in the Calibration Mode.
5. Next, press the * REPRINT key to enter the zero setting mode.
6. Choose which scale platform you are calibrating. The scale defaults to platform A. To choose another
scale platform, press the SCALE key until the platform you want to calibrate is displayed.
7. Make sure that nothing is on the scale platform and press the CODE key to have the scale automatically
search for the zero point.
8. The scale displays the zero point in the quantity window. It should be a value between 9000 and 11000.
If the scale does not catch that range, you will need to call your local DIGI dealer or call us at
1-715-736-0002 for service assistance.
9. Press the REZERO key to clear the Internal Count shown in the weight window.
