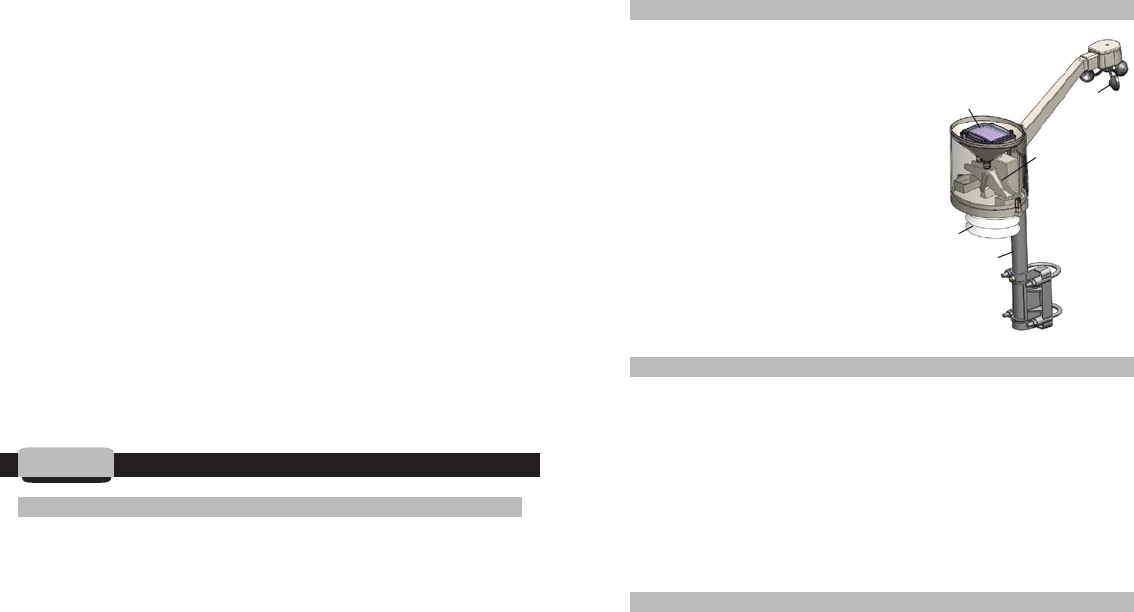

1.2 Parts Identification

1.PVM(photovoltaicmodule)harnessestheenergyoflight

and generates the electricity to power the unit day and

night in any weather condition

2. Self-emptying, tipping bucket rain gauge

3. Weather sensor shield to protect the

temperature sensors

4. Wind sensor

5.12”mountinggalvanizedsteelcolumn

6. 1 1/2” mounting bracket

with two clamps

1.3 System Components

To properly install the LEIT WWS or LEIT WWSE weather stations, the

following components will be needed:

1. Weather station unit: LEIT WWS or LEIT WWSE ambient light (solar)

powered wireless weather station

2. Mounting connection: 1” x 12” mounting column and integrated clamp with

two screws (included)

3. 1 1/2” mounting column with a recommended height with a minimum of

8 ft (2.4 m) (not included)

1.4 Tools and Supply Requirements

1. Philips screwdriver (#2) if using the mounting column plastic attachment

and 7/16” wrench or socket to tighten the U clamp to the 1 1/2” pipe

2. Concrete: approximately four to five 60 lb (27 kg) cement bags

Sensor Specifications:

• Humidityrangeandresolution:1to99%

° Relative humidity accuracy: +/- 2%

• Temperatureresolutionandaccuracy:-40°Fto+170°F(-40°Fto+77°C)

+/- 1% resistance tolerance

• Windspeedresolutionandaccuracy:Minimumspeed0MPH(KPH)max

speed 30 MPH (49 KPH) +/- 1%

• Rainfallresolutionandaccuracy:.01inchesaccuracy+/-2%@2”(51mm)

per hour

Dimension and Connections:

• Weatherstationsize:W6.07”xH9.5”xD14.5”(W154mmxH241mmx

D 368 mm)

• Raincollectorsize:W5.13”xH4.09”(W130mmxH104mm)

[16.5 sq. in. (41.9 sq. cm)]

• Mountingconnection:1”x12”mountingcolumnandintegratedclampwith

twoscrewsformountingonto11/2”galvanizedpipemountingcolumn

[recommended height; minimum 8 ft. (2.4 m)]

1. System

1.1 Box Contents

1. Weather sensor model LEIT WWS with wind sensor or LEIT WWSE without

wind sensor

2.12”(30cm)mountinggalvanizedsteelcolumnusedwithmountingbracket

3. Two clamps

4. 1 1/2” mounting bracket
