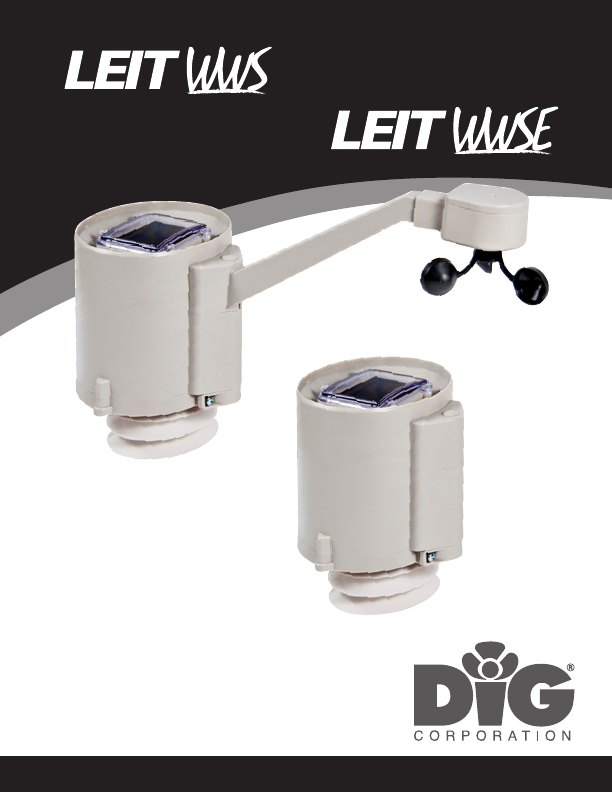

and Ambient Light Powered Wireless Weather Station OPERATING INSTRUCTIONS English 1
Table of Contents A. Introduction… ………………………………………………………………… 3 B. About the LEIT WWS and LEIT WWSE Weather Stations… ……………………… 3 C. Unit Identification… …………………………………………………………… 4 D. Technical Assistance… ………………………………………………………… 4 E. Copyright and Compliance… …………………………………………………… 5 A.
C. Unit Identification E. Copyright and Compliance INSTRUMENTS: LEIT WWS includes: anemometer, thermometer, hygrometer, rain collector and solar radiation meter to monitor humidity level, temperature, wind speed, solar radiation and rainfall. LEIT WWSE includes: thermometer, hygrometer, rain collector and solar radiation meter to monitor humidity level, temperature, solar radiation and rainfall. Copyright 2010 DIG Corporation. All rights reserved.
and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult DIG technician for help. WARNING: the user should make no field changes or modifications to the LEIT WWS or LEIT WWSE weather stations.
Sensor Specifications: • Humidity range and resolution: 1 to 99% ° Relative humidity accuracy: +/- 2% • Temperature resolution and accuracy: -40° F to +170° F (-40° F to +77° C) +/- 1% resistance tolerance • Wind speed resolution and accuracy: Minimum speed 0 MPH (KPH) max speed 30 MPH (49 KPH) +/- 1% • Rainfall resolution and accuracy: .01 inches accuracy +/- 2% @ 2” (51 mm) per hour Dimension and Connections: 1.2 Parts Identification 1.
2. Installation 3. NOTE: Install the LEIT WWS and/or LEIT WWSE at a minimum of 25 ft (8 m) from the nearest LEIT-2ET controller. Install the weather station 8-12 ft. (2.4 m - 3.7 m) above the ground using a 1 1/2” pipe mounting column. Set the mounting column in a 15” x 15” x 12” (38 x 38 x 30 cm) frame and pour in the four to five 60 lb (27 kg) bags of cement.
5. Warranty DIG CORPORATION warrants these products to be free from defects in material and workmanship for a period of three years from date of purchase. This warranty does not cover damage resulting from accident, misuse, neglect, modification or improper installation. This warranty shall extend only to the original purchaser of the product for use by the purchaser.
