Rear Panel
Rear Panel

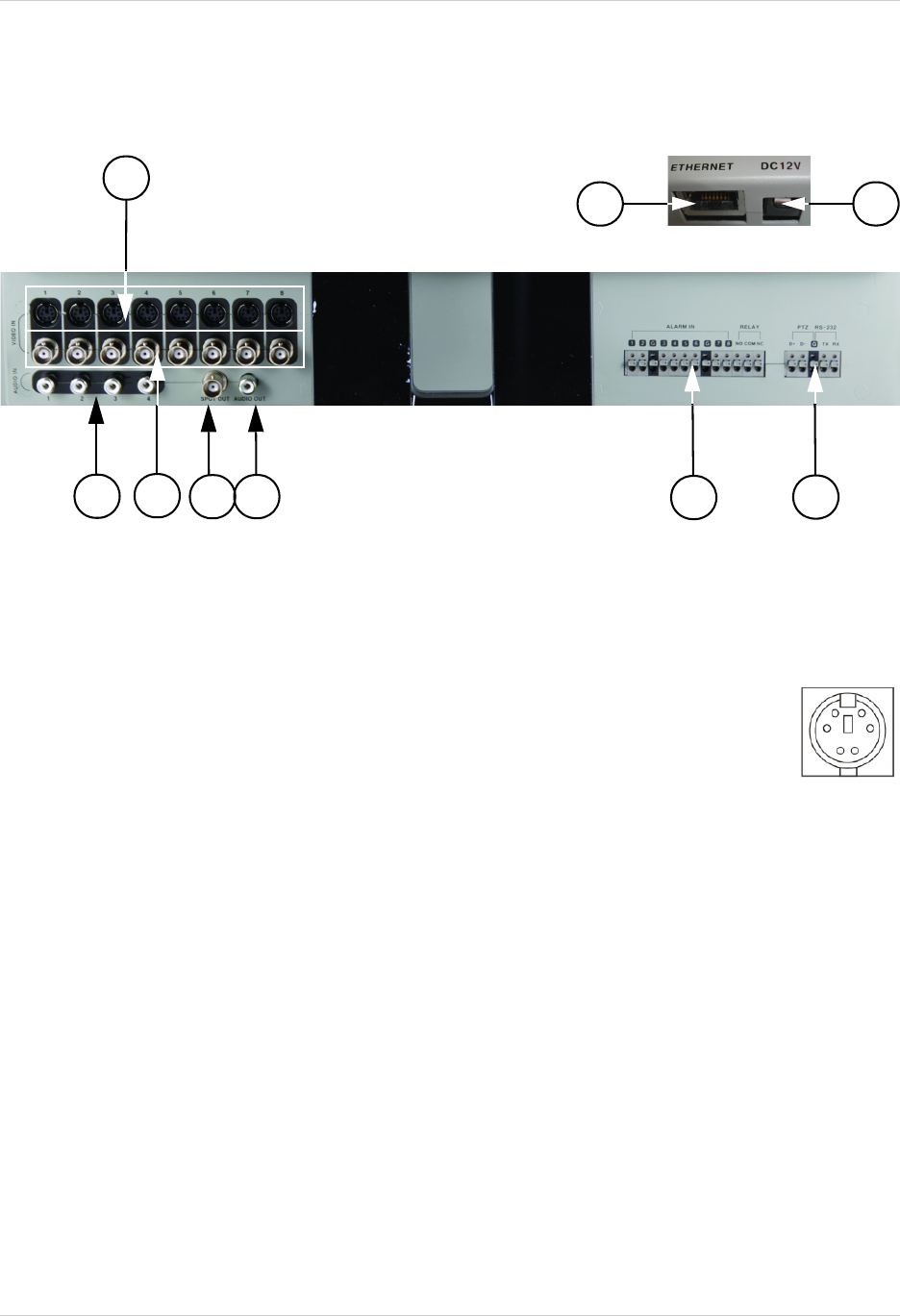

1. 6 PIN DIN CAMERA INPUTS - Channel 1-8 Camera inputs (for cameras with
6 Pin DIN connections).
Cameras with 6 Pin DIN connections draw power from the System - additional
power adapters are not needed.
2. RCA AUDIO INPUTS - Channel 1-4 Audio inputs (for BNC type cameras with standard RCA
Audio output)
3. BNC VIDEO INPUTS - Channel 1-8 camera inputs (used to connect Cameras with BNC
connection type). Cameras with BNC connections require an additional power adapter.
1
2
3
4
8
9
6
7
6 PIN DIN
5
