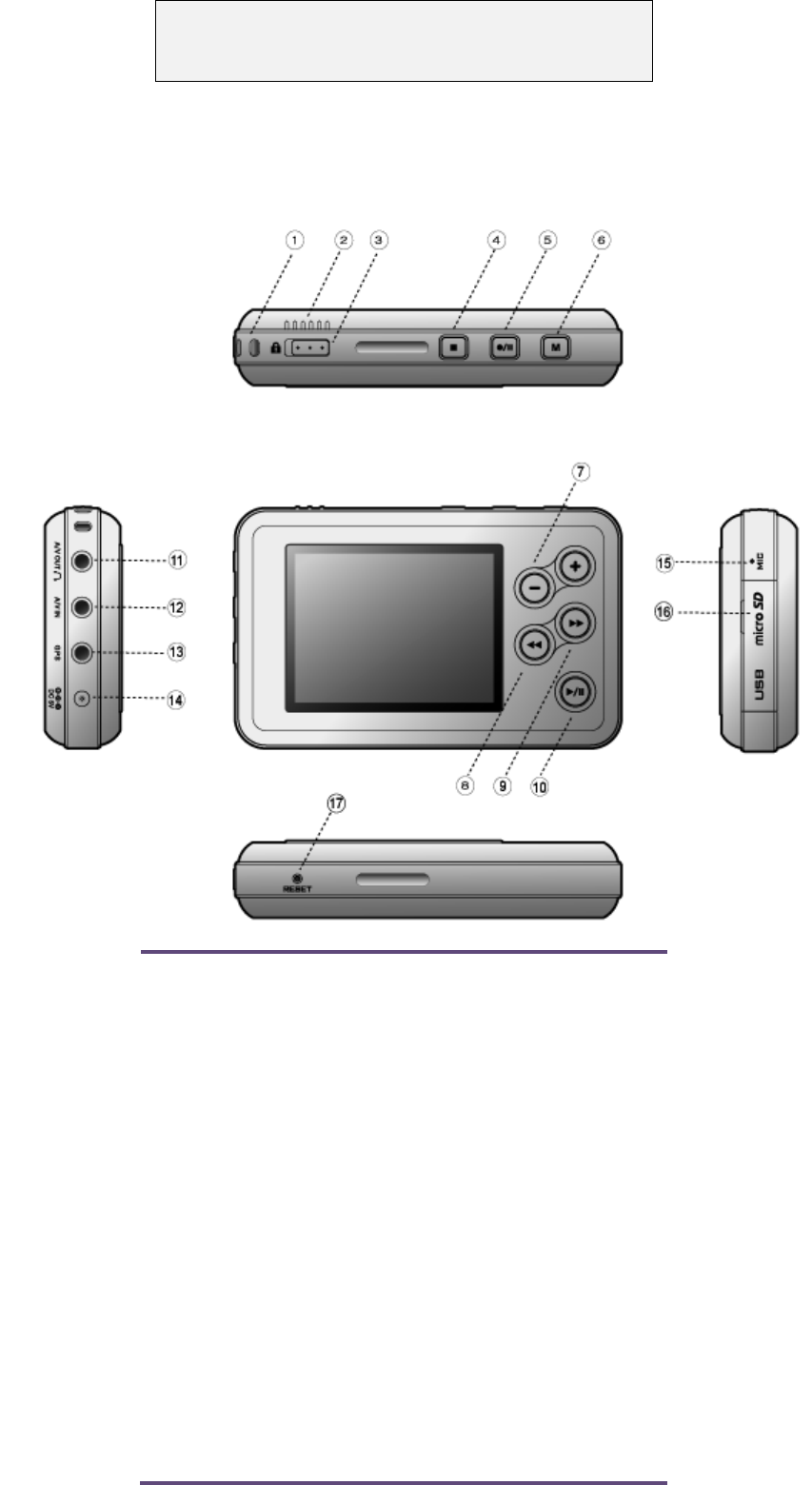

User Manual Model: PDVR-1000 1. Name of each part ① Neck Strap Holder ② Built-in Microphone ③ Hold Key ④ Stop/ESC ⑤ Rec.
16 micro SD card slot/USB jack 17 Reset 2. LCD ① Date ② Time ③ Current Memory Storage ④ Speaker On/Off ⑤ Volume Level ⑥ Battery Status ⑦ Current selected menu 3. Quick operation of each button Long Key - Power On/Off Short Key - Play/Pause in Playing a file. - Enter/Select in Menu & file list - LCD Off - Stop playing or recording. - Escape out of a current menu.
4. Structure of Main Menu RECORD VIDEO AUDIO IMAGE SETTING 1) RECORD - Record an input signal (Video & Audio) from the connected camera. - The file recorded in this mode is stored at the Video Folder. 2) VIDEO - A recorded video file(s) is stored in the Video folder and the file(s) is played back in this menu. 3) AUDIO - A recorded audio only file(s) is stored in the Audio folder and the file(s) is played back in this mode.
a camera is shown on the LCD with "Preview" in red camera is shown on the LCD with "Preview" in red on the right of the LCD before recording. on the right of the LCD before recording. ☞If a camera is not connected or connected in loose, "No Signal" will be displayed in blinking several times instead of a image and then goes back to main menu display. Recording Recording starts when is pressed once again with "Rec" in red on the right of the LCD.
☞ Making a new file while recoding If pressing or while recording, the recording file is separated with a new file name. The recording file is stored in “Video Folder” ☞ Changing a setup value While recording, Recording time & Microphone sensitivity are changeable by pressing without stopping the recording. 2) Audio Recording(Voice) Turn it on by pressing Move to “Setting” Menu by pressing Press or . to enter into a recording mode setting for Voice only.
- Press to stop recording. Recording 2. By Rec. Button - Press to enter into the monitoring. - Press once again to start recording and press it again for pause. - Re-start recording by pressing - Press . to stop recording. ☞ Making a new file while recoding If pressing or while recording, the recording file is separated with a new file name.
Press to preview before taking a photo. Press to preview at the RECORD Mode. If so, Live image from a camera is shown on the LCD Live image from a camera is shown on the LCD with "Preview" in red on the right of the LCD. with "Preview" in red on the right of the LCD. ☞If a camera is not connected or connected in loose, "No Signal" will be displayed in blinking several times instead of a image and then goes back to main menu display. Taking a photo shot Press to take a shot.
☞ On the file list, if pressing with short key, submenu(Playback/File Delete/File Protect/File Information) is appeared. - Playback: Play a selected file back. - File Delete: Delete a selected file.(No, One, All) - File Protect: The file with File Protect won’t be deleted.(Off, On) - File Information: File name, size, Time, Protect status are displayed.
