wire ring (P) first. Then seat cutter. When seated correctly the
cutter should be flush with cone when in forward position.
4. Replace set screw. Align the tip with the hole in the cutter. Tighten
firmly.
CAUTION: If the set screw is lost or damaged do not replace with
anything but an exact replacement part.
FIG. 8
M
N
O
P
L
Repairs
The charger and battery pack are not serviceable.
T
o assure product SAFETY and RELIABILITY, repairs, maintenance
and adjustment (including brush inspection and replacement) should
be performed by a D
E
WAL
T factory service center, a D
E
WAL
T
authorized service center or other qualified service personnel. Always
use identical replacement parts.
When deburring becomes difficult a new cutter may be required.

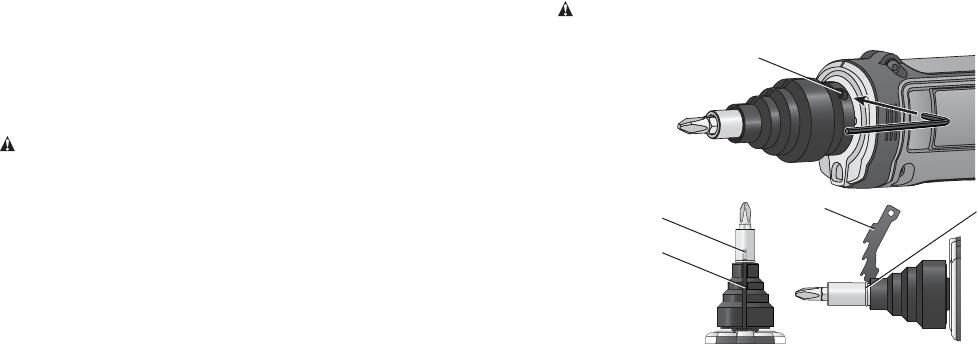

INSTALLING REPLACEMENT CUTTER ACCESSORY DWA2601IR
(FIG. 8)
WARNING: T
o reduce the risk of serious personal injury,
turn tool off and remove the battery pack before making any
adjustments or removing/installing attachments or accessories.
An accidental start-up can cause injury.
1. Use a 5/64 hex key to loosen and remove set screw (M).
2. Retract cone and tip cutter up and remove.
3. With the slot (N) in the magnetic bit holder and the slot (O) in the
cone aligned, insert new cutter (L) sliding the tip under the round
