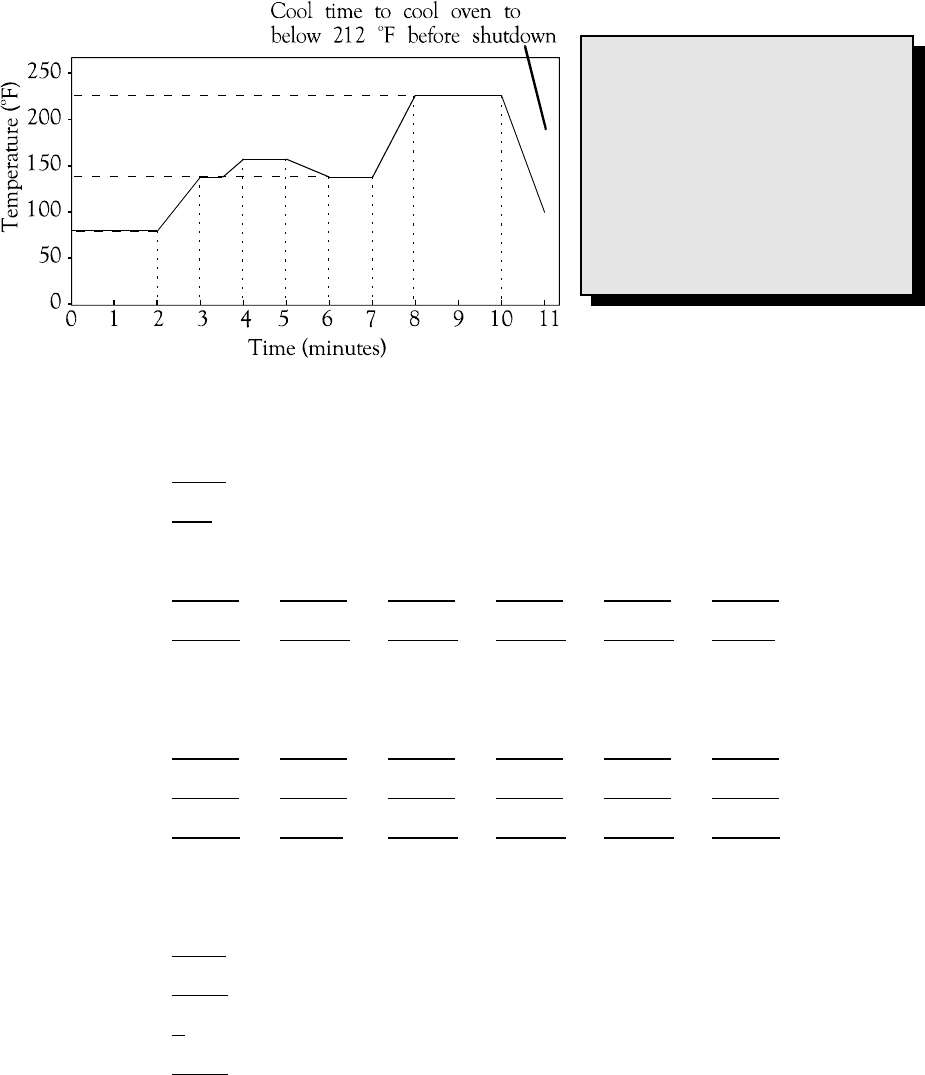

Figure 9. Example Temperature Profile
NOTES: MMSS
(minutes/seconds) and EF
selected in the tune mode. Event
1 wired properly for autostart,
events 2 - 3 are not used. No
hold at last setpoint.
Soak-Deviation = ±5EF (also
assured soak limit). Minimum
operating temperature is 70EF.
Example 4 - Program Mode
Autostart the oven after two hours and follow the characteristic curve below.
Display Setting(s)
HL 240
PRO- 1
SEG- 1 2 3 4 5 6
RAMP 0001 0100 0030 0100 0100 0030
E-1 * OFF ON ON ON ON ON
E-2 _____ _____ _____ _____ _____ _____
E-3 _____ _____ _____ _____ _____ _____
TEMP 70 130 160 130 220 100
SOAK 0200 0030 0100 0100 0200 0001
E-1 OFF ON ON ON ON OFF
E-2 _____ _____ _____ _____ _____ _____
E-3 _____ _____ _____ _____ _____ _____
SOAK-DEV 5
GOTO End
REPEAT TIMES 1____
HOLD NO
* Only E1 event is turned on.
