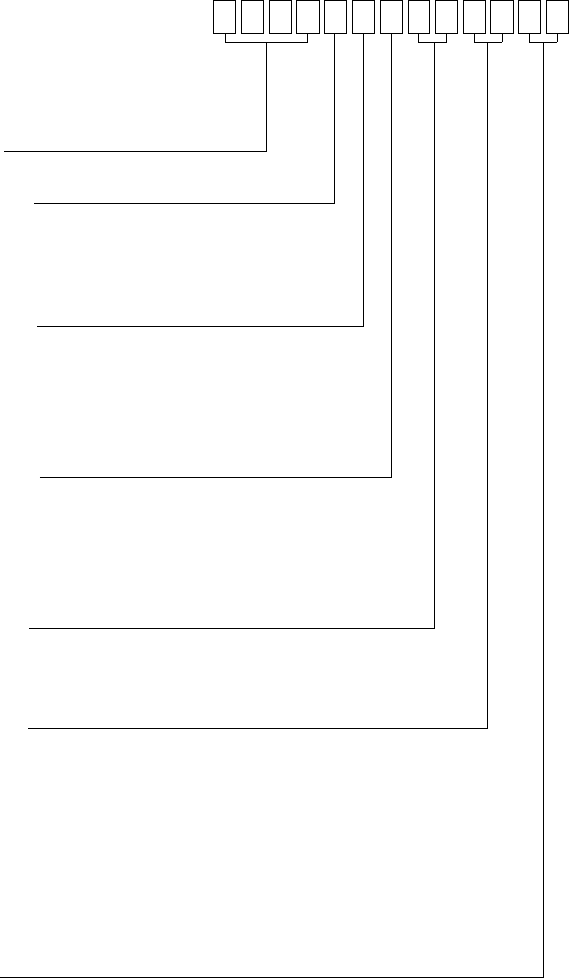

APPENDIX F: MODEL NUMBER HARDWARE MATRIX
4
1
2
6
MODEL
OUTPUT 1
1 Relay
2 SSRD
3 4-20 mA*
OUTPUT 2
0 None
1 Relay
2 SSRD
3 4-20 mA*
OUTPUT 3
0 None
1 Relay
2 SSRD
3 4-20 mA**
OPTION 1
00 None
01 RS-485 Communications
OPTION 2
00 None
10 Event Outputs (4)
20 Remote Profile Control Inputs (6)***
30 Both Event Outputs & Remote Profile Control Inputs
40 Real Time Clock
50 Real Time Clock and Event Outputs
60 Real Time Clock and Remote Inputs
70 Real Time Clock, Event Outputs and Remote Inputs
SUFFIX
00 Line Voltage 120 VAC
02 Line Voltage 24 V AC/DC
*For control output only
** For retransmission only
*** Remote Control available - Run/Hold, Abort, Time Base Change
(x60), and three (binary coded) Program Select.
