LBB Series Oven Owner’s Manual ASSEMBLY & SETUP
Version 15 27
Copyright © 2012 by Despatch Industries.
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.
4.2.3. Wiring & Power Connections
Read the Model LBB nameplate (top of oven or top of control
area under the door) for proper power requirements before
proceeding with wiring and power connections (Figure 7).
Danger!
All grounding and safety equipment must be in compliance with
applicable codes, ordinances and accepted safe practices.
Models LBB1-23A, -23B, -43A and -43B come equipped with an appropriate plug and cord.
Models LBB1-69A, -69B and LBB2-12, -18, -27 must be hardwired to the electric supply using
10 AWG or larger wires suitable for at least 75 °C (167 °F).

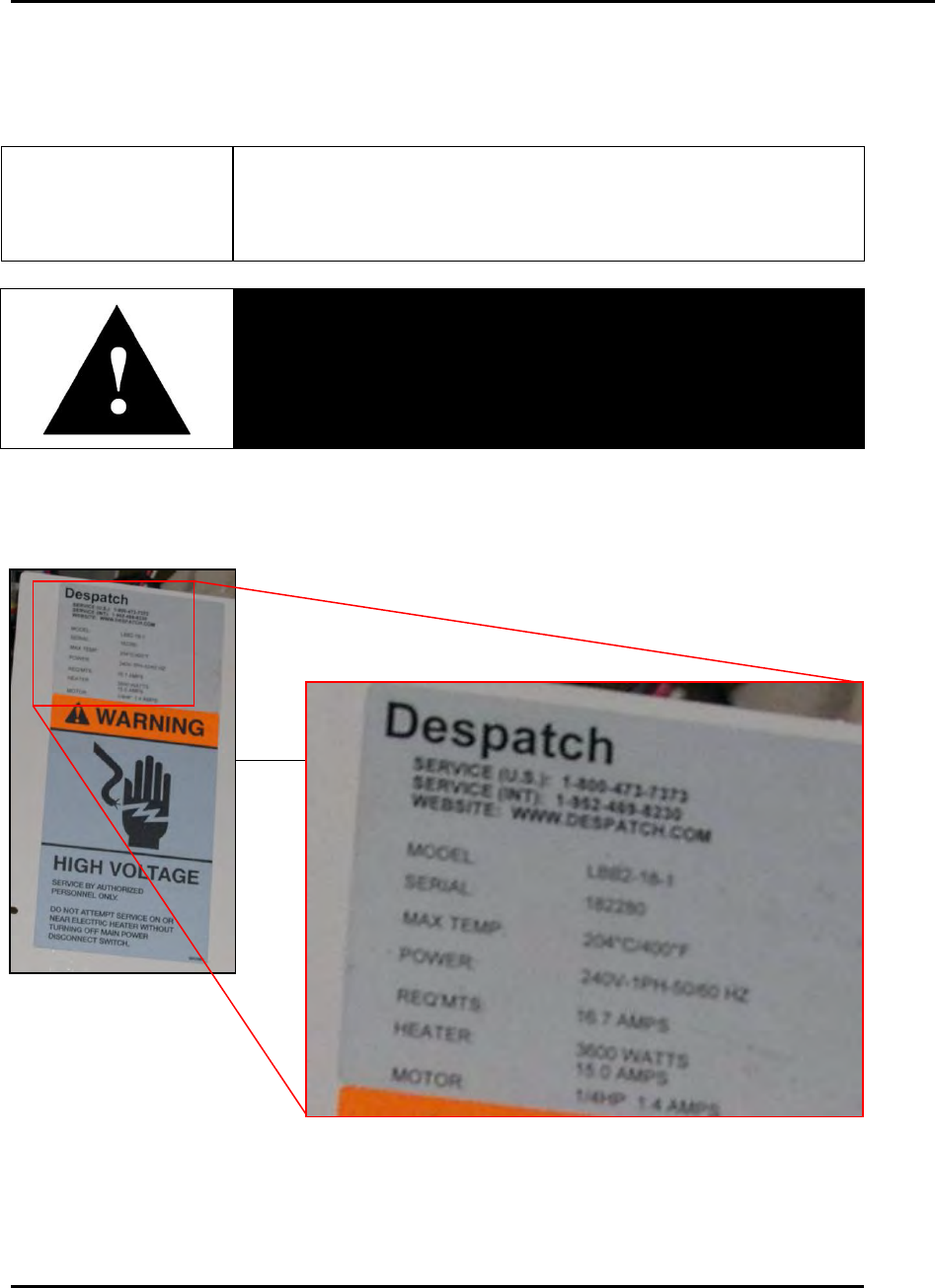

Figure 7. LBB Series Oven Name Plate.
