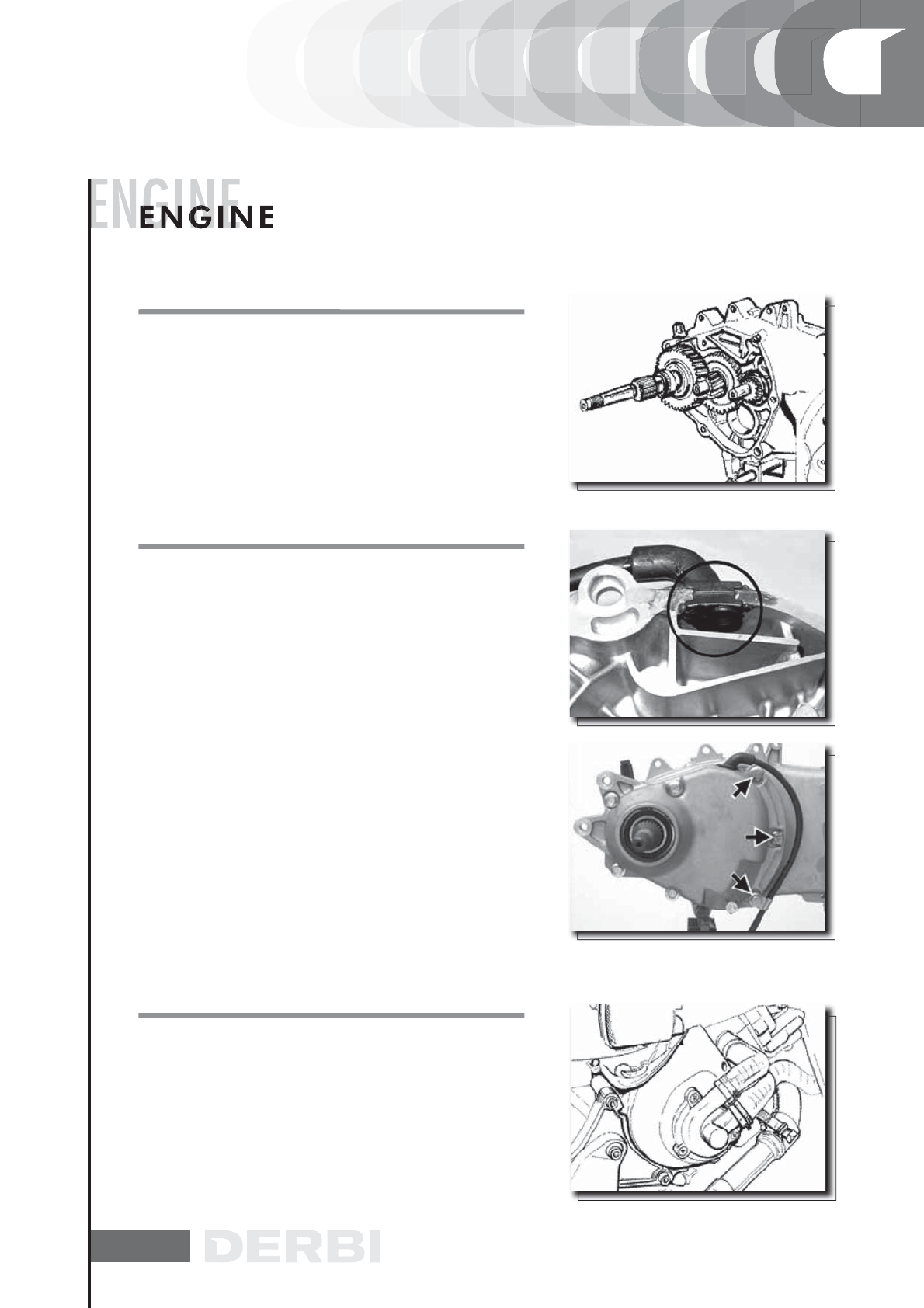

REFITTING THE HUB BEARINGS
- Install the 3 shafts in the engine crankcase as shown in the
figure.
REFITTING THE HUB COVER
- Install a new gasket with the centring dowels.
- Seal the vent pipe gasket using black silicone sealant.
- Install the cover checking the correct position of the vent
pipe.
- Place the 3 shorter screws that can be recognised by the
different colour as shown in the figure.
- Fix the vent pipe support bracket using the lower short
screw.
- Install the remaining 4 screws and tighten the 7 screws at
the prescribed torque.
Locking torques (N*m)
Hub cover screws 24 ÷ 27
FLYWHEEL COVER
REMOVING THE HUB COVER
Version 125
- Remove the two clamps, the two sleeves and empty the
cooling system.
- Remove the 4 attachments and the flywheel cover.
