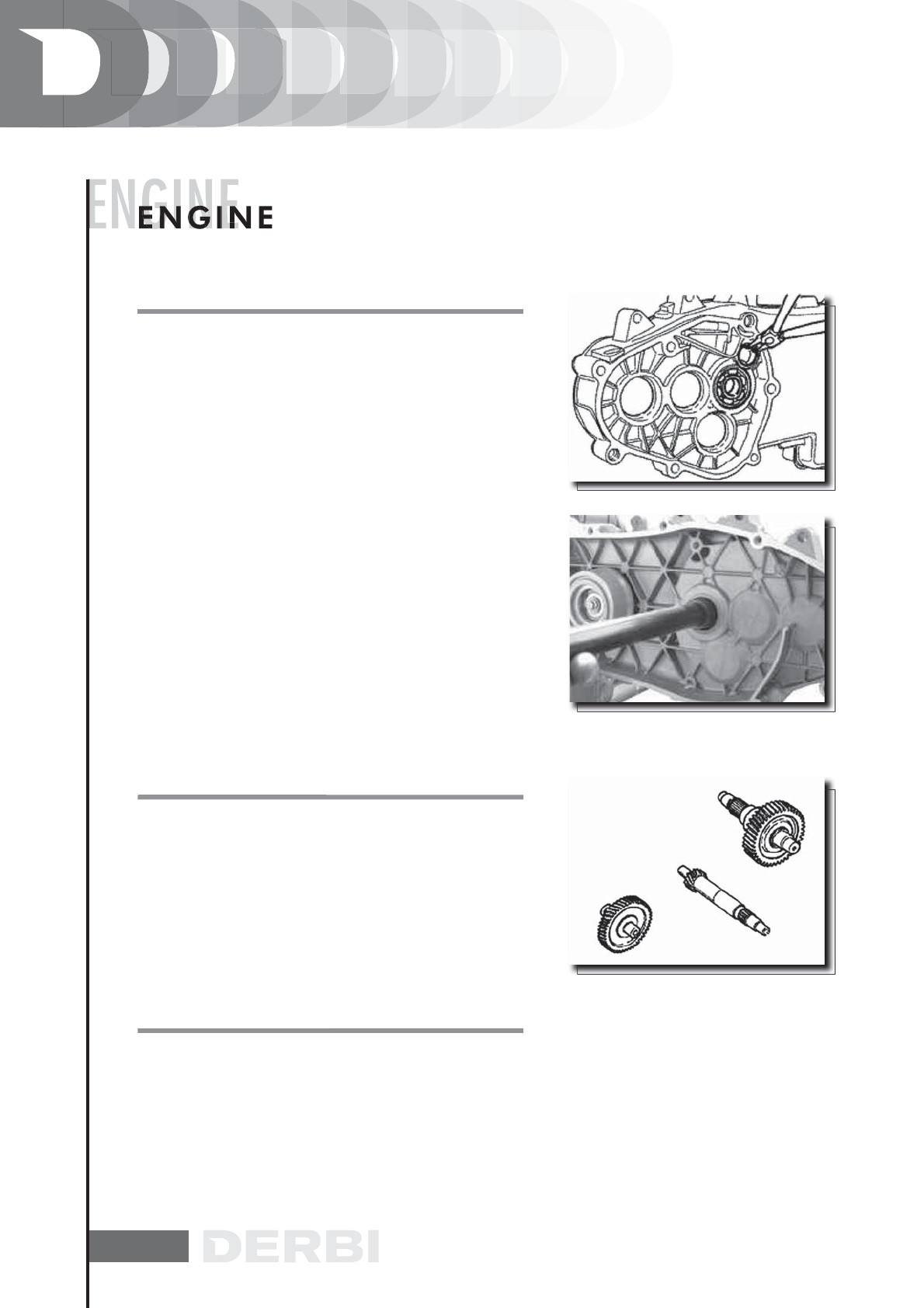

REMOVING THE DRIVEN PULLEY SHAFT BEARING
- If you have to remove the driven pulley shaft, the relevant
bearing and the oil guard, remove the transmission cover
and the clutch unit as described before.
- Extract the driven pulley shaft from the bearing.
- Remove the oil guard using a screwdriver from the inside of
the bearing, and being careful not to damage the seat, make
it slide out from the belt transmission side.
- Remove the snap ring shown in the figure.
- Remove the driven pulley shaft bearing using the modular
punch.
Specific tooling
020376Y Handle for punches
020375Y Adapter 28 x 30 mm
020363Y 20mm guide
INSPECTING THE HUB SHAFT
- Check that the three shafts exhibit no wear or deformation
on the toothed surfaces, at the bearing connections and at
the oil guards.
- In case of anomalies, replace the damaged components.
INSPECTING THE HUB COVER
- Check that the matching surfaces exhibit no deformations.
- Check the bearing connections.
- In case of anomalies, replace the damaged components.
