Technical data

90
- Replace the steel washer and the driven pulley nut.
- Tighten the nut at the prescribed torque using the lock
wrench and the dynamometric wrench tools.
- Replace the plastic cover.
Specific tooling
020423Y driven pulley stop key
Locking torques (N*m)
Cover screws 11-13 Driven pulley axis 54 ÷ 60
END GEAR

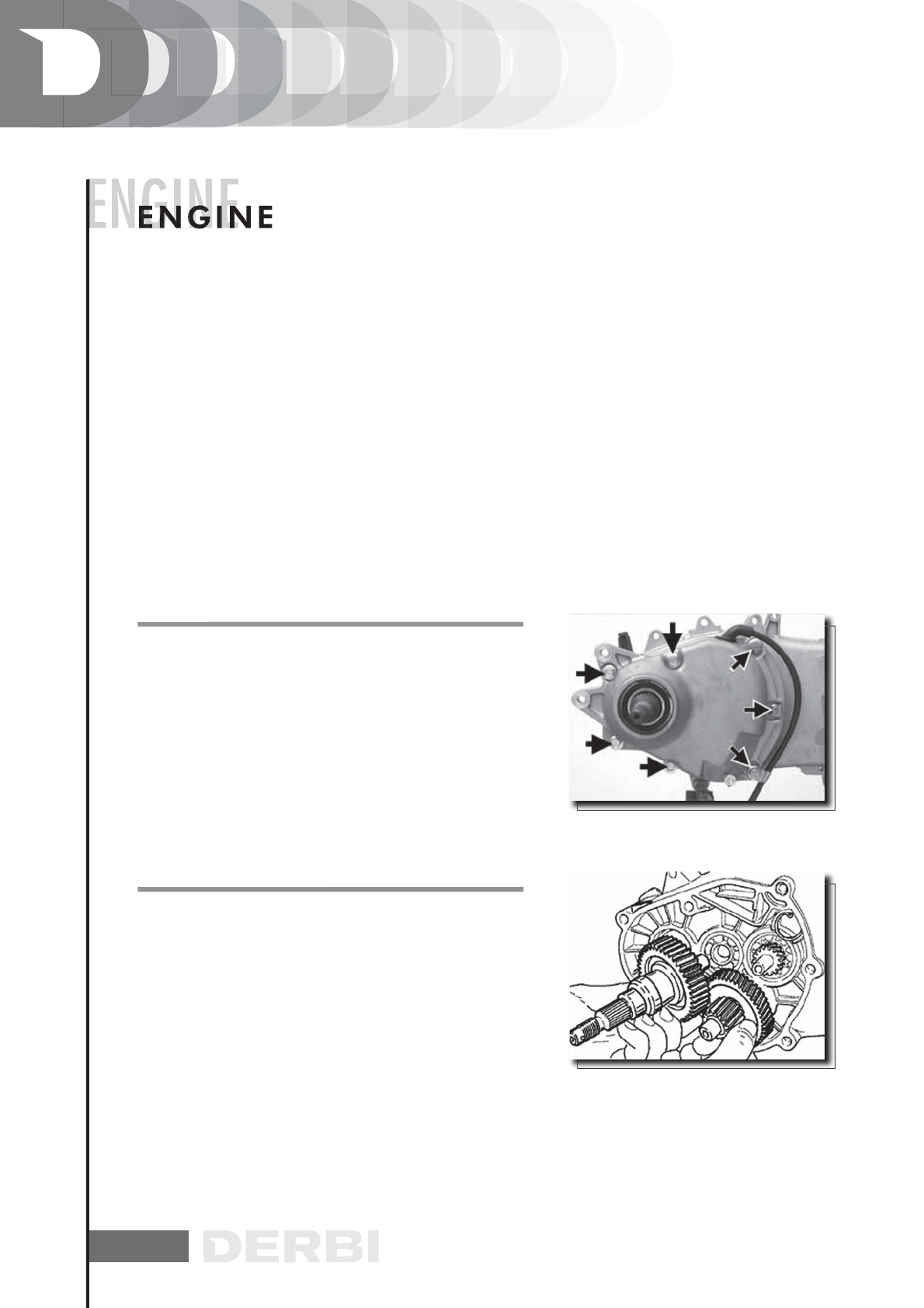

REMOVING THE HUB COVER
- Drain the rear hub by the oil drainage cap.
- Remove the 7 flanged screws shown in the figure.
- Remove the hub cover and the relevant gasket.
REMOVING THE WHEEL AXLE
- Remove the wheel axle with gear.
- Remove the intermediate gear.
END GEAR
REMOVING THE WHEEL AXLE
