Technical data

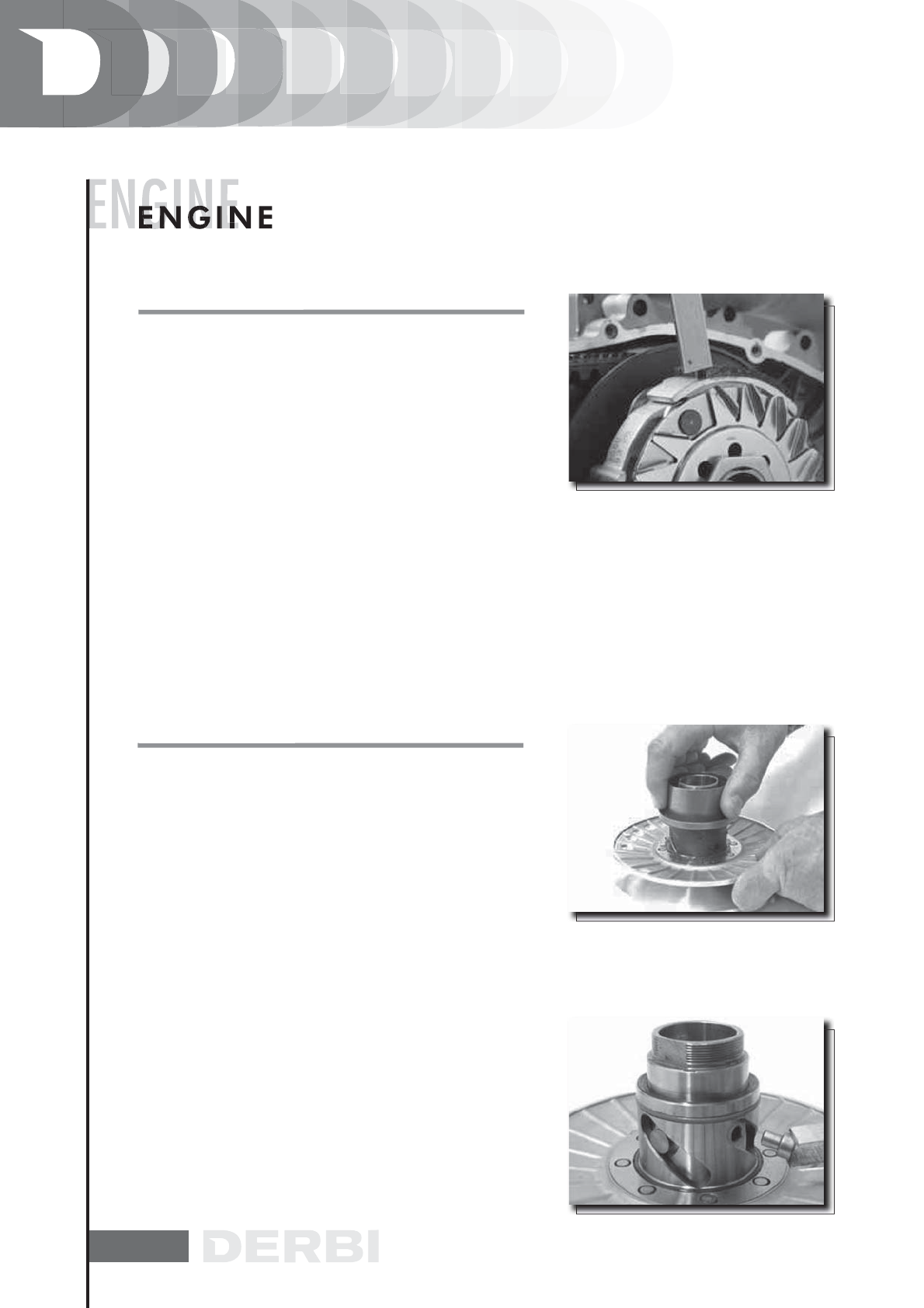

INSPECTING THE CLUTCH

- Check the thickness of the clutch mass friction material.

- The masses must exhibit no traces of lubricants; in that

case, check the driven pulley unit seals.

N.B.

UPON RUNNING-IN, THE MASSES MUST EXHIBIT A CEN-

TRAL CONTACT SURFACE AND MUST NOT BE DIFFERENT

FROM ONE ANOTHER.DIFFERENT CONDITIONS MAY

CAUSE THE CLUTCH TEARING.

CAUTION

DO NOT OPEN THE MASSES USING TOOLS TO PREVENT A

VARIATION IN THE RETURN SPRING LOAD.

Characteristic

Check. Minimum thickness

1 mm

PIN RETAINING COLLAR

- Remove the collar by hand by turning and pulling at the

same time.

N.B.

IN CASE OF DIFFICULTIES, USE 2 SCREW DRIVERS.

N.B.

BE CAREFUL NOT TO INSERT THE SCREW-DRIVERS TOO

MUCH TO PREVENT DAMAGES THAT COULD AFFECT THE

0-RING SEAL.

- Remove the 4 pins of the servo-system and separate the

half-pulleys.

SC G CUC

PIN RETAINING COLLAR
