Technical data

73

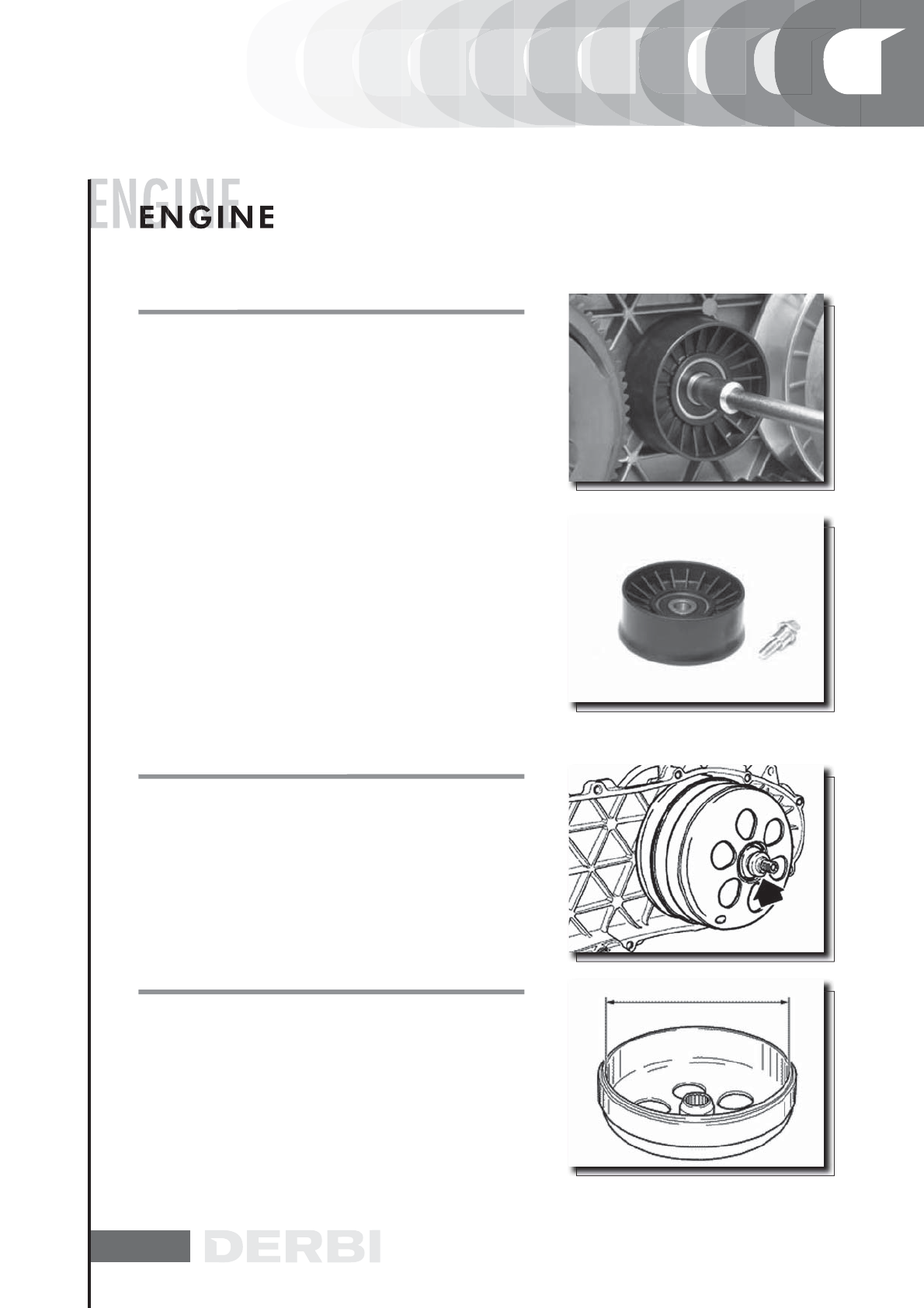

BAFFLE ROLLER
PLASTIC ROLLER
- To reassemble, install the roller with the containment edge
on the engine crankcase side.
- Tighten the wrench at the prescribed torque.
- Check that the roller is free from wear and that itrotates
freely.
- Remove the special fixing screw as shown in the figure.
- Ensure that the roller outside diameter exhibits no anoma-
lies that may affect the belt operation.
Locking torques (N*m)
Anti-flapping roller 12÷16
REMOVING THE DRIVEN PULLEY
Remove the spacer, the clutch bell and the entire driven pu-
lley assembly.
N.B.
THE ASSEMBLY MAY ALSO BE REMOVED WITH THE DRI-
VING PULLEY ON.
INSPECTING THE CLUTCH DRUM
- Check that the clutch bell is not worn or damaged.
- Measure the clutch bell inside diameter.
Characteristic
Max value clutch bell
Max value: Ø 134,5 mm
Standard value clutch bell
Standard value: Ø 134,2 mm
O
REMOVING THE DRIVEN PULLEY
INSPECTING THE CLUTCH DRUM
