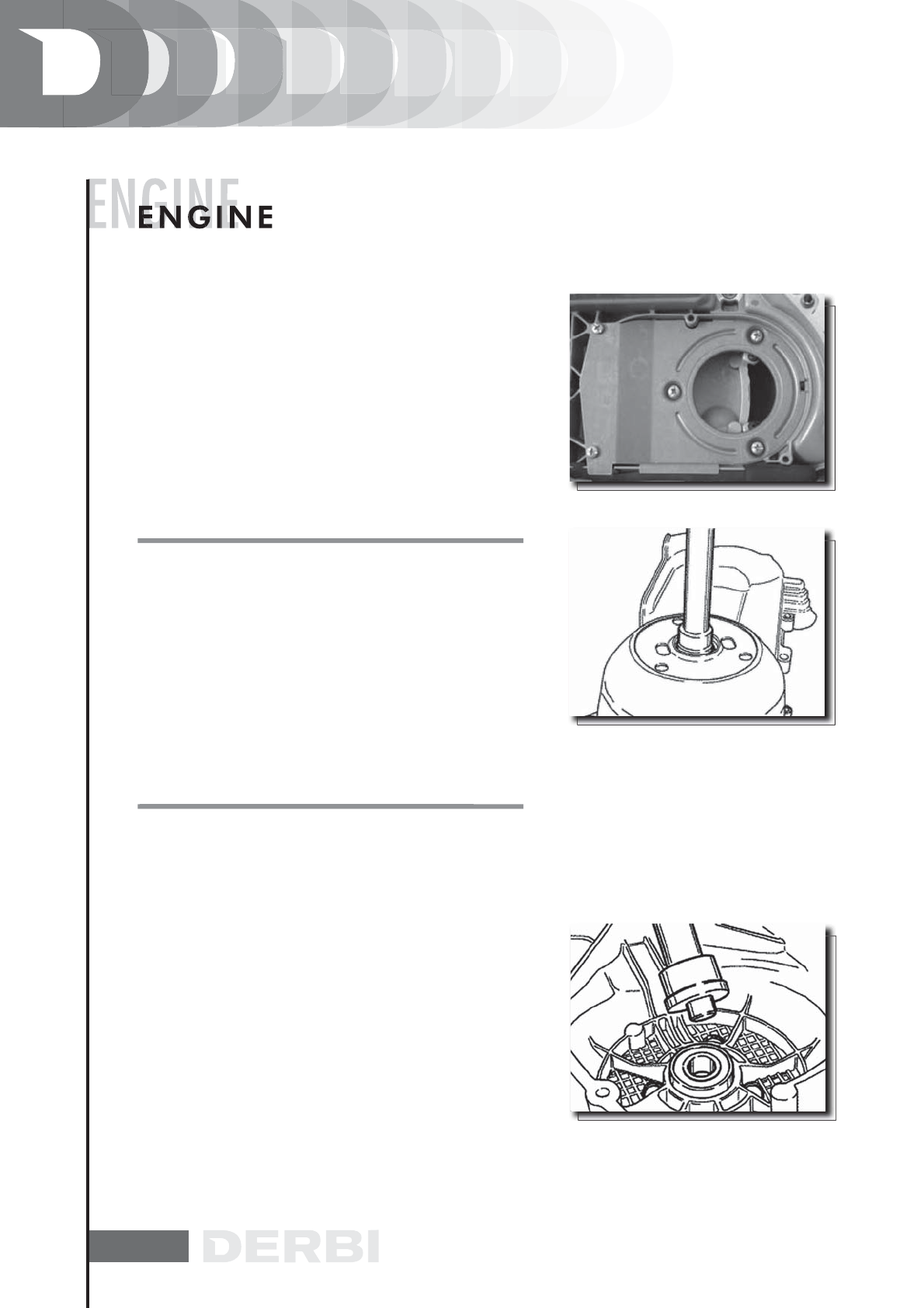

- Remove the 5 screws located on two different surfaces and
the case.
REMOVING THE DRIVEN PULLEY SHAFT BEARING
- Remove the snap ring from the cover internalside.
- Remove the bearing from the case using:
Specific tooling
020376Y Handle for punches
020375Y Adapter 28 x 30 mm
020412Y 15 mm guide
REFITTING THE DRIVEN PULLEY SHAFT BEARING
- Slightly warm the inside of the case to prevent damaging
the painted surface.
- Install the bearing into its seat
- Replace the snap ring.
CAUTION
USE AN APPROPRIATE REST SURFACE TO AVOID DAMA-
GING THE COVER PAINT.
N.B.
ALWAYS REPLACE THE BEARING WITH A NEW ONE UPON
REASSEMBLY.
Specific tooling
020376Y Handle for punches
020357Y 32 x 35 mm adaptor
020412Y 15 mm guide
