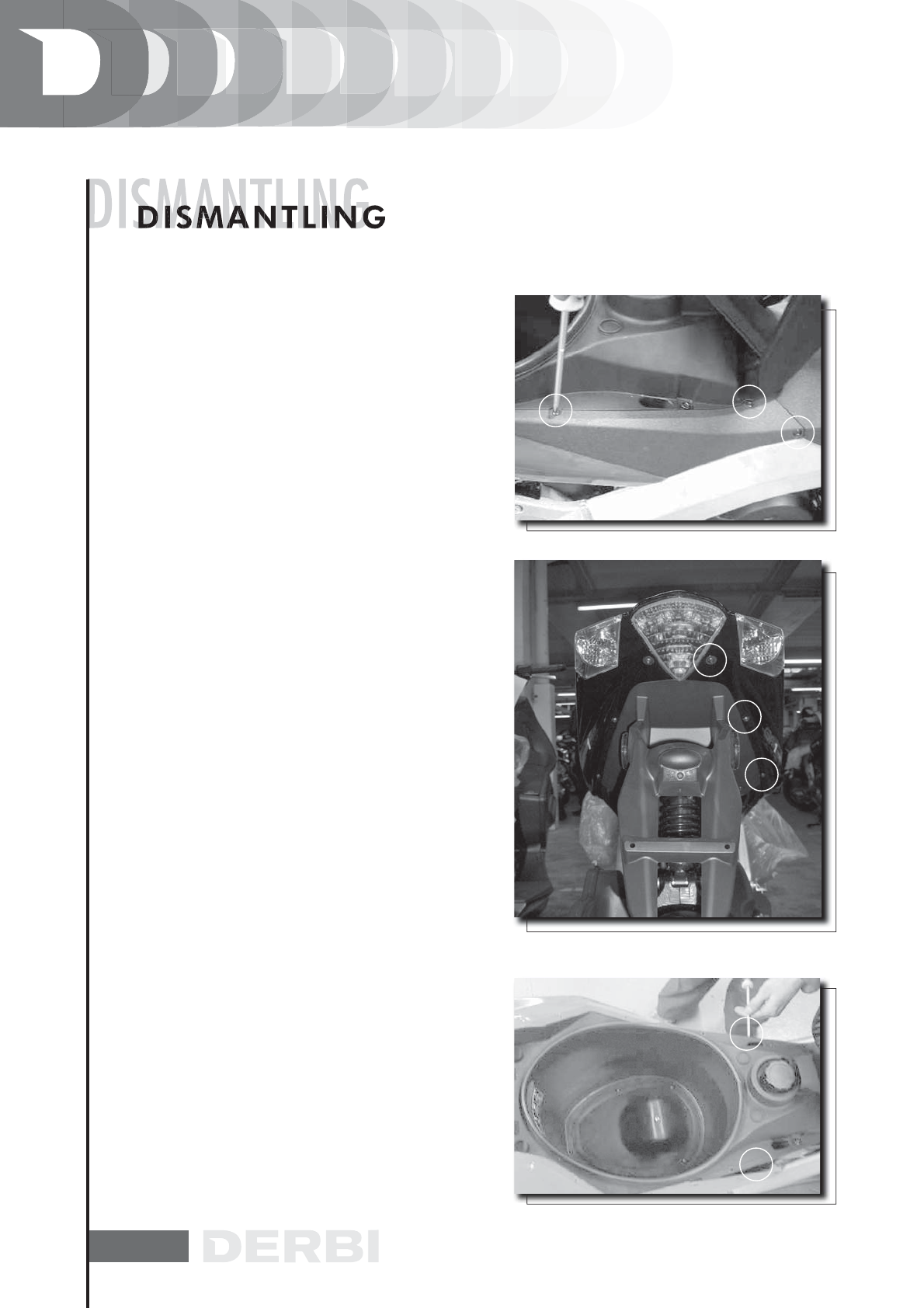

1. SEAT SIDE TRIM

• Extract the 3 securing screws (2 Philips 3.6x14 self-

tappers and one 5x16 Allen M3) from each cover.

2. COWLING

• Extract the 6 screws (5x12 Allen M3) from under the

cowling.

- Extract the drawer for the tool kit and its cover, by

removing the 2 Philips screws with washers.

• Extract the 8 top screws (Philips 3.6x14 self-tappers

with washer) and the 2 side screws (Philips

6x16 with washer).

• Pull the cowling backwards slightly to access the turn

indicator connections and disconnect them.

• Extract the cowling backwards.

N.B.

TO REPLACE THE PILOT LIGHTS IT IS ONLY NECESSARY

TO EXTRACT THE TWO PILOT LIGHT SCREWS.
