Technical data

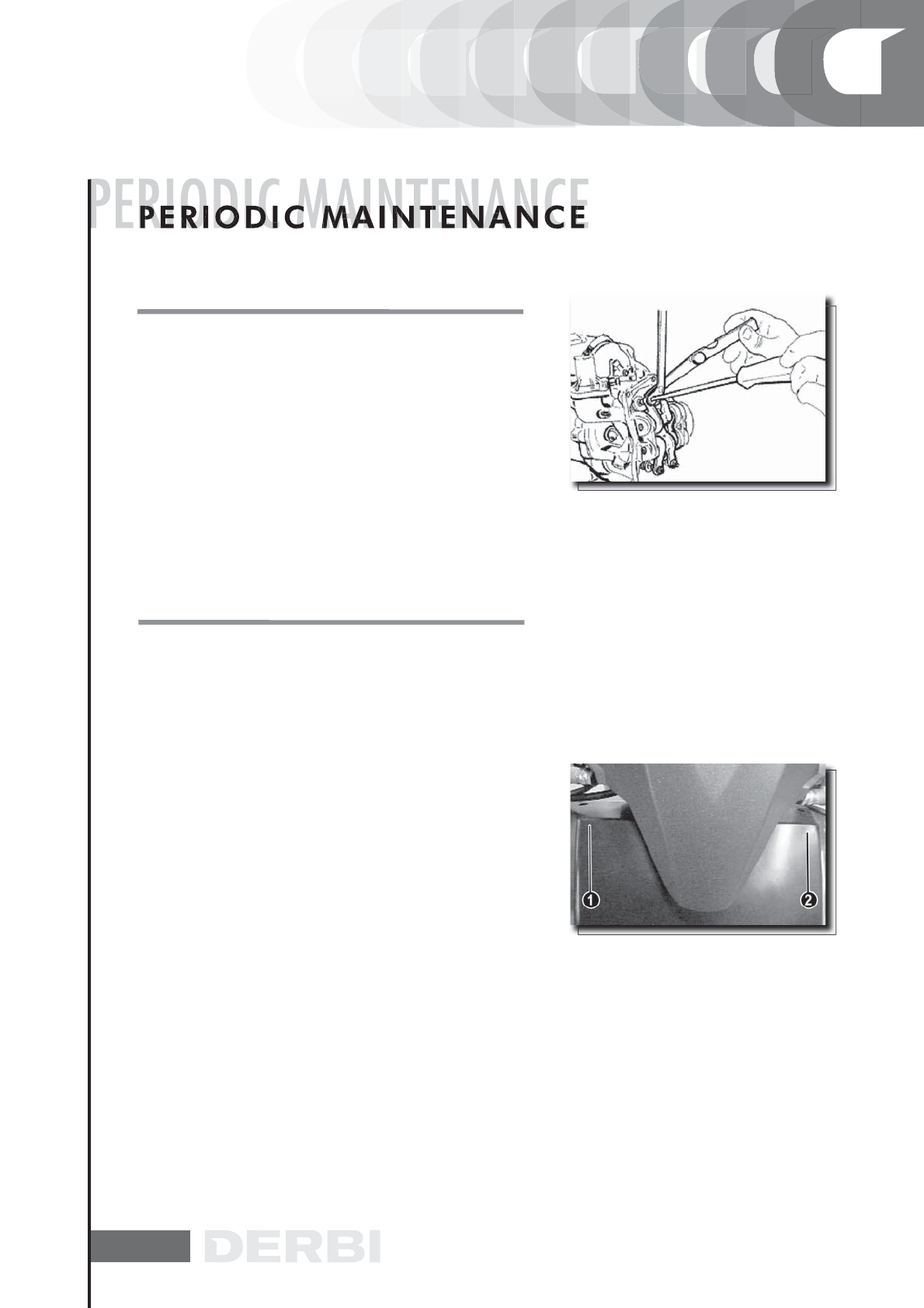

CHECKING THE VALVE CLEARANCE

-To check the valve clearance, you have to make the point

references coincide

-Check that the clearance between the valve and register co-

rresponds to the values shown using a proper thickness gau-

ge. If the values of the valve clearances - intake and dischar-

ge, respectively are different than those given below, adjust

them by loosening the lock nut and using a screwdriver on

the register as shown in the figure.

Air intake: 0,10 mm (cold)

Discharge: 0,15 mm (cold)

COOLING SYSTEM

TOP-UP

The fluid level inspection should be carried out every 6,000

km when the motor is cold, following the methods indicated

below:

- Rest the vehicle on the central stand and on a flat ground.

Accessing the coolant level indicator

To check the level of coolant, remove the cap on top (remove

screws 1 and 2).

- Top up, if ffie fluid leveT is near to or below the MIN level

into the expansion tank. The fluid level should always be bet-

ween the MIN and MAX level.

- The cooling fluid consists of a mixture of 50 deminerali-

sed water and ethylene glycol and corrosion inhibitors based

anti-freeze solution.

ATENCIÓN

TO PREVENT THE COOLANT FROM LEAKING OUT OF THE

EXPANSION TANK DURING USE, BE SURE TO NEVER EX-

CEED THE MAX LEVEL WHEN REFILLING
