HUB OIL

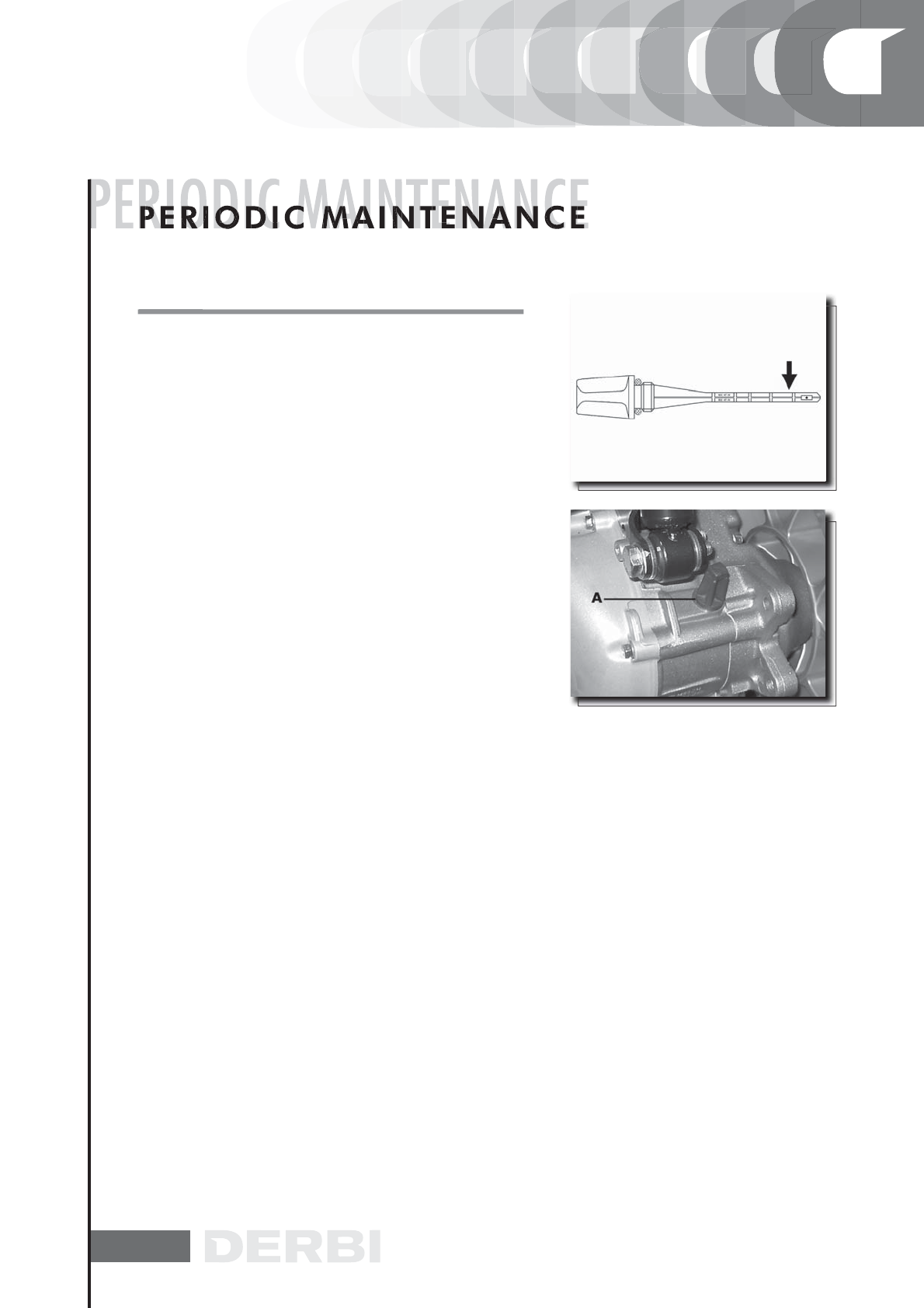

Check that there is oil in the rear hub. (quantity of oil contai-

ned ~ 250 cc). Proceed as follows in order to check the hub

oil level:

1) Take the vehicle to a flat area and rest it on the support.

2) Unscrew the oil bar «A», dry it with a clean cloth and rein-

sert it, screwing it in completely.

3) Extract the rod and check that the level is up to the mark

indicated in the image.

4) Screw the bar back in, checking that it is tightly in place.

N.B.

THE NOTCHES ON THE HUB OIL LEVEL BAR, WITH THE EX-

CEPTION OF THAT INDICATING THE MAX LEVEL, REFER TO

SOME OF THE MANUFACTURER’S OTHER MODELS AND

HAVE NO SPECIFIC FUNCTION AS FAR AS REGARDS THIS

VEHICLE.

WARNING

USING THE VEHICLE’S HUB WITH INSUFFICIENT LUBRI-

CATION OR WITH CONTAMINATED OR IMPROPER LUBRI-

CANTS, ACCELERATES THE WEAR AND TEAR OF THE MO-

VING PARTS AND CAN CAUSE SERIOUS DAMAGE.

ENVIRONMENT

THE OIL USED CONTAINS ENVIRONMENTALLY HARMFUL

SUBSTANCES. FOR THE REPLACEMENT OF THE HUB OIL

WE RECOMMEND TURNING TO AN AUTHORIZED PIAGGIO

SERVICE CENTRE THAT IS EQUIPPED FOR THE DISPOSAL

OF USED OIL IN RESPECT OF NATURE AND LEGAL REGU-

LATIONS.

WARNING

WHEN REPLACING THE HUB OIL PREVENT IT FROM COMING

INTO CONTACT WITH THE REAR BRAKE DISC.
