Technical data

220

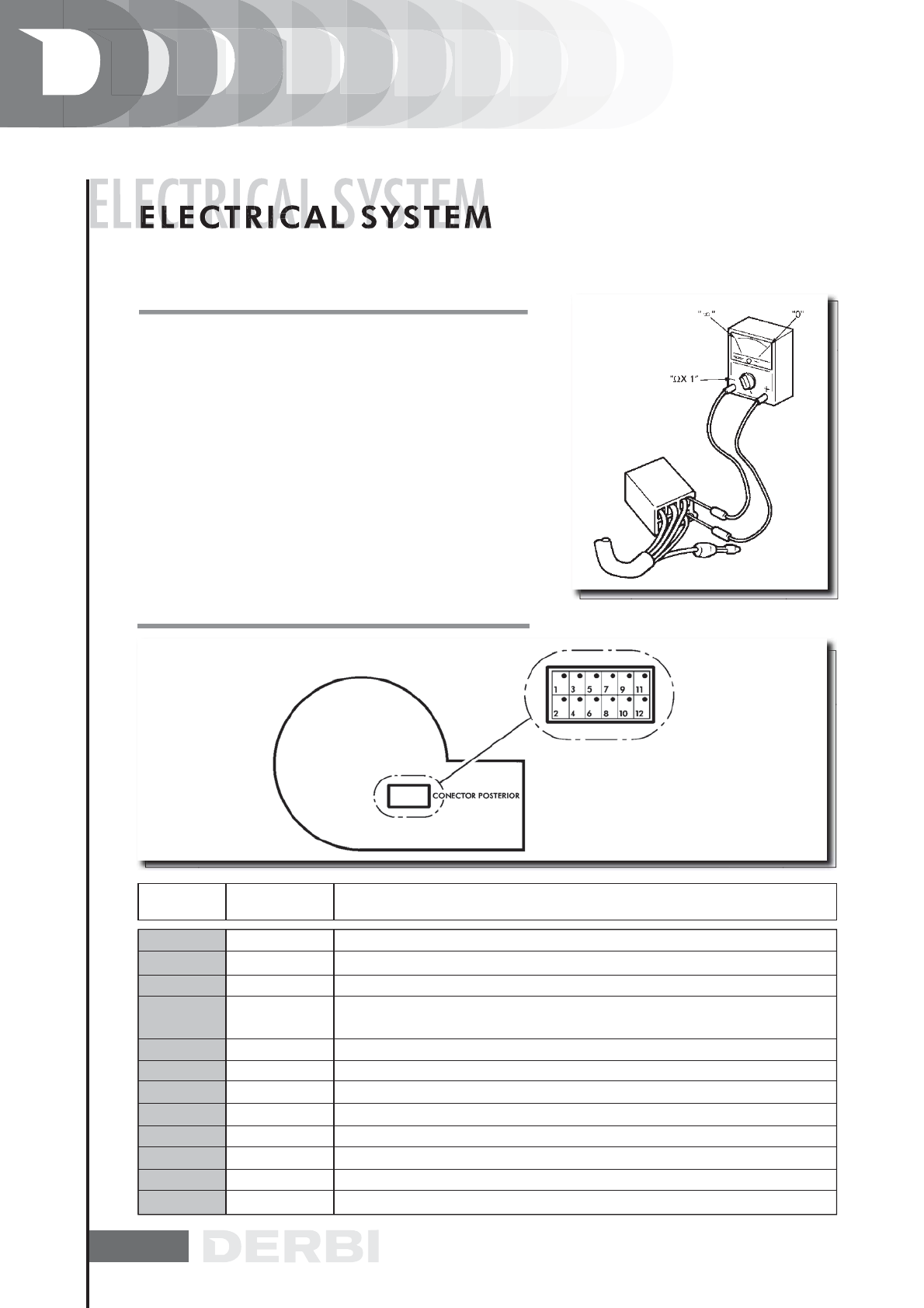

INSPECTION STEPS
Using a multimeter, check the circuit between the terminals
to make sure that they are correctly connected. Replace the
component if any of the combinations gives an incorrect rea-
ding.
N.B.
- SWITCH THE “ON” AND “OFF” SWITCH ON AND OFF
SEVERAL TIMES.
- ADJUST THE METER SELECTOR TO THE “X1” POSITION.
- ADJUST THE GAUGE TO “ZERO”.
I
NSPECTION STEPS
NÚMERO
CONEXIÓN
POLARIDAD
1
2
3
4
5
6
7
8
9
10
11
12
DIGITAL INSTRUMENTS UNIT
(+)
(+)
(+)
(+)
(+)
(-)
(-)
(-)
(-)
(+)
DESCRIPCIÓN
Battery
Contact
GND
Hall Effect (without intensity)
Check: Battery voltage, at the terminals with a digital
Turn indicator.
Oil indicator.
No connection.
Temperature indicator.
Hall pulses.
Fuel reserve indicator.
Centre stand indicator.
Main beam indicator.
