DISMANTLING
WARNING
- ENSURE THAT THE MOTORCYCLE IS SUPPORTED FIRMLY
AND THERE IS NO RISK OF IT FALLING.
- PLACE THE MOTORCYCLE ON A FLAT SURFACE.

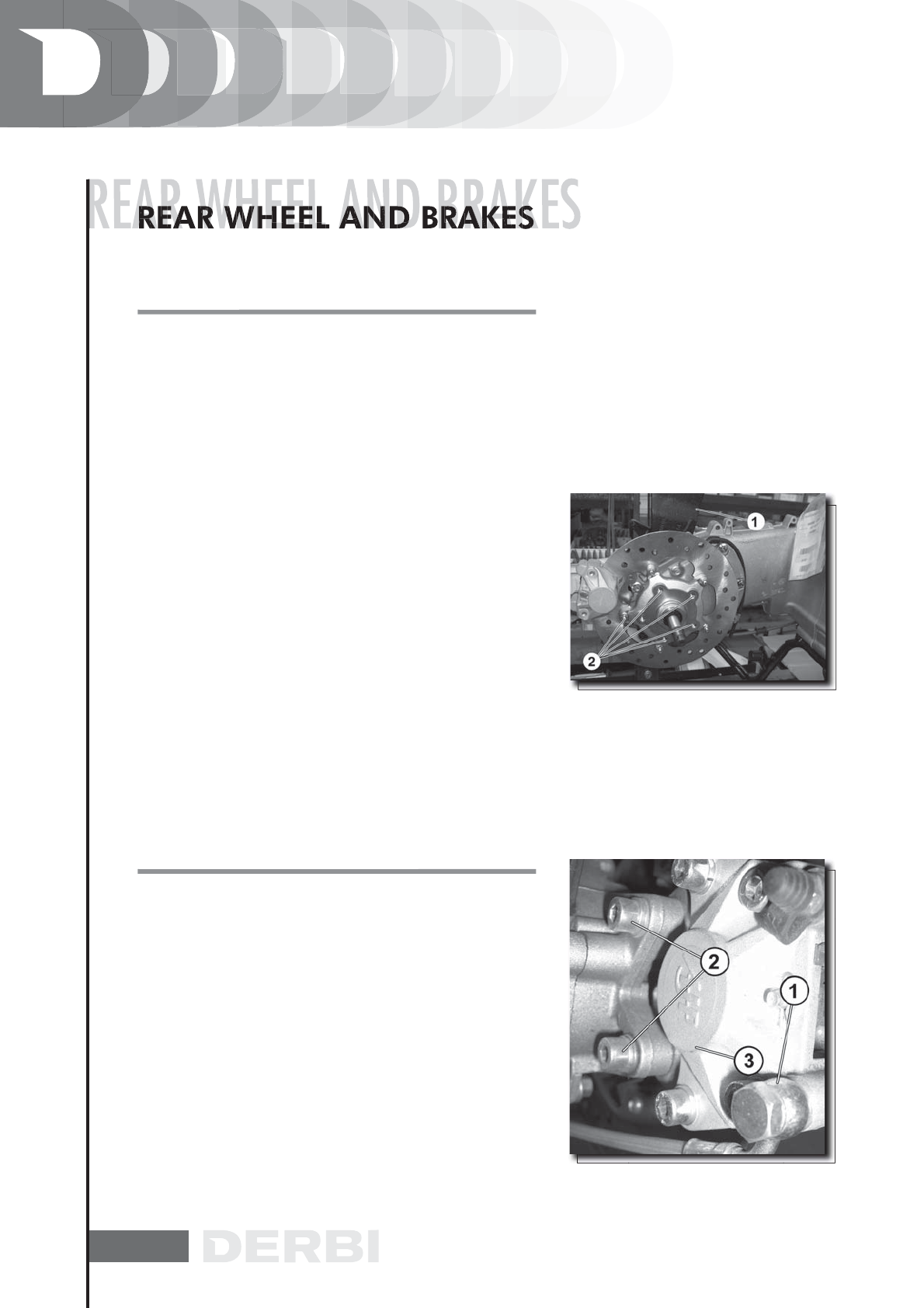

- Place the machine on the centre stand so that the rear wheel
is slightly raised.
- Remove the exhaust pipe.
- Remove the right-hand swinging arm support.
- Remove the shock absorber right-hand support bracket.
N.B.
KEEP THE LEFT-HAND ONE IN POSITION TO PREVENT THE
ENGINE FROM FALLING FROM THE CHASSIS (1).
- Remove the 5 wheel-secondary transmission output axle se-
curing devices.
- Remove the rear wheel.
DISMANTLING THE REAR DISK CALLIPER
- Loosen the bolt at the bottom end of the flexible brake hose
and tighten it slightly (1)
- Unscrew the Allen bolts securing the calliper to the support
plate. (2)
- Remove the brake calliper (3).
PRECAUTION
CLEAN OFF ANY SPILT BRAKE FLUID REMAINS IMMEDIATELY.
