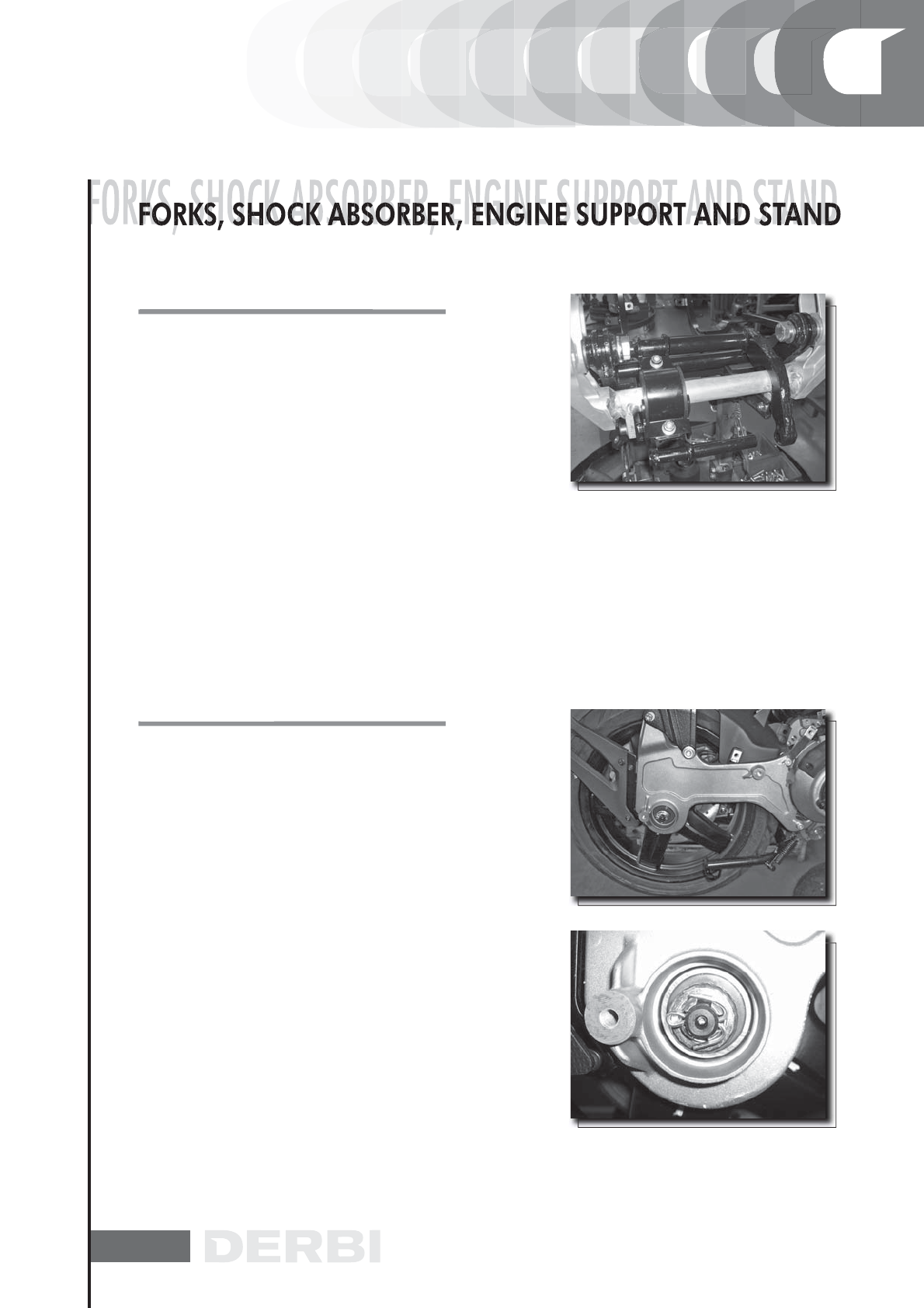

CHECKING THE SWINGING ARM
- Accurately grease the roller cages
-Insert the spacers
- Install the two halves with their respective bolts in the posi-
tion indicated in the picture.
- Install the bolt in the direction shown in the picture.
- Position the frame-side swing-arm with the protrusion fa-
cing the silent-block, as shown in the picture.
Recommended products
Grease for steering wheel bearings and pin seats
Lithium soap and zinc oxide grease NLG12 for the oscilla-
ting arm
EXHAUST BRACKET
REMOVAL
- Loosen and remove the lower shock-absorber fixing bolt
from the swing-arm bracket.
- Loosen the swing-arm fixing screws from the engine.
- Remove cotter pin and safety cap; Loosen wheel axle nut;
to prevent wheel rotation, apply rear brake.
- Remove swing-arm mounting bracket.
- Remove silencer assembly.
