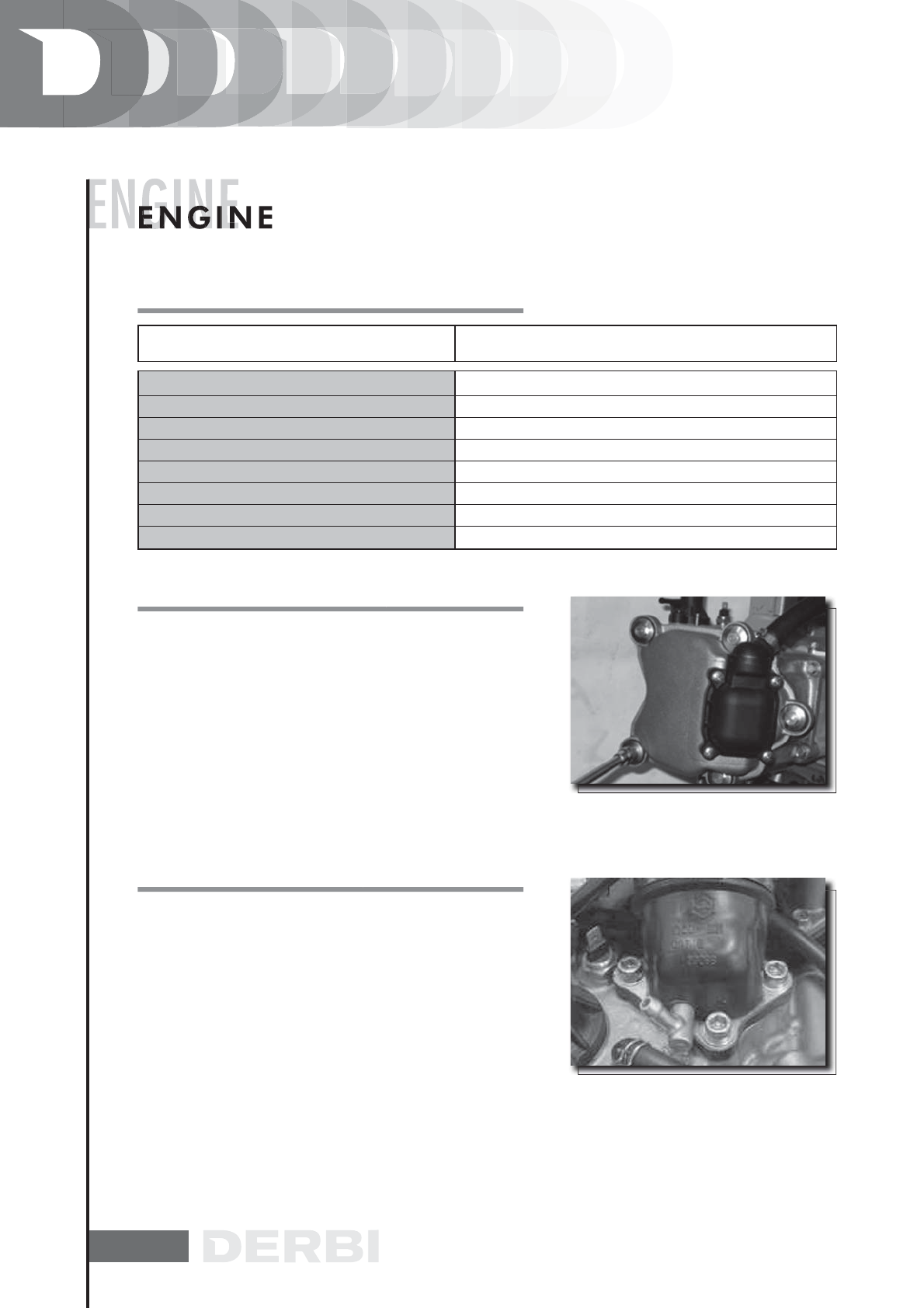

REFITTING THE ROCKER-ARMS COVER
- Reassemble the head cover by locking the 5 screws to the
prescribed torque.
- Pay attention to correct positioning of the gasket.
Locking torques (N*m)
Tappet cover screws 6÷7 Nm
REFITTING THE INTAKE MANIFOLD
- Install the intake manifold and tighten the 3 screws.
N.B.
FOR THE SPECIAL SCREWS OF VERSION 125CC, USE INSERTS
AND INSERT HOLDERS AVAILABLE ON THE MARKET.
Tappet cover screws
Spark plug
Tightener cap
Tightener screws
Containment bell screw
Balance weight screw
Plate screws
Sliding block screw
NAME
TORQUE IN Nm
REFITTING THE TIMING SYSTEM COMPONENTS
6÷7 Nm
12÷14 Nm
5÷6 Nm
11÷13 Nm
11÷15 Nm
7÷8,5Nm
4÷6 Nm
10÷14 Nm
REFITTING THE ROCKER ARMS COVER
REFITTING THE TIMING SYSTEM COMPONENTS
