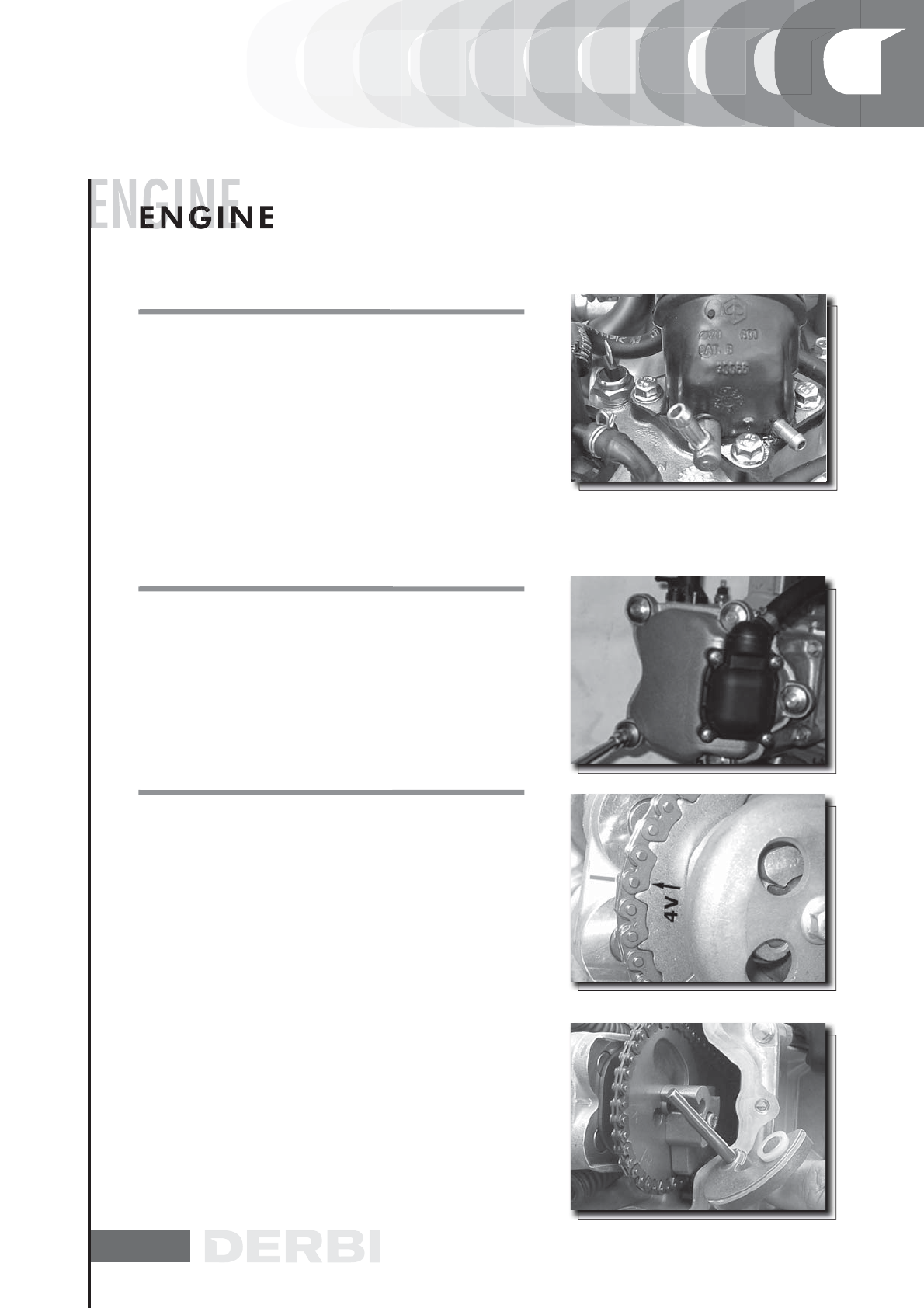

CYLINDER ASSY. AND TIMING SYSTEM
REMOVING THE INTAKE MANIFOLD
- Remove the flywheel cover as described in the Flywheel
cover chapter.
- Loosen the 3 screws and remove the intake manifold.
N.B.
VERSION 125 CC IS PROVIDED WITH ANTITAMPERING
SCREWS.
REMOVING THE ROCKER-ARMS COVER
Remove the 5 screws shown in the figure.
REMOVING THE TIMING SYSTEM DRIVE
- Remove all of the parts below: transmission cover, driving
pulley with belt, start-up pinion, oilsump with spring and by-
pass piston, oil pump pulley cover, O-Ring on the driving
shaft and pinion separating washer.
- Remove the tappet cover.
- Remove the central screw and the valve lifting mass stop
bell shown in the figure.
- Remove the return spring of the automatic valve lifting
mass, the valve lifting mass with relevant travel end washer.
