PMAC PCI-Lite Hardware Reference Manual
50 Connector Pinouts

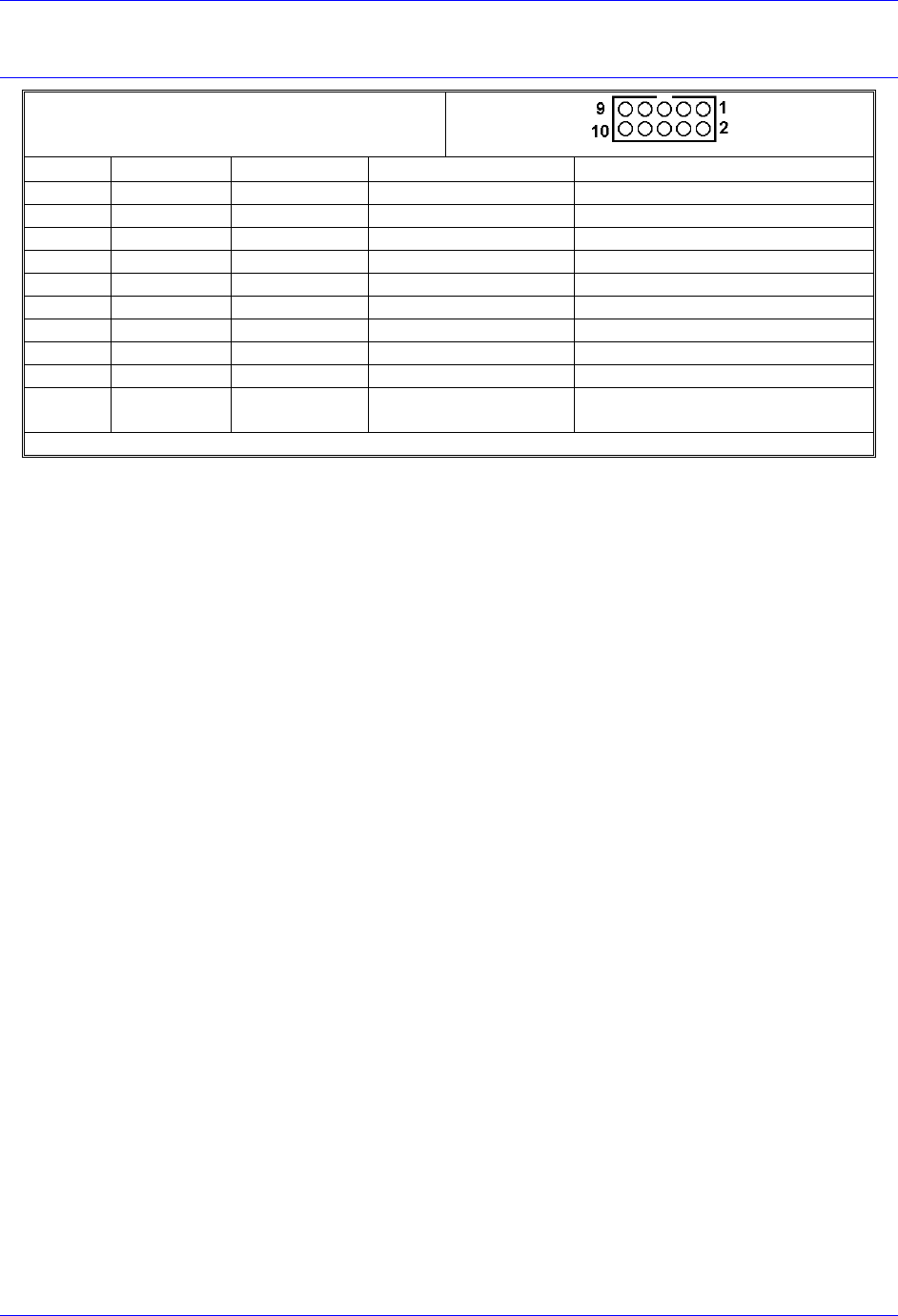

J6: Auxiliary I/O Port Connector
J6 JXIO (10-Pin Connector)
Front View
Pin # Symbol Function Description Notes
1 CHA1 Input Enc. A Ch. Pos. Axis #1 for resolver
2 CHB1 Input Enc. B Ch. Pos. Axis #1 for resolver
3 CHC1 Input Enc. C Ch. Pos. Axis #1 for resolver
4 CHA3 Input Enc. A Ch. Pos. Axis #3 for resolver
5 CHB3 Input Enc. B Ch. Pos. Axis #3 for resolver
6 CHC3 Input Enc. C Ch. Pos. Axis #3 for resolver
7 E63 Input Interrupt IR4 Interrupt from EXP BRD
8 E59 Input Interrupt IR5 Interrupt from EXP BRD
9 SCLK Output Encoder Clock Encoder sample rate
10 DCLK Output D to A, A to D Clock DAC and ADC clock for all
channels
This connector is used for miscellaneous I/O functions related to expansion cards that are used with PMAC.
