PMAC PCI-Lite Hardware Reference Manual

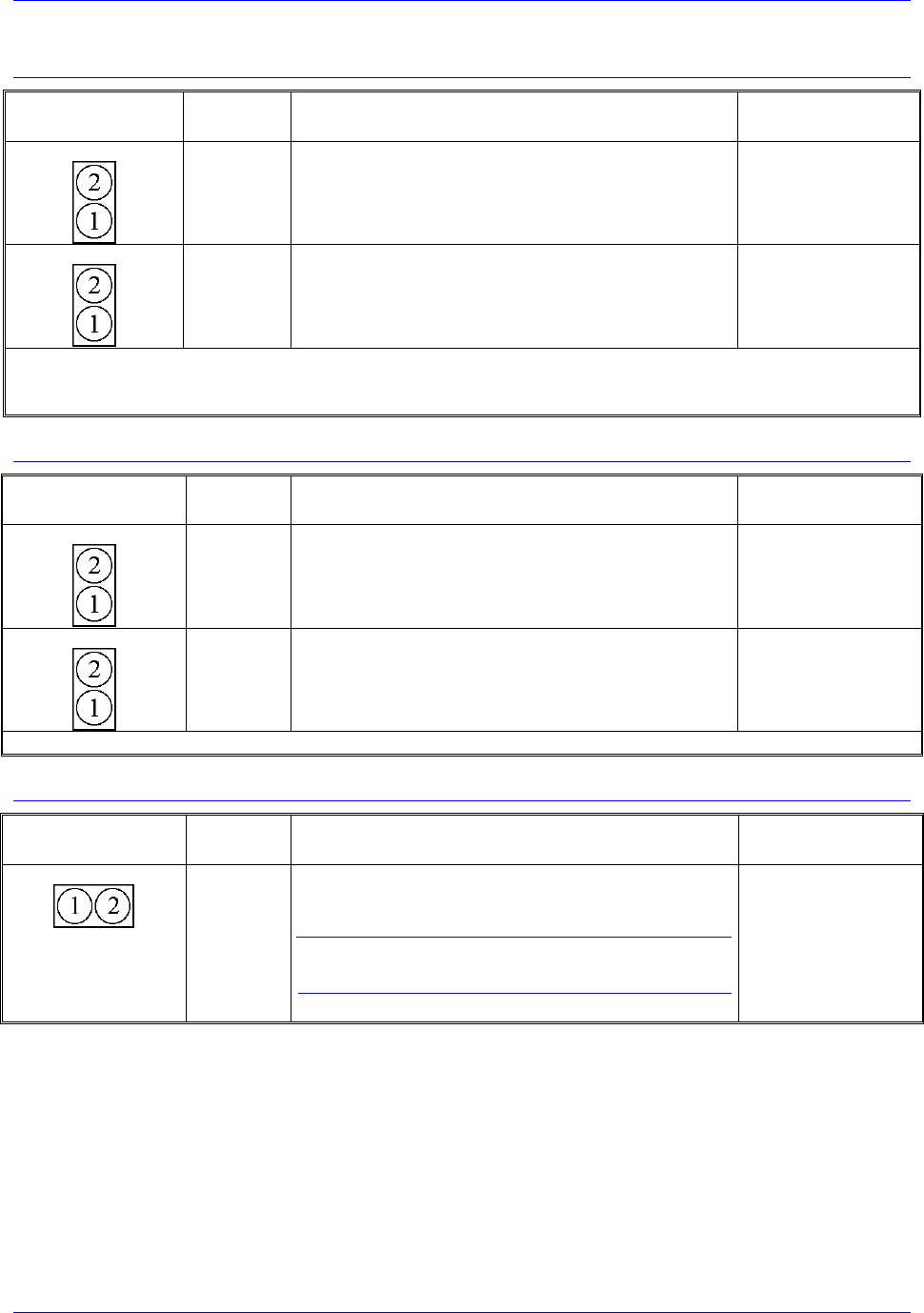

38 E-Point Jumper Descriptions
E72 - E73: Panel Analog Time Base Signal Enable
E Point and
Physical Layout
Location Description Default
E72
B9 Jump pin 1 to 2 to allow V-to-F converter FOUT
derived from Wiper input on J2 to connect to CHA4.
No jumper installed
E73
B9 Jump pin 1 to 2 to allow V-to-F converter FOUT/
derived from Wiper input on J2 to connect to CHA4/.
No jumper installed
Note: With these jumpers ON, no encoder should be wired into ENC4 on JMACH. E27 must connect pins
1 to 2 because these are single-ended inputs. Variable I915 should be set to 4 to create a positive voltage
(frequency) number in PMAC.
E74 - E75: Clock Output Control for External Interpolation
E Point and
Physical Layout
Location Description Default
E74
B9 Jump pin 1 to 2 to allow SCLK/ to output on CHC4/. No jumper installed
E75
B9 Jump pin 1 to 2 to allow SCLK to output on CHC4. No jumper installed
Note: SCLK out permits synchronous latching of analog encoder interpolators such as Acc-8D Option 8.
E85: Host-Supplied Analog Power Source Enable
E Point and
Physical Layout
Location Description Default
E85
A5 Jump pin 1 to pin 2 to allow A+14V to come from PC
bus. Ties amplifier and PMAC power supply together.
Defeats OPTO coupling.
Note:
If E85 is changed, E88 and E87 must also be changed.
See E90.
No jumper
