PMAC PCI Lite Hardware Reference Manual
E-Point Jumper Descriptions 37

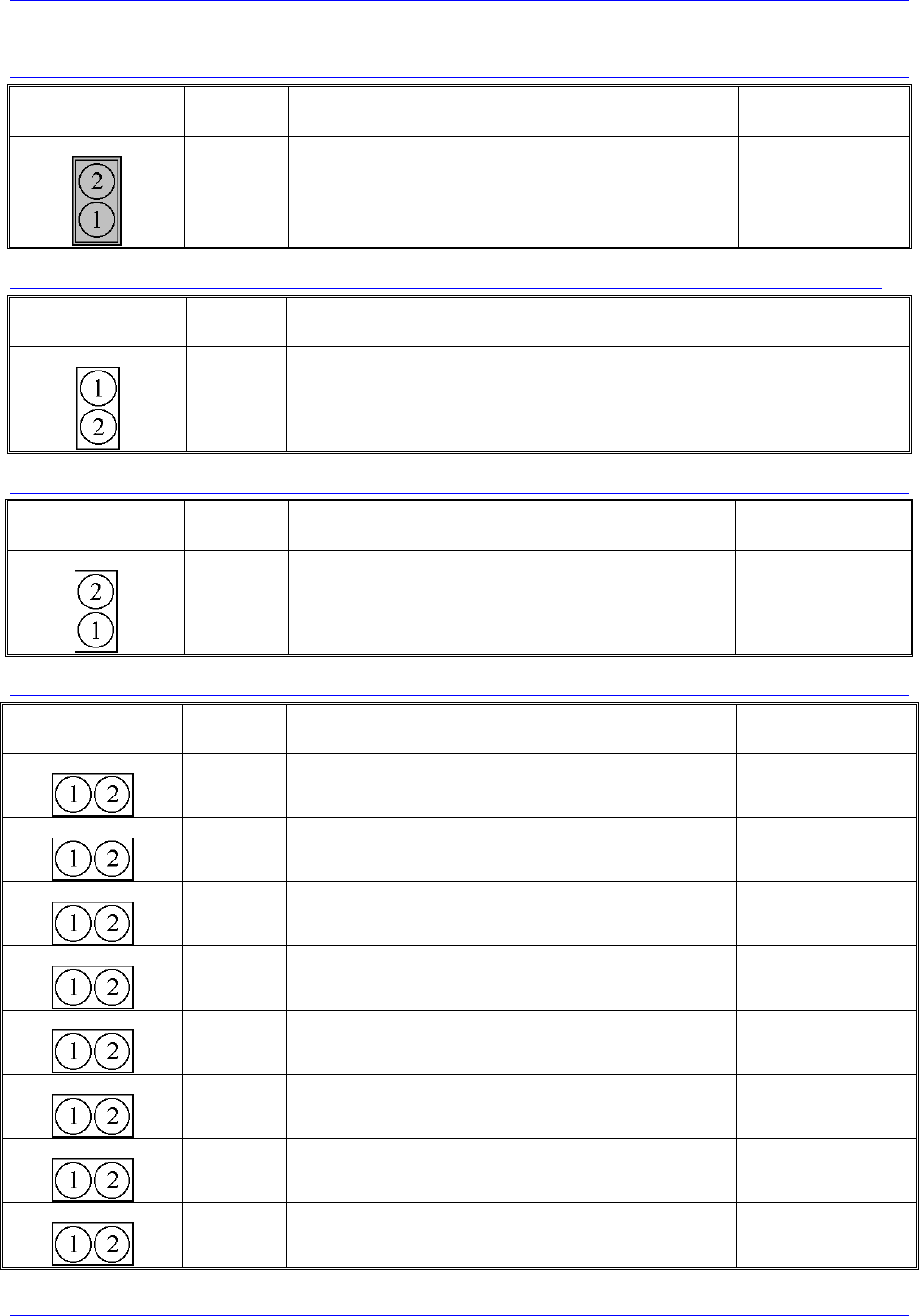

E49: Serial Communications Parity Control
E Point and
Physical Layout
Location Description Default
E49
C5 Jump pin 1 to 2 for no serial parity. Remove jumper for
odd serial parity.
Jumper installed
E50: Flash Save Enable/Disable
E Point and
Physical Layout
Locatio
n
Description Default
E50
C5 Jump pin 1 to 2 to enable save to flash memory.
Remove jumper to disable save to flash memory.
Jumper installed
E51: Normal/Re-Initializing Power-Up
E Point and
Physical Layout
Location Description Default
E51
B6 Jump pin 1 to 2 to re-initialize on power-up/reset.
Remove jumper for Normal power-up/reset.
No jumper installed
E55 - E65: Host Interrupt Signal Select
E Point and
Physical Layout
Location Description Default
E55
B6 Jump pin 1 to 2 to allow EQU4 to interrupt host-PC at
PMAC interrupt level IR7.
No jumper installed
E57
B6 Jump pin 1 to 2 to allow EQU3 to interrupt host-PC at
PMAC interrupt level IR7.
No jumper installed
E58
B6 Jump pin 1 to 2 to allow MI2 to interrupt host-PC at
PMAC interrupt level IR6.
No jumper installed
E59
B6 Jump pin 1 to 2 to allow Axis Expansion Int-0 to
interrupt host-PC at PMAC interrupt level IR6.
No jumper installed
E61
B6 Jump pin 1 to 2 to allow EQU2 to interrupt host-PC at
PMAC interrupt level IR6.
No jumper installed
E62
B7 Jump pin 1 to 2 to allow MI1 to interrupt host-PC at
PMAC interrupt level IR5.
No jumper installed
E63
B7 Jump pin 1 to 2 to allow Axis Expansion Int-1 to
interrupt host-PC at PMAC interrupt level IR5.
No jumper installed
E65
B7 Jump pin 1 to 2 to allow EQU1 to interrupt host-PC at
PMAC interrupt level IR5.
No jumper installed
