LEON-G100/G200 - System Integration Manual
GSM.G1-HW-09002-F3 Preliminary System description
Page 68 of 101
1.13 M2M Setup Schematic Example

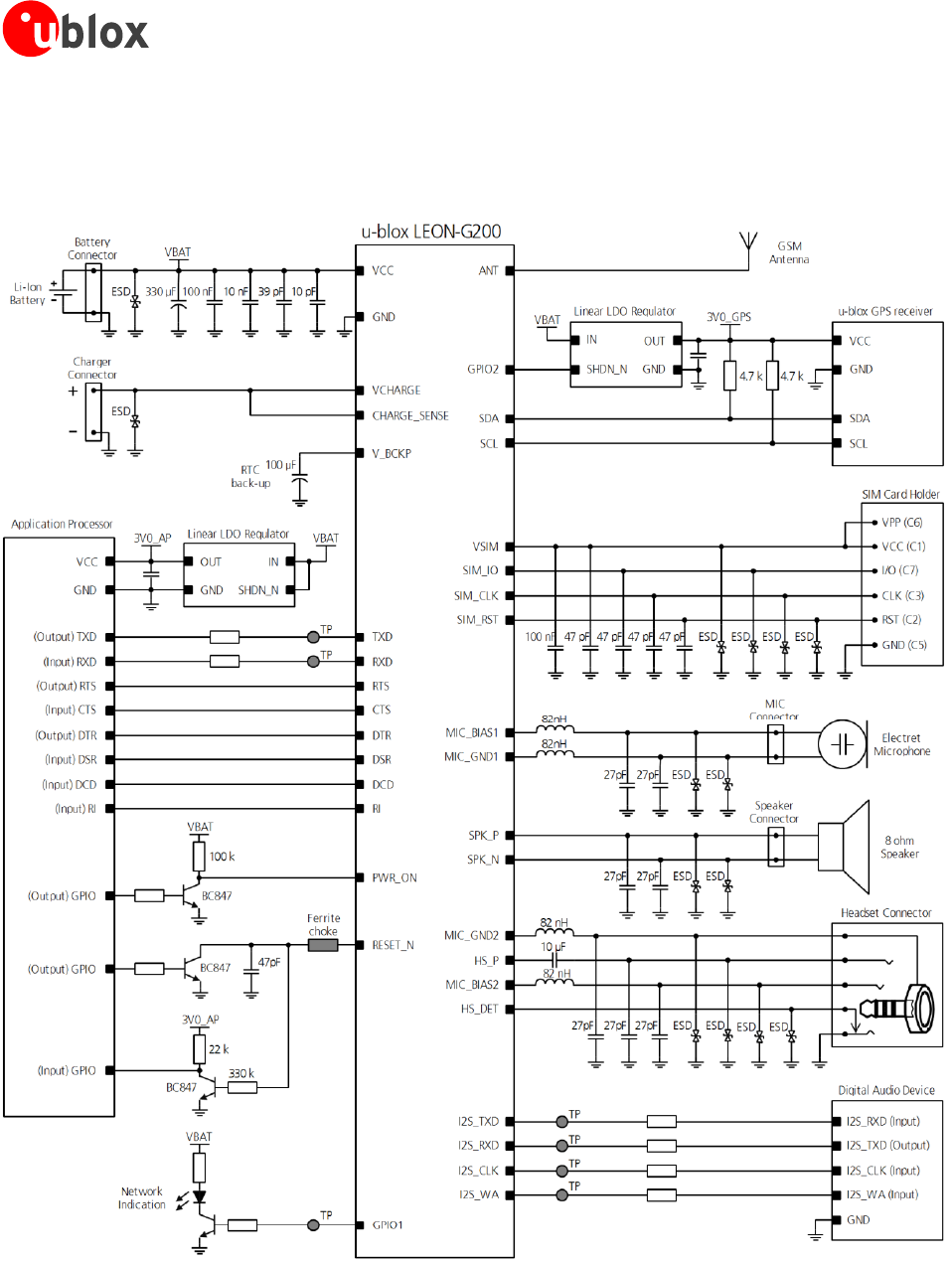

Figure 42 is an example of a schematic diagram where the LEON-G200 module is integrated into an application
board, using all the interfaces of the module.
Figure 42: Example of schematic diagram to integrate LEON-G200 module in an application board, using all the interfaces
