Reference Guide

11
 Allow 24 hours for the TEL adhesive seal to completely cure.
 Record the position and serial number of each applied TEL in a security log.

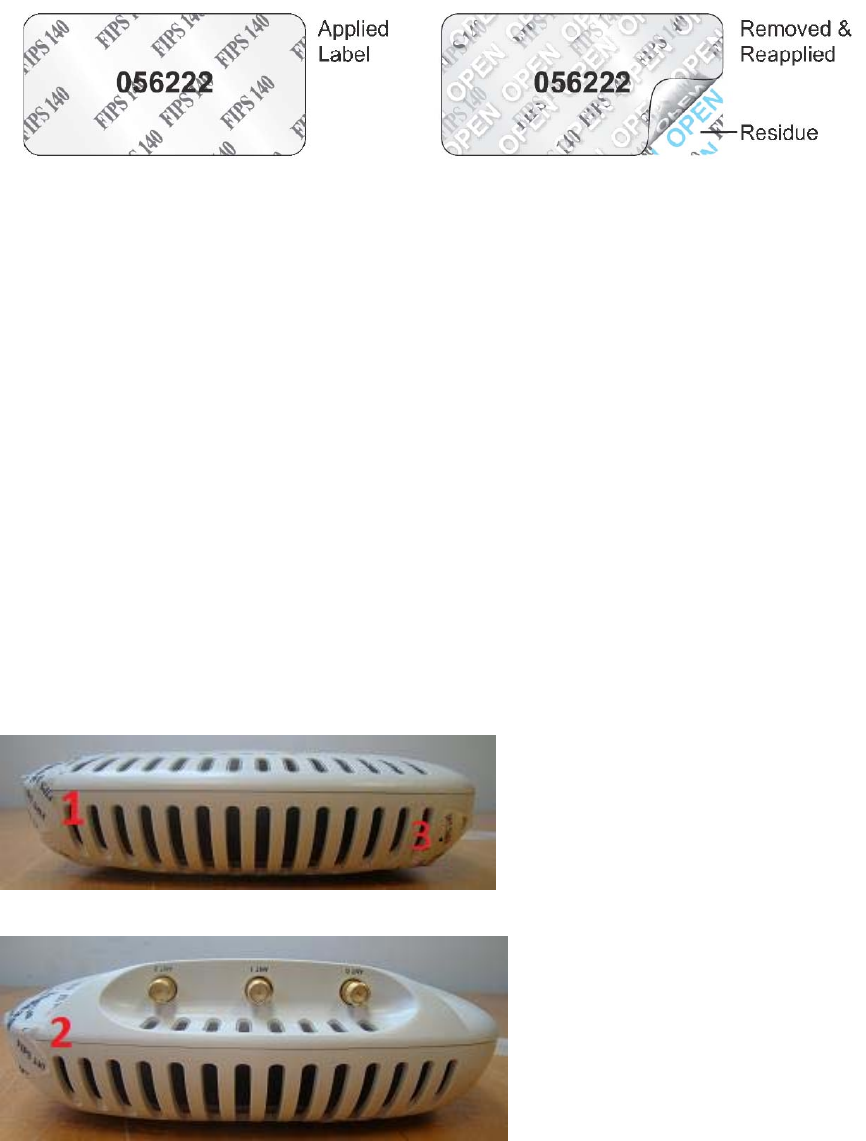

Once applied, the TELs included with the AP cannot be surreptitiously broken, removed or reapplied
without an obvious change in appearance:
Each TEL has a unique serial number to prevent replacement with similar label. To protect the device from
tampering, TELs should be applied by the Crypto Officer as pictured below:
3.2.2 AP-134 TEL Placement
This section displays all the TEL locations of the Aruba AP-134. The AP-134 requires a minimum of 5
TELs to be applied as follows:
3.2.2.1 To detect opening of the chassis cover:
 Spanning the bottom and top chassis covers and placed in the front left corner
 Spanning the bottom and top chassis covers and placed in the back left corner
 Spanning the chassis screw on the bottom left corner
 Spanning the chassis screw on the bottom right corner
3.2.2.2 To detect access to restricted ports
 Spanning the serial port
Following is the TEL placement for the AP-134:
Figure 1 : AP-134 Front view
Figure 2 - AP-134 Back View
