User's Manual

14 Dell Printer Management Pack Operations
To access the Complete Diagram View:
1
In the Operations Console , click Monitoring .
2 In the Monitoring pane on the left side, navigate to the Dell folder and
click the folder to display the different views.
3 Click Diagram View  Complete Diagram View.
4 Select a component in the diagram to view its details in the
Detail View pane.
Dell Printer Group View

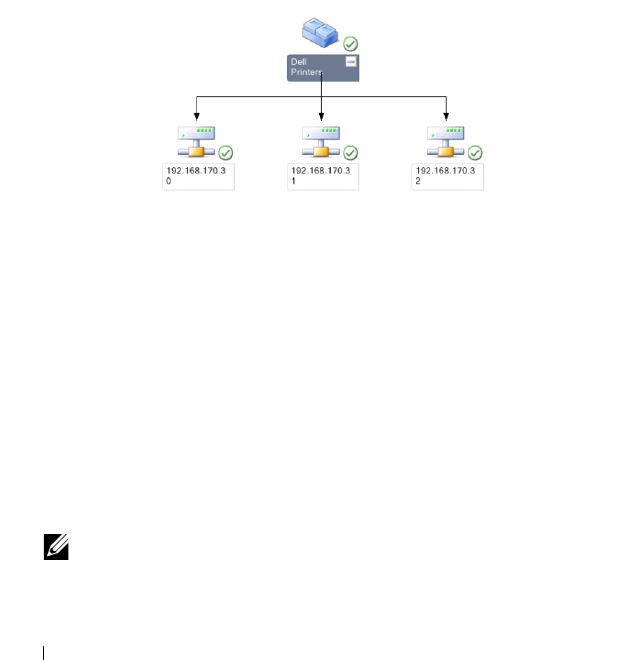

Figure 2-3. Dell Printer Group Diagram
The Printer Group view offers a graphical representation of all Dell Printers that
SCOM/SCE manages and allows you to expand and verify the status of
individual printers in the diagram. The root node for this view is the
Dell
Printers
group.
To access the Printer Group View:
1
In the Operations Console , click Monitoring .
2 In the Monitoring pane on the left side, navigate to the Dell folder and
click the folder to display the different views.
3 Click Diagram Views  Printer Group.
4 Select a printer in the diagram to view its details in the Detail View pane.
NOTE: For security reasons, SCOM or SCE displays the Community String
attribute as an encoded string value.
