Upgrade mss A-region when mss is running in B-region:
./smarttool -um /dev/ <platform>_SMF_MSS_v1.41_A_region.bin
1 Copy all the binaries needed for the upgrade into a local directory.

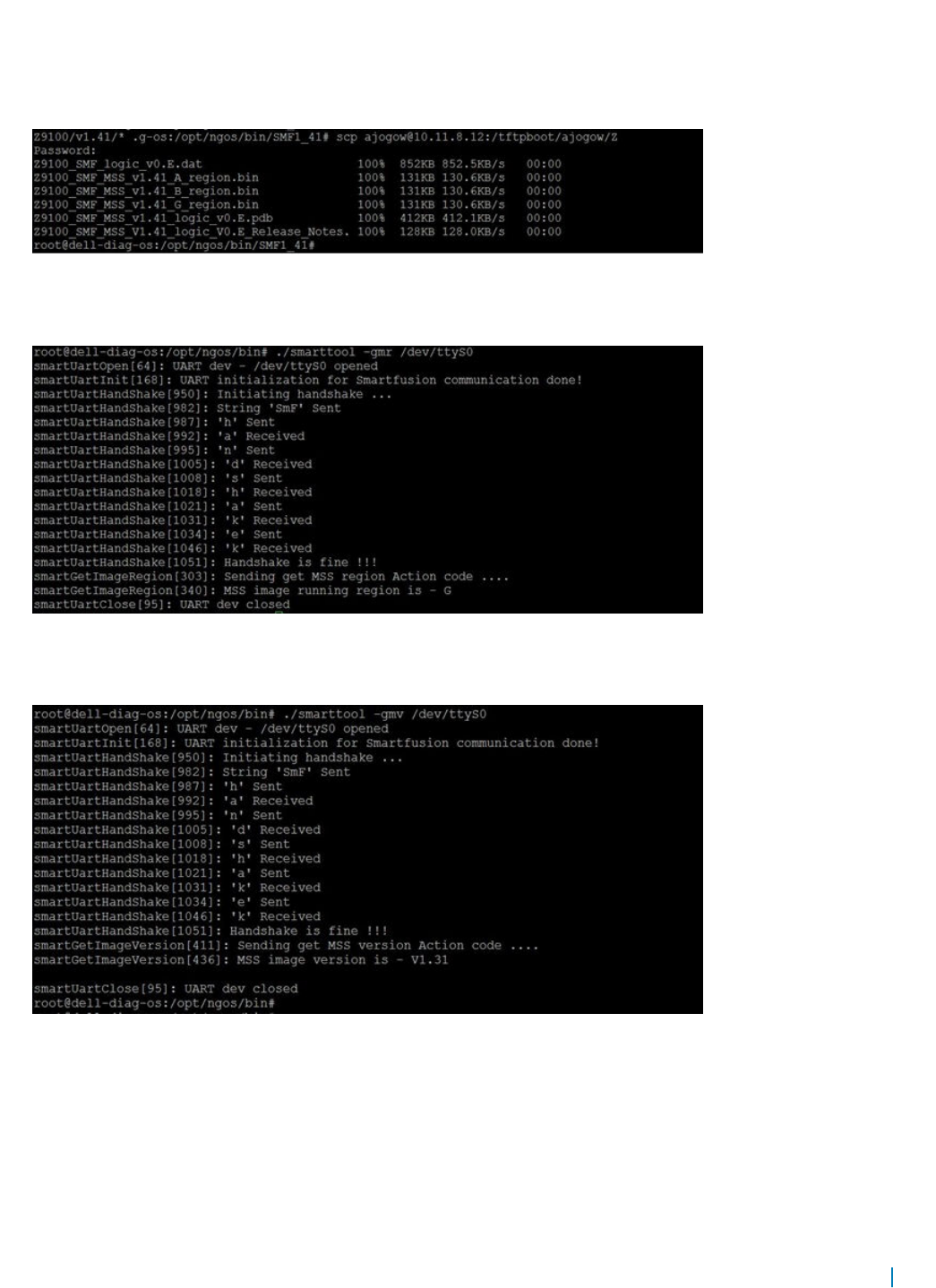

Figure 8. Copy All Needed Binaries
2 Check the MSS region using the smarttool –gmr /dev/ttyS0 command.
Figure 9. Check the MSS Region
3 Check the MSS version using smarttool –gmv /dev/ttyS0 command.
Figure 10. Check the MSS Version
