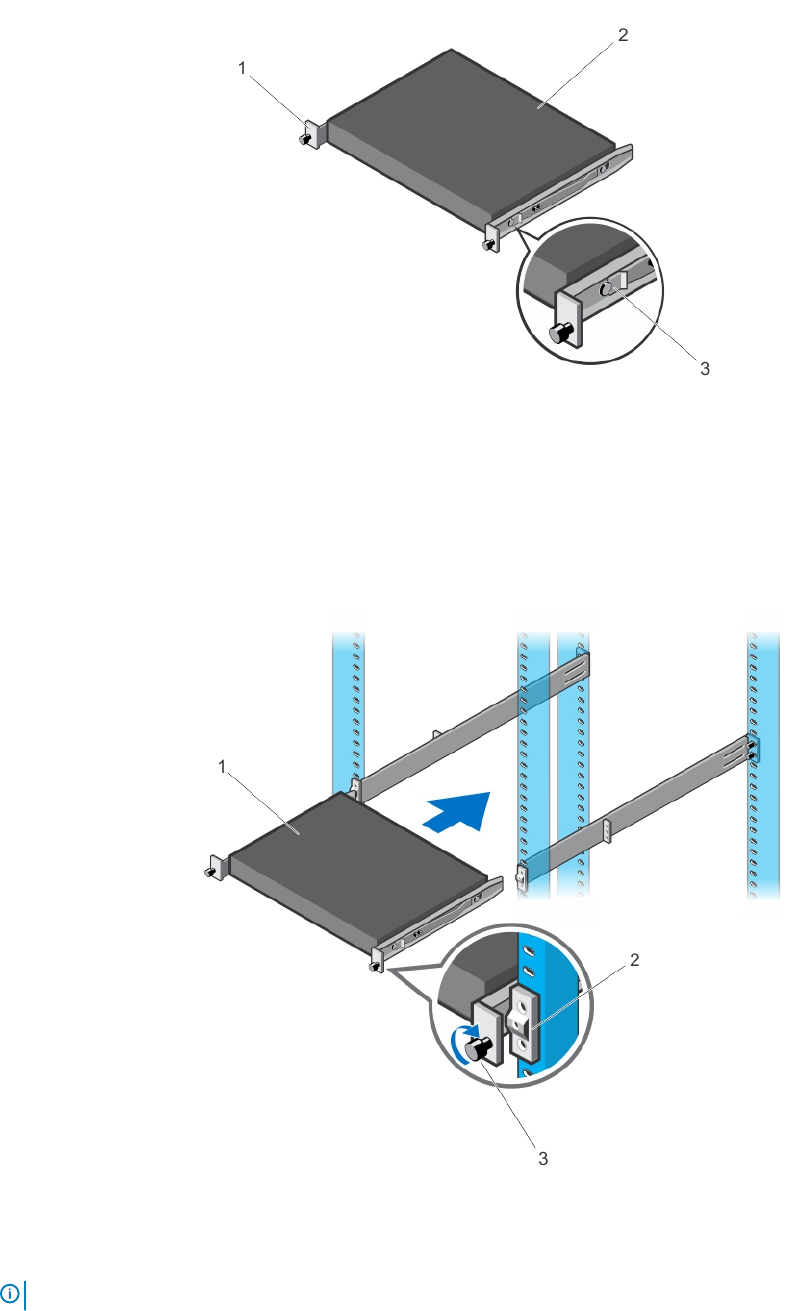

Figure 9. Switch rails attachment
2 After you have installed both switch rails, line them up on the previously mounted Ready-Rails and slide the switch in until it is ush
with front of rack.
About three inches before you fully insert your switch, the rail locking feature engages to keep the switch from inadvertently sliding
out of the rack and falling.
Figure 10. Front rack installation
NOTE
: Do not the use the mounted ReadyRails as a shelf or a workplace.
Install the S3048–ON 21
