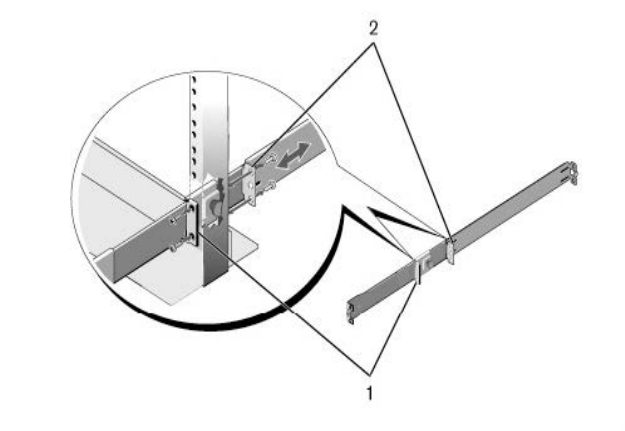

Figure 7. Two-post center-mount conguration
2 Slide the back bracket towards the post. Secure it to the post ange with two user-supplied screws, to item 2.
3 Repeat this procedure for the second rail.
Four-post threaded installation
1 For this conguration, remove the ange ear castings from each end of the ReadyRails assemblies.
To remove the two screws from each ange ear and remove each casting, use a Torx driver, item 1. Retain the castings for future rack
requirements.
Install the S3048–ON
19
